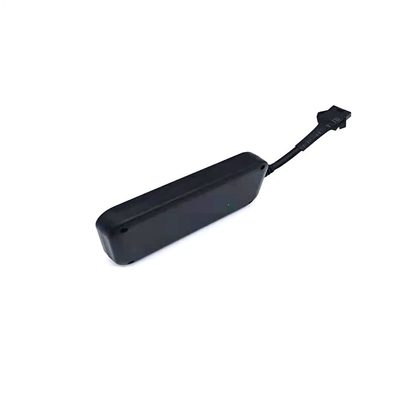

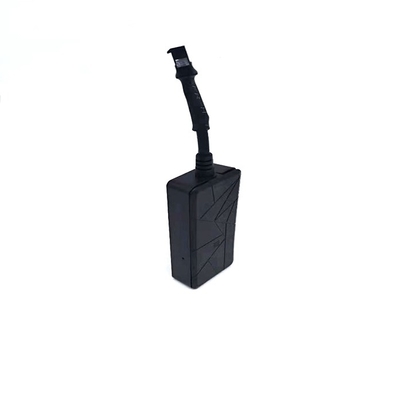

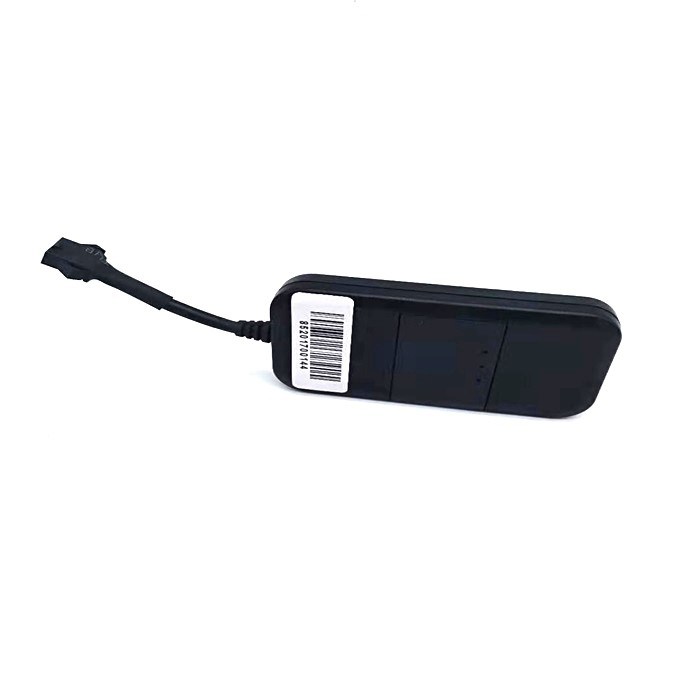

MTK60M 4G GSM GPRS Real Time GPS Tracker For Vehicle

Cheapest 4G Mini Size GPS Tracker For Vehicle Real-Time Tracking GSM/GPRS

GPS Tracker Parameters:

Multi-Mode Positioning: BD GPS LBS

Product accessories

2. 1.1 Power cable

3. 1.2 User Guide

4. 1.3 Microphone (optional)

5. 1.4 SOS button (optional)

6. 1.5 Relay (optional)

7. 2. Product Features

8. 2.1 Support global gsm850/900/1800/1900mhz, wcdma850/900/1900/2100 Mhz network frequency band;

9. 2.2 Wide operating input voltage range: 9-80VDC;

10. 2.3 GPS / LBS real-time positioning, support the computer to track the car, mobile search vehicles, and WeChat search vehicles;

11. 2.4 Support SMS text query location information;

12. 2.5 ACC ignition signal is detected, the vehicle prompted the state;

13. 2.6 Built-in vibration sensor, to achieve intelligent vehicle anti-theft;

14. 2.7 Able to set a specific number for SOS alarm and burglar alarm;

15. 2.8 SOS switch button for the emergency call for help;

16. 2.9 Internal/external microphone and speakers, remote audio monitoring and voice intercom function (optional);

17. 2.10 Built-in backup battery, to achieve illegal cutting wire alarm (optional);

18. 2.11 Built-in OBD2 remote vehicle diagnostics management system (optional);

19. 2.12 Platform supports up to 180 days historical route track;

20. 2.13 Platform supports electronic fence, out of the regional alarm;

21. 2.14 Platform supports deviate planning route alarm;

22. 2.15 Platform supports Overspeed alarm;

23. 2.16 Platform supports serious collision warning (optional);

24. 2.17 Platform Support rollover warning (optional);

25. 2.18 Platform supports for report output;

26. 2.19 Support WEB send arm and disarm command;

27. 2.20 Support RFID auto-sensing arm and disarm (optional); Installation Notes

Cheapest 4G Mini Size GPS Tracker For Vehicle Real-Time Tracking GSM/GPRS

Frequently used commands:

GPS Tracker Applications And Where you install it.

Terminal connection:

male switch, Female switch

Red(positive) Black (Negative)

1. red wire connect positive(+),black wire connect negative(-)

2. power input connector to power positive and negative connectors( make sure connect the right connector)

GPS Tracker Main Functions:

Indicators

3.5.2 Yellow indicator light -GSM

Proper Use of The Product

Install→Power on→Settings→Register

Installation: GPS antenna should be facing toward the sky, above the mounting location, must be no material (such as metal, window film) absorption of electromagnetic waves sheltered place.

Boot: Insert the SIM card correctly, connect the wire according to the diagram, then turn on the power.

Setting: Must be done, or can not do other operations, mobile phone owners send text messages to set the owner number and a specific number to the terminal SIM card.

Registration: The registration method is a different subject to dealer platforms, please consult your dealer.

Instructions

Note: The symbol is separated by a comma, the following function parameters instruction comma is in English input state.

1. Real-Time Positioning:

GPS Tracker Device will get the real-time position message and upload all status to the server system.

And will display the position on the map. you can click any of the points to know the name. locating time. and acc status. speed

GPS Time, direction, and so on.

2. Vibration alarm:

After setting the command of vibration by SMS. When it moves there will be a vibration alarm message.

3.  Power-off alarm:

If the power supply of GPS Tracker is cut off or GPS Tracker will send the alarm message to the server or bonded Phone number.

4.  Remote Car Lock

If an illegal ignition alarm receives from GPS Tracker, you can remotely cut off the vehicle circuit, so that to avoid being driven away.

2.1 Installation for the Car/Motorcycle/E-bike

The GPS tracker must be installed under professional personnel.

Note:

1) Please install the device in the hidden place as follows:

Under Front windshield；

In the front instrument panel；

Under back windshield；

Cheapest 4G Mini Size GPS Tracker For Vehicle Real-Time Tracking GSM/GPRS

Other Models:

4G GPS tracker

FAQ:

How to use this GPS tracker?

1. Input SIM Card inside the GPS Tracker product.

2. Connecting GPS Tracker with power supply.

3.  Put a GPS Tracker device near a window or some open area waiting for signal ready.

4.  When all indicators lighted and flashed normally means GPS Tracker works. now send SMS command to

communication network, you will receive a GPS Tracker status report by SMS.
