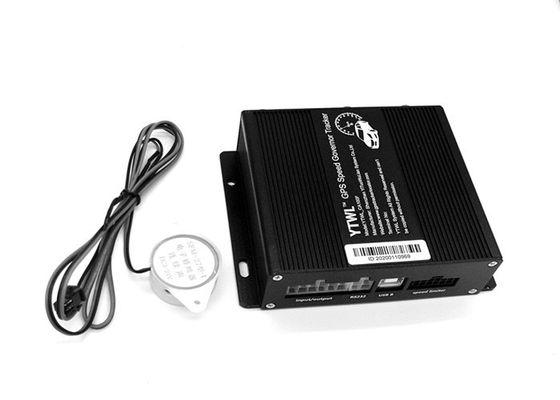

Ethiopia Standard Speed Limiter For Limiting Car Truck Speed To 30KM/H with Printer

Ethiopia Standard Speed Limiter For Limiting Car Truck Speed To 30KM/H with Printer
Ethiopia Standard Speed Limiter For Limiting Car Truck Speed To 30KM/H with Printer Ethiopia Standard Speed Limiter For Limiting Car Truck Speed To 30KM/H with Printer Ethiopia Standard Speed Limiter For Limiting Car Truck Speed To 30KM/H with Printer

Large Image :  Ethiopia Standard Speed Limiter For Limiting Car Truck Speed To 30KM/H with Printer Get Best Price

Product Details:
Place of Origin: China
Brand Name: cartrack
Certification: CE/ROHS/FCC/SGS
Model Number: CA100F
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: negotiation
Packaging Details: Packed in carton firstly
Delivery Time: 1-10 working days after received your payment
Payment Terms: T/T or western Union or paypal
Supply Ability: 100,000pcs per month
Detailed Product Description
Product Name: Vehicle Speed Limiter Processing Chip: ARM
Positioning And Tracking: Timely Product Accessory:: Extension Wire
Storage Temp.: -40°C To +85°C Humidity: 5%--95% Non-condensing
Operation Temp.: -20°C To +70°C Function: Controlling Speed, Vehicle Speed Limiter
GPS Accuracy: 5 M
High Light:

vehicle gps tracking device

,

car gps tracker device



Ethiopia Standard Speed Limiter For Limiting Car Truck Speed To 30KM/H with Printer



1. Speed Limiter GPS System Start up

Put the SIM card in place and installed the tracker in the speed limiter, the red indicator is on. About 40 seconds, the unit will begin to work and acquire the GSM signals as well as the GPS signals, and the red indicator will keep flashing every 2 seconds when the GSM module is no communication. When the blue indicator is light, the unit has been located.



2. Speed Limiter GPS System Main functions



  • ​Positioning and Tracking: Through the on-line Positioning Platform or the cell phone to locates at times, and get the working status. You can choose the Positioning Platform by yourself.
  • Triggering Emergency Alarm: When there is a emergency happened on the vehicle, you can put on the button and the installed unit will send out alarm to the authorized numbers.
  • Remote controlling oil and circuit: you can control the oil and circuit via the unit by SMS in anywhere and anytime.
  • Remote Monitoring: In anywhere and anytime, call the phone number in the unit, when it connects, you can monitor the sound around 5 meter.
  • Movement Alert: Send SMS to the unit to start the movement alert function. When the vehicle is moving, the unit will send the movement alert to all authorized numbers.
  • Overspeed Alert: Send SMS to the unit to start the movement alert function. When the vehicle is overspeed, the unit will send the overspeed alert to all authorized numbers.
  • Geo-fence: Set up a geo-fence for the unit to restrict its movements within a district. The unit will send the message to all authorized numbers when it breaches the district.
  • Restart the unit: send SMS to resume the default of unit.
  • Auto Track: You can set up auto track by SMS or on-line positioning platform.
  • Mileage statistics; ACC checking; cutting off power and alarm.





3 Product Specifications



Color Black Application free android and IOS app
Input Fuse 5A CPU TI:MSP430F5419(100MHz)
Battery Lithium battery :400mA( working time is about 3.5 hours) Warranty 2 years
Item Name Top selling shine Function camera gps fleet tracker
Working Temperature Anna Shi MOQ 5 Pieces
GSM Module GSM Module:SIM5320
Band:850/900/1800/1900/2100MHz,
Tally with: GSM phase 2/2+
-Class 4 (2W @ 850/900MHz)
-Class 1 (1W @ 1800/1900MHz)
Max RF Output: 33.0dBm±2dBm
Dynamic Input Range: -15 ~ -102dBm
Receiving delicacy: Class RBER≤2%(-102dBm)
Frequency Stability: > 2.5ppm
Max Frequency Deviation: ±0.1ppm
RMS Deviation: ≤5deg
GPS Module GPS chip set: SiRF Star III
Frequency: L1, 1575.42 MHz
Number of Channel: 20
Reacquisition: 0.1 sec, average
Hot boot: 2 sec., average
Warm boot: 38 sec., average
Cold boot: 44 sec., average
Altitude limit: 18000 m
Velocity limit: 515 m/s
Speed Limiter GPRS requirement
  • GPRS Of speed limiter shall have a minimum of Multi-slot Class 8
  • GPRS Of speed limiter shall Support at minimum four coding schemes (CS-1, CS2, CS-3 and CS-4) download speed at least speed 85.6kbps upload speed is at least 21.4kbps
  • Positioning Accuracy of GPS shall be Less than 5 meters at 20 RMS
  • GSM Frequency of the speed limiter GPS shall be based on national telecommunication requirement
Input I/O 8 I/O input/output Port
1 main power check
1 port use to check the engine ( ACC check)
1 port use to SOS
1 analog Input port( Fuel sensor)
1 Output port ( Car engine control )
3 Extend ports ( Input/Output control by software)



























4. Speed Limiter  Requirement

Ethiopia Standard Speed Limiter For Limiting Car Truck Speed To 30KM/H with Printer



  1. For the purpose of anti-tampering of the setting of the "set speed" of a speed limiter device, the connection points on a speed limiter device for adjustment of "set speed" shall be properly sealed and protected from unauthorized adjustment.
  2. The speed limiter function or road speed limiter shall be EMCcompatible or shall have Anti-Jammer mechanism
  3. The speed limiter function or the speed limiter device shall allow normal accelerator control for the purpose of gear changing
  4. The speed limiting function shall be performed progressively in such a mariner that excessive juddering or discomfort is not caused.
  5. The speed limiter function or the road speed limiter shall not cause uncontrolled engine power
  6. The speed limiter function shall be independent of the condition or soundness of the speedometer

5.Speed Limiter Attention

Ethiopia Standard Speed Limiter For Limiting Car Truck Speed To 30KM/H with Printer



  1. Make sure to read this manual carefully before using the speed limiter
  2. Please insert the SIM card before installing, and make sure the SIM card has no password, otherwise the tracker will not work normally ;
  3. Please make sure that all the cables of the speed limiter has been connected rightly, and then connect the tracker to host power. Must not install or take down the tracker when it is power on. If you found any troubles or omissions about the connections of cables, please cut off power first, otherwise you will easily damage the tracker
  4. The host of GPS tracker is a low-power wireless transmitter and receiver. It receives and sends radio frequency signal when it is working.





6. Speed Limiter Technical Parameters:

Ethiopia Standard Speed Limiter For Limiting Car Truck Speed To 30KM/H with Printer



Item Parameters
Overall Size 20.0 X 9.2 X 4.5 CM
Host Net Weight 0.4 KG
Processing chip STC
Speed Limiting Zone 20-200 Km/H
Speed Limiting Deviation ±5Km/H
Mechanical Bearing Capacity 400N
Working Voltage 9-36 V
Rated Power Consumption <0.3 W
Working Current <60 mA




7  Speed Limiter TESTS:



  • The speed limiter device should be approved as a device alone when it meets the requirements of clause 8.3 and 8.4.When it is intended for a specific vehicle model, it should meet the requirements of clause 8.6.
  • Five samples of speed limiter device shall be provided - four samples for the performance and endurance test described in clause 8.3 and 8.4 and one sample as fitted on the vehicle for carrying out.the tests prescribed in clause 8.5. In the case of
    add-on or on-board system built in the vehicle, the involved system and its components should be provided separately for the performance and endurance tests.
  • The speed limiter shall be visually examined for workmanship, finish, marking and general requirements mentioned in clause 4 pertaining to the components alone
  • The speed limiter shall be connected to the rated voltage. The speed limiter device shall be coupled to a suitable test rig and tested for its function viz. limiting the speed at the set value. The maximum current consumption is noted. The maximum current of each type of speed limiter device shall not exceed the values specified by the manufacturer.
Ethiopia Standard Speed Limiter For Limiting Car Truck Speed To 30KM/H with Printer 0Ethiopia Standard Speed Limiter For Limiting Car Truck Speed To 30KM/H with Printer 1
