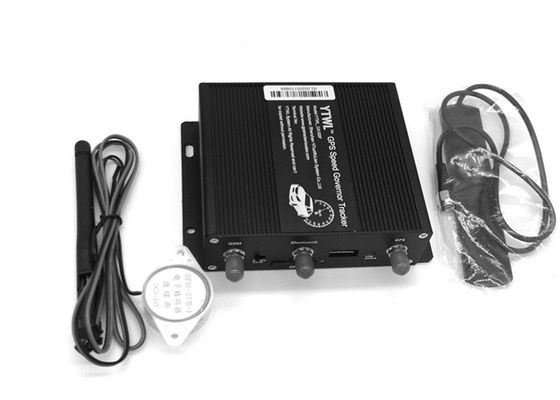

YTWL_CA100F ES6413/2019 Standard Speed Governor For Limiting Car Truck Speed

I'm Online Chat Now
Certification
China SHENZHEN YITUOWULIAN SYSTEM CO.,LTD certification
China SHENZHEN YITUOWULIAN SYSTEM CO.,LTD certification
We are very satisfied with your CA-V1 and CA-V1, CA-V6W for professional customers, CA-V6W is a very good product on the motorcycle,thanks!

—— Touya_ra

now we already used your company CA-V6 more than 2000Pcs, thanks for your company best support, we will expend this business in all of the Kenya

—— Nancy Saruni

your device CA-V1 is very good for our customer project, it is so proffesional , we can use in refrigerator car which can test the temperature ,thanks

—— Rajesmay

YTWL_CA100F ES6413/2019 Standard Speed Governor For Limiting Car Truck Speed

YTWL_CA100F ES6413/2019 Standard Speed Governor For Limiting Car Truck Speed
YTWL_CA100F ES6413/2019 Standard Speed Governor For Limiting Car Truck Speed YTWL_CA100F ES6413/2019 Standard Speed Governor For Limiting Car Truck Speed YTWL_CA100F ES6413/2019 Standard Speed Governor For Limiting Car Truck Speed

Large Image :  YTWL_CA100F ES6413/2019 Standard Speed Governor For Limiting Car Truck Speed Get Best Price

Product Details:
Place of Origin: China
Brand Name: cartrack
Certification: CE/ROHS/FCC/SGS
Model Number: CA100F
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: negotiation
Packaging Details: Packed in carton firstly
Delivery Time: 1-10 working days after received your payment
Payment Terms: T/T or western Union or paypal
Supply Ability: 100,000pcs per month
Detailed Product Description
Product Name: Vehicle Speed Limiter Processing Chip: ARM
Positioning And Tracking: Timely Product Accessory:: Extension Wire
Remote Monitoring: Yes Material: Steel
Upgrade: Send SMS Function: Controlling Speed, Vehicle Speed Limiter
High Light:

vehicle gps tracking device

,

car gps tracker device



YTWL_CA100F ES6413/2019 Standard Speed Governor For Limiting Car Truck Speed



1. Speed Limiter Recording and Tracking

  1. The recorder shall incorporate a combination of an onboard and off-board mechanism for recording and storing the speed of the vehicle.
  2. Memory capacity of the speed limiter device shall have a minimum capacity of saving 5,000 blind data
  3. The speed limiting system shall incorporate a mechanism for recording the speed of the vehicle of the last 24 hours, which speed shall be date (day, month and year) and time related.
  4. Speed limiter device shall provide at minimum date (day, month and year) and time related, location and speed information
  5. The speed limiting system shall upload the data at not more than 60 seconds interval.

2 Product Specifications



Color Black Application free android and IOS app
Input Fuse 5A CPU TI:MSP430F5419(100MHz)
Battery Lithium battery :400mA( working time is about 3.5 hours) Warranty 2 years
Item Name Top selling shine Function camera gps fleet tracker
Working Temperature Anna Shi MOQ 5 Pieces
GSM Module GSM Module:SIM5320
Band:850/900/1800/1900/2100MHz,
Tally with: GSM phase 2/2+
-Class 4 (2W @ 850/900MHz)
-Class 1 (1W @ 1800/1900MHz)
Max RF Output: 33.0dBm±2dBm
Dynamic Input Range: -15 ~ -102dBm
Receiving delicacy: Class RBER≤2%(-102dBm)
Frequency Stability: > 2.5ppm
Max Frequency Deviation: ±0.1ppm
RMS Deviation: ≤5deg
GPS Module GPS chip set: SiRF Star III
Frequency: L1, 1575.42 MHz
Number of Channel: 20
Reacquisition: 0.1 sec, average
Hot boot: 2 sec., average
Warm boot: 38 sec., average
Cold boot: 44 sec., average
Altitude limit: 18000 m
Velocity limit: 515 m/s
Speed Limiter GPRS requirement
  • GPRS Of speed limiter shall have a minimum of Multi-slot Class 8
  • GPRS Of speed limiter shall Support at minimum four coding schemes (CS-1, CS2, CS-3 and CS-4) download speed at least speed 85.6kbps upload speed is at least 21.4kbps
  • Positioning Accuracy of GPS shall be Less than 5 meters at 20 RMS
  • GSM Frequency of the speed limiter GPS shall be based on national telecommunication requirement
Input I/O 8 I/O input/output Port
1 main power check
1 port use to check the engine ( ACC check)
1 port use to SOS
1 analog Input port( Fuel sensor)
1 Output port ( Car engine control )
3 Extend ports ( Input/Output control by software)



























3. Speed Limiter  Requirement

YTWL_CA100F ES6413/2019 Standard Speed Governor For Limiting Car Truck Speed



  1. For the purpose of anti-tampering of the setting of the "set speed" of a speed limiter device, the connection points on a speed limiter device for adjustment of "set speed" shall be properly sealed and protected from unauthorized adjustment.
  2. The speed limiter function or road speed limiter shall be EMCcompatible or shall have Anti-Jammer mechanism
  3. The speed limiter function or the speed limiter device shall allow normal accelerator control for the purpose of gear changing
  4. The speed limiting function shall be performed progressively in such a mariner that excessive juddering or discomfort is not caused.
  5. The speed limiter function or the road speed limiter shall not cause uncontrolled engine power
  6. The speed limiter function shall be independent of the condition or soundness of the speedometer

4.Attention

YTWL_CA100F ES6413/2019 Standard Speed Governor For Limiting Car Truck Speed



  1. Make sure to read this manual carefully before using the speed limiter
  2. Please insert the SIM card before installing, and make sure the SIM card has no password, otherwise the tracker will not work normally ;
  3. Please make sure that all the cables of the speed limiter has been connected rightly, and then connect the tracker to host power. Must not install or take down the tracker when it is power on. If you found any troubles or omissions about the connections of cables, please cut off power first, otherwise you will easily damage the tracker
  4. The host of GPS tracker is a low-power wireless transmitter and receiver. It receives and sends radio frequency signal when it is working.





4. Technical Parameters:

YTWL_CA100F ES6413/2019 Standard Speed Governor For Limiting Car Truck Speed



Item Parameters
Overall Size 20.0 X 9.2 X 4.5 CM
Host Net Weight 0.4 KG
Processing chip STC
Speed Limiting Zone 20-200 Km/H
Speed Limiting Deviation ±5Km/H
Mechanical Bearing Capacity 400N
Working Voltage 9-36 V
Rated Power Consumption <0.3 W
Working Current <60 mA




5  Application Field:

  1. Vehicle Rental/Special Tracking System ;
  2. Finance and Insurance Business Tracking System;
  3. Car Commanding and Dispatching System ;
  4. Heavy Construction Vehicles Tracking Device
  5. Shipping Cargoes Tracking

YTWL_CA100F ES6413/2019 Standard Speed Governor For Limiting Car Truck Speed 0YTWL_CA100F ES6413/2019 Standard Speed Governor For Limiting Car Truck Speed 1
