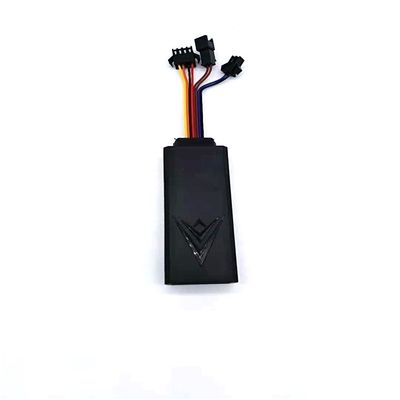

Tk004 GT06 Protocol GPS Tracker Device ACC Ignition For E Bike

tk004 GT06 Protocol GPS Tracking Device For E-Bike/Motorcycle with ACC ignition

Main components: (V1.0)

GPS functions:

protocol: GT06 1)support ACC ignition checking ,
G-sensor : BS250E 2)support Relay for cutting off power/fuel
input power: 9-100V 3)built-in GPS antenna: 18*18*4 mm
power IC: SL3036H 4)built-in battery, Real time tracking.
GSM module: MT6261 5)Geo-fence, over speed alarm, GPS module: Ublox 6) platform /APP supported

GPS Tracker Parameters:

Multi-Mode Positioning: BD GPS LBS

Device status indicators

4.1 Connect DC 9-100V power supply and the red LED will light continuously.

The red LED is the power signal,

it is always on when the external DC is connected.

4.2 The blue LED is the GSM signal indicator.

It is always on when there is no GSM;

it flashes when GSM is normal;

it flashes quickly when transmitting data.

4.3 The yellow LED is the GPS signal indicator:

it is always on when there is no positioning;

it flashes after positioning.

tk004 GT06 Protocol GPS Tracking Device For E-Bike/Motorcycle with ACC ignition

GPS Tracker Applications And Where you install it.

Red & black cable for power

Orange cable for ACC/ignition

Yellow cable for relay

GPS Tracker Main Functions:

1. Real-Time Positioning:

TK003 GPS Tracker Device will get the real-time position message and upload all status to the server system.

And will display the position on the map. you can click any of the points to know the name. locating time. and acc status.speed

GPS Time, direction, and so on.

2. Vibration alarm:

After setting the command of vibration by SMS. When it moves there will be a vibration alarm message.

3.  Power-off alarm:

If the power supply of GPS Tracker is cut off or GPS Tracker will send the alarm message to the server or bonded Phone number.

4.  Remote Car Lock

If an illegal ignition alarm receives from GPS Tracker, you can remotely cut off the vehicle circuit, so that to avoid being driven away.

5.  SOS Alarm

Users can press the SOS button on GPS Tracker in emergency situations. GPS Tracker will send an alarm message to manage the system and

Call police simultaneously.

Terminal connection:

male switch, Female switch

Red(positive) Black (Negative)

1. red wire connect positive(+),black wire connect negative(-)

2. power input connector to power positive and negative connectors( make sure to connect the right connector)

set server IP or Domain name

1. Set server Domain name: SERVER,1, domain name, port,0#

2. Set Server IP:

SERVER,0,IP, Port,0#

The last bit 0 stands for TCP

tk004 GT06 Protocol GPS Tracking Device For E-Bike/Motorcycle with ACC ignition

FAQ:

How to use this GPS tracker?

1. Input SIM Card inside the GPS Tracker product.

2. Connecting GPS Tracker with power supply.

3.  Put a GPS Tracker device near a window or some open area waiting for signal ready.

4.  When all indicators lighted and flashed normally means GPS Tracker works. now send SMS command to

communication network, you will receive a GPS Tracker status report by SMS.
