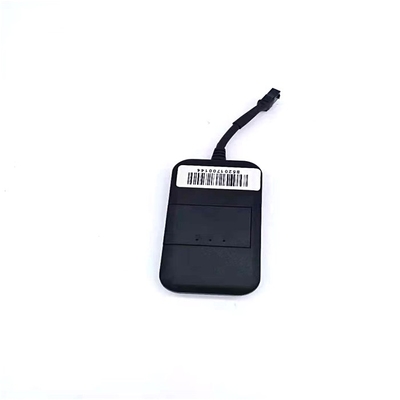

4G GPS Tracker Device Real Time Tracking Concox GT06





4G Mini Size Factory Price GPS Tracker Device Real-Time Tracking Concox GT06





GPS Tracker Parameters:



Working Voltage:	DC9-100V or 12-40V, optional.
GSM Chip:	MT6261
GPS Chip:	AT6558R
MPS	9486
Working temperature:	‘-20 ℃ to +70 ℃
Storage temperature:	’-40 ℃ to +80 ℃
Working Humidity:	5% to 90%
Power consumption:	Average power consumption<1W, power-saving status<2mW
GPS Tracker size:	76mm*29mm*16mm
Packing size:	82mm*122mm*44mm
Interface:	Power input, ACC input detection, cut off fuel circuit.
Communication band:	GSM/GPRS 850MHz 900MHz 1800MHz 1900MHz



Multi-Mode Positioning: BD GPS LBS

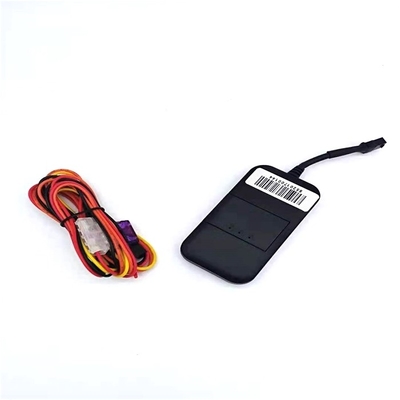

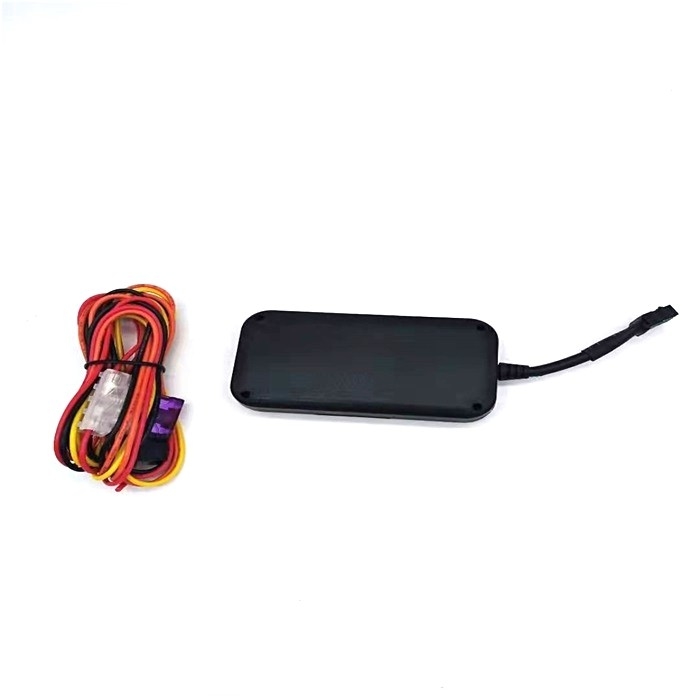

Product accessories

2. 1.1 Power cable

3. 1.2 User Guide

4. 1.3 Microphone (optional)

5. 1.4 SOS button (optional)

6. 1.5 Relay (optional)

7. 2. Product Features

8. 2.1 Support global gsm850/900/1800/1900mhz, wcdma850/900/1900/2100 Mhz network frequency band;

9. 2.2 Wide operating input voltage range: 9-80VDC;

10. 2.3 GPS / LBS real-time positioning, support the computer to track the car, mobile search vehicles, and WeChat search vehicles;

11. 2.4 Support SMS text query location information;

12. 2.5 ACC ignition signal is detected, the vehicle prompted the state;

13. 2.6 Built-in vibration sensor, to achieve intelligent vehicle anti-theft;

14. 2.7 Able to set a specific number for SOS alarm and burglar alarm;

15. 2.8 SOS switch button for the emergency call for help;

16. 2.9 Internal/external microphone and speakers, remote audio monitoring and voice intercom function (optional);

17. 2.10 Built-in backup battery, to achieve illegal cutting wire alarm (optional);

18. 2.11 Built-in OBD2 remote vehicle diagnostics management system (optional);

19. 2.12 Platform supports up to 180 days historical route track;

20. 2.13 Platform supports electronic fence, out of the regional alarm;

21. 2.14 Platform supports deviate planning route alarm;

22. 2.15 Platform supports Overspeed alarm;

23. 2.16 Platform supports serious collision warning (optional);

24. 2.17 Platform Support rollover warning (optional);

25. 2.18 Platform supports for report output;

26. 2.19 Support WEB send arm and disarm command;

27. 2.20 Support RFID auto-sensing arm and disarm (optional); Installation Notes





4G Mini Size Factory Price GPS Tracker Device Real-Time Tracking Concox GT06

Frequently used commands:





Command	Explain	Reply content
IMEI#	IMEI query	IMEI: 116790246811200
IMEI,116790246811200#	Set IMEI	OK
FACTORY#	Restore factory settings	OK, The terminal will restart after 30 seconds!
RESET#	restart	The terminal will restart after 1 minute!
WHERE#	Location query	Current position!Lat:N22.589031,Lon:E113.853567,Course:0,Speed:0,DateTime:2018-07-26 10:25:55
URL#	Google link query	GPS! N4.85094 E7.06102 speed:000.0 T:07/13/19 11:37 http://maps.google.com/maps?q=N4.864553,E6.983681





GPS Tracker Applications And Where you install it.



Terminal connection:



male switch, Female switch

Red(positive) Black (Negative)



1. red wire connect positive(+),black wire connect negative(-)

2. power input connector to power positive and negative connectors( make sure connect the right connector)





GPS Tracker Main Functions:

Indicators



 Red light - Power Indicator / OBD Work Lights

LED Status	Meaning
Flash once in 2 seconds	Normal operation / OBD working properly
No light	Shutdown / OBD sleep



3.5.2 Yellow indicator light -GSM

LED Status	Meaning
Flash once in 2 seconds	GSM initialization
Light Always	GPRS is normal / already online
No light	GSM sleep



Proper Use of The Product

Install→Power on→Settings→Register

Installation: GPS antenna should be facing toward the sky, above the mounting location, must be no material (such as metal, window film) absorption of electromagnetic waves sheltered place.

Boot: Insert the SIM card correctly, connect the wire according to the diagram, then turn on the power.

Setting: Must be done, or can not do other operations, mobile phone owners send text messages to set the owner number and a specific number to the terminal SIM card.

Registration: The registration method is a different subject to dealer platforms, please consult your dealer.

Instructions

Note: The symbol is separated by a comma, the following function parameters instruction comma is in English input state.

Owner password settings

Owners can only bind one mobile number, the last mobile number of binding is effective. bind a certain mobile number, another mobile number can not be reached or connected.

The default owner password is: 123456

Set owner number is: admin123456 13712345678

Re: Welcome and thank you for choosing Poronix GPS tracker, admin ok

Modify owner password: password123456 666888 (666888 for the new password)

1. Real-Time Positioning:



GPS Tracker Device will get the real-time position message and upload all status to the server system.



And will display the position on the map. you can click any of the points to know the name. locating time. and acc status. speed



GPS Time, direction, and so on.



2. Vibration alarm:



After setting the command of vibration by SMS. When it moves there will be a vibration alarm message.



3.  Power-off alarm:



If the power supply of GPS Tracker is cut off or GPS Tracker will send the alarm message to the server or bonded Phone number.



4.  Remote Car Lock



If an illegal ignition alarm receives from GPS Tracker, you can remotely cut off the vehicle circuit, so that to avoid being driven away.



2.1 Installation for the Car/Motorcycle/E-bike

The GPS tracker must be installed under professional personnel.

Note:

1) Please install the device in the hidden place as follows:

Under Front windshield；

In the front instrument panel；

Under back windshield；

2) Avoid being placed with signal radiators like reverse sensor ；

3) The device has a GSM antenna and GPS antenna inside. Please ensure the receiving side of the device is face up and without a metal cover.



Note: The metal cover will lessen the receiving of GPS signals.



4G Mini Size Factory Price GPS Tracker Device Real-Time Tracking Concox GT06

Other Models:

TK003 Mini GPS Tracker



TK004 Mini GPS Tracker



CA-V1  compatible with Fuel lever sensor

CA-P3C  Long time standard by battery





FAQ:



How to use this GPS tracker?



1. Input SIM Card inside the GPS Tracker product.



2. Connecting GPS Tracker with power supply.



3.  Put a GPS Tracker device near a window or some open area waiting for signal ready.



4.  When all indicators lighted and flashed normally means GPS Tracker works. now send SMS command to

communication network, you will receive a GPS Tracker status report by SMS.
