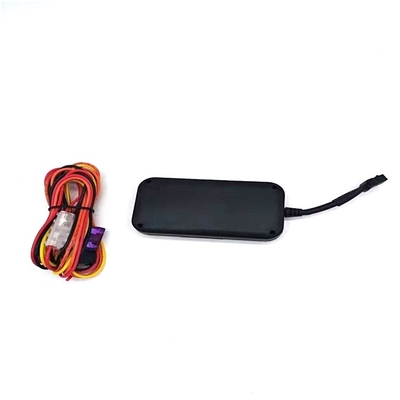

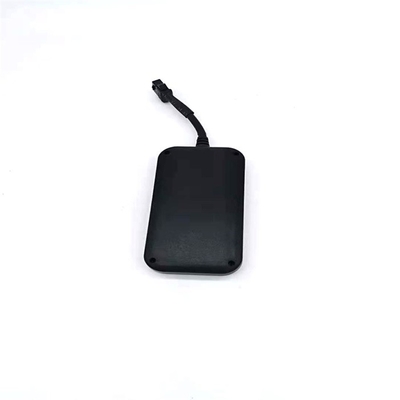

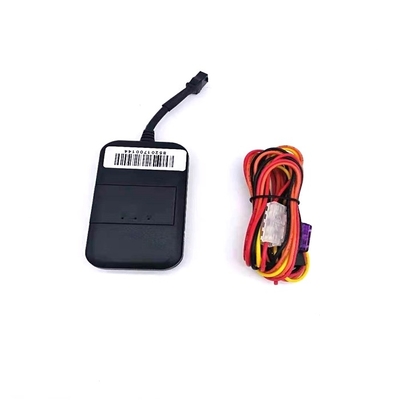

4G Mini Size Free App GPS Tracker Remote Monitoring Anti Thief DC9-80V

4G Mini Size Free App GPS Tracker Remote Monitoring Anti Thief DC9-80V
4G Mini Size Free App GPS Tracker Remote Monitoring Anti Thief DC9-80V 4G Mini Size Free App GPS Tracker Remote Monitoring Anti Thief DC9-80V 4G Mini Size Free App GPS Tracker Remote Monitoring Anti Thief DC9-80V

Large Image :  4G Mini Size Free App GPS Tracker Remote Monitoring Anti Thief DC9-80V Get Best Price

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Caxtrack
Certification: CE/ROHS/SGS/FCC
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Neutral or Customized
Delivery Time: 1-10 working days after received your payment
Payment Terms: T/T or Western Union or PayPal
Supply Ability: 1,000,000pcs per month
Detailed Product Description
Warranty: 1Year Function: Real Time Tracking
Place Of Origin: China Position Accuracy: 5 Meters
Working Voltage: DC9-80V GPRS: Class 12 TCP IP
GPS Module: MT6261 Protocol: Concox GT06
Color: Black Support1: OEM
Support2: 4G
High Light:

MT6261 Remote Monitoring GPS Tracker

,

AT6558R Remote Monitoring GPS Tracker

,

FCC Anti Thief GPS Tracker





4G Mini Size Free App Cheapest Cost GPS Tracker Remote Monitoring Anti-Thief  DC9-80V





GPS Tracker Parameters:



Working Voltage: DC9-100V or 12-40V, optional.
GSM Chip: MT6261
GPS Chip: AT6558R
MPS 9486
Working temperature: ‘-20 ℃ to +70 ℃
Storage temperature: ’-40 ℃ to +80 ℃
Working Humidity: 5% to 90%
Power consumption: Average power consumption<1W, power-saving status<2mW
GPS Tracker size: 76mm*27mm*15mm
Packing size: 80mm*125mm*40mm
Interface: Power input, ACC input detection, cut off fuel circuit.
Communication band: GSM/GPRS 850MHz 900MHz 1800MHz 1900MHz



Multi-Mode Positioning: BD GPS LBS



1. 1. Product Accessories

2. 1.1 Power cable

3. 1.2 User Guide

4. 1.3 Microphone (optional)

5. 1.4 SOS button (optional)

6. 1.5 Relay (optional)

7. 2. Product Features

8. 2.1 Support global gsm850/900/1800/1900mhz, wcdma850/900/1900/2100 Mhz network frequency band;

9. 2.2 Wide operating input voltage range: 9-80VDC;

10. 2.3 GPS / LBS real-time positioning, support the computer to track the car, mobile search vehicles, and WeChat search vehicles;

11. 2.4 Support SMS text query location information;

12. 2.5 ACC ignition signal is detected, the vehicle prompted the state;

13. 2.6 Built-in vibration sensor, to achieve intelligent vehicle anti-theft;

14. 2.7 Able to set a specific number for SOS alarm and burglar alarm;

15. 2.8 SOS switch button for the emergency call for help;

16. 2.9 Internal/external microphone and speakers, remote audio monitoring and voice intercom function (optional);

17. 2.10 Built-in backup battery, to achieve illegal cutting wire alarm (optional);

18. 2.11 Built-in OBD2 remote vehicle diagnostics management system (optional);

19. 2.12 Platform supports up to 180 days historical route track;

20. 2.13 Platform supports electronic fence, out of the regional alarm;

21. 2.14 Platform supports deviate planning route alarm;

22. 2.15 Platform supports Overspeed alarm;

23. 2.16 Platform supports serious collision warning (optional);

24. 2.17 Platform Support rollover warning (optional);

25. 2.18 Platform supports for report output;

26. 2.19 Support WEB send arm and disarm command;

27. 2.20 Support RFID auto-sensing arm and disarm (optional); Installation Notes



4G Mini Size Free App GPS Tracker Remote Monitoring Anti Thief DC9-80V 0

4G Mini Size Free App GPS Tracker Remote Monitoring Anti Thief DC9-80V 1

4G Mini Size Free App Cheapest Cost GPS Tracker Remote Monitoring Anti-Thief DC9-80V



Frequently used commands:





Command Explain Reply content
IMEI# IMEI query IMEI: 116790246811200
IMEI,116790246811200# Set IMEI OK
FACTORY# Restore factory settings OK, The terminal will restart after 30 seconds!
RESET# restart The terminal will restart after 1 minute!
WHERE# Location query Current position!Lat:N22.589031,Lon:E113.853567,Course:0,Speed:0,DateTime:2018-07-26 10:25:55
URL# Google link query

GPS!

N4.85094 E7.06102 speed:000.0

T:07/13/19 11:37

http://maps.google.com/maps?q=N4.864553,E6.983681







GPS Tracker Applications And Where you install it.



4G Mini Size Free App GPS Tracker Remote Monitoring Anti Thief DC9-80V 2

Terminal connection:



male switch, Female switch

Red(positive) Black (Negative)



1. red wire connect positive(+),black wire connect negative(-)

2. power input connector to power positive and negative connectors( make sure connect the right connector)





GPS Tracker Main Functions:

Indicators



 Red light - Power Indicator / OBD Work Lights

LED Status Meaning
Flash once in 2 seconds Normal operation / OBD working properly
No light Shutdown / OBD sleep



1. Real-Time Positioning:



GPS Tracker Device will get the real-time position message and upload all status to the server system.



And will display the position on the map. you can click any of the points to know the name. locating time. and acc status. speed



GPS Time, direction, and so on.



2. Vibration alarm:



After setting the command of vibration by SMS. When it moves there will be a vibration alarm message.



3.  Power-off alarm:



If the power supply of GPS Tracker is cut off or GPS Tracker will send the alarm message to the server or bonded Phone number.



4.  Remote Car Lock



If an illegal ignition alarm receives from GPS Tracker, you can remotely cut off the vehicle circuit, so that to avoid being driven away.



2.1 Installation for the Car/Motorcycle/E-bike

The GPS tracker must be installed under professional personnel.

Note:

1) Please install the device in the hidden place as follows:

Under Front windshield;

In the front instrument panel;

Under back windshield;

2) Avoid being placed with signal radiators like reverse sensor ;

3) The device has a GSM antenna and GPS antenna inside. Please ensure the receiving side of the device is face up and without a metal cover.



Note: The metal cover will lessen the receiving of GPS signals.



4G Mini Size Free App Cheapest Cost GPS Tracker Remote Monitoring Anti-Thief DC9-80V

Other Models:

TK003 Mini GPS Tracker

4G Mini Size Free App GPS Tracker Remote Monitoring Anti Thief DC9-80V 3



TK004 Mini GPS Tracker



4G Mini Size Free App GPS Tracker Remote Monitoring Anti Thief DC9-80V 4

CA-V1  compatible with Fuel lever sensor

4G Mini Size Free App GPS Tracker Remote Monitoring Anti Thief DC9-80V 5

CA-P3C  Long time standard by battery





4G Mini Size Free App GPS Tracker Remote Monitoring Anti Thief DC9-80V 6

CA-P10 GPS LOCK

4G Mini Size Free App GPS Tracker Remote Monitoring Anti Thief DC9-80V 7

FAQ:



How to use this GPS tracker?



1. Input SIM Card inside the GPS Tracker product.



2. Connecting GPS Tracker with power supply.



3.  Put a GPS Tracker device near a window or some open area waiting for signal ready.



4.  When all indicators lighted and flashed normally means GPS Tracker works. now send SMS command to

communication network, you will receive a GPS Tracker status report by SMS.
