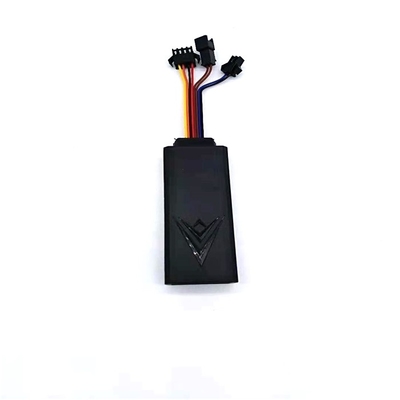

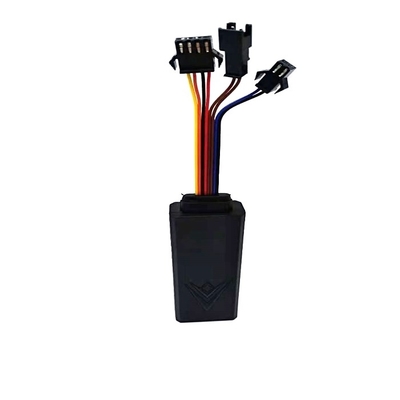

Mini Size Free App TK004 GPS Tracker Device With Engine Cut Off Mic SOS Alarm



Mini Size Free App Cheapest TK004 GPS Tracker With Engine Cut Off/Mic/SOS Alarm



 Main components: (V1.0)



GPS functions:

protocol: GT06 1)support ACC ignition checking ,
G-sensor : BS250E 2)support Relay for cutting off power/fuel
input power: 9-100V 3)built-in GPS antenna: 18*18*4 mm
power IC: SL3036H 4)built-in battery, Real time tracking.
GSM module: MT6261 5)Geo-fence, over speed alarm, GPS module: Ublox 6) platform /APP supported





GPS Tracker Parameters:



Working Voltage:	DC9-100V or 12-40V, optional.
GSM Chip:	MT6261
GPS Chip:	AT6558R
MPS	9486
Working temperature:	‘-20 ℃ to +70 ℃
Storage temperature:	’-40 ℃ to +80 ℃
Working Humidity:	5% to 90%
Power consumption:	Average power consumption<1W, power-saving status<2mW
GPS Tracker size:	76mm*27mm*15mm
Packing size:	80mm*125mm*40mm
Interface:	Power input, ACC input detection, cut off fuel circuit.
Communication band:	GSM/GPRS 850MHz 900MHz 1800MHz 1900MHz
Weight:	42g



Multi-Mode Positioning: BD GPS LBS















Mini Size Free App Cheapest TK004 GPS Tracker With Engine Cut Off/Mic/SOS Alarm

GPS Tracker Main Functions:



1. Real-Time Positioning:



TK003 GPS Tracker Device will get the real-time position message and upload all status to the server system.



And will display the position on the map. you can click any of the points to know the name. locating time. and acc status. speed



GPS Time, direction, and so on.



2. Vibration alarm:



After setting the command of vibration by SMS. When it moves there will be a vibration alarm message.



3. Power-off alarm:



If the power supply of GPS Tracker is cut off or GPS Tracker will send the alarm message to the server or bonded Phone number.



4. Remote Car Lock



If an illegal ignition alarm receives from GPS Tracker, you can remotely cut off the vehicle circuit, so that to avoid being driven away.

Frequently used commands:





Command	Explain	Reply content
IMEI#	IMEI query	IMEI: 116790246811200
IMEI,116790246811200#	Set IMEI	OK
FACTORY#	Restore factory settings	OK, The terminal will restart after 30 seconds!
RESET#	restart	The terminal will restart after 1 minute!
WHERE#	Location query	Current position!Lat:N22.589031,Lon:E113.853567,Course:0,Speed:0,DateTime:2018-07-26 10:25:55
URL#	Google link query	GPS! N4.85094 E7.06102 speed:000.0 T:07/13/19 11:37 http://maps.google.com/maps?q=N4.864553,E6.983681
SERVER#	Server query	server,1,gw.carhere.net,8005,0#
server,1,gps-go.com,6006,0#	Set domain name	ok
Server,0,121.201.110.106,6006,0#	Set IP	ok
GMT#	Time zone query	Currently Timezone(GMT):E,8,0
APN#	APN query	Currently in use APN:peoples.net,0000,0000;
APN,xxxx#	Set APN
APN,xxxxt,userAAA,passBBB#	Set apn and apn user,password	Example: apn,cmnet,aaa,000#





GPS Tracker Applications And Where you install it.

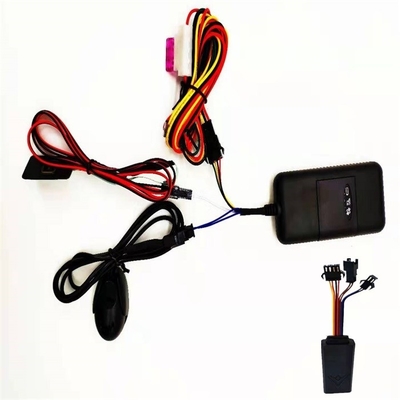

Terminal connection:



male switch, Female switch

Red(positive) Black (Negative)



1. red wire connect positive(+),black wire connect negative(-)

2. power input connector to power positive and negative connectors( make sure connect the right connector)





2.1 Installation for the Car/Motorcycle/E-bike

The GPS tracker must be installed under professional personnel.

Note:

1) Please install the device in the hidden place as follows:

Under Front windshield；

In the front instrument panel；

Under back windshield；

2) Avoid being placed with signal radiators like reverse sensor ；

3) The device has a GSM antenna and GPS antenna inside. Please ensure the receiving side of the device is face up and without a metal cover.





Mini Size Free App Cheapest TK004 GPS Tracker With Engine Cut Off/Mic/SOS Alarm

Other Models:



TK003 Mini GPS Tracker







CA-V1  compatible with Fuel lever sensor

Fuel level sensor

1.





2.









































CA-P2 Pet GPS Tracker

GPS Watch

CA-P3C  Long time standard by battery





CA-P10 GPS LOCK











FAQ:



How to use this GPS tracker?



1. Input SIM Card inside the GPS Tracker product.



2. Connecting GPS Tracker with power supply.



3.  Put a GPS Tracker device near a window or some open area waiting for signal ready.



4.  When all indicators lighted and flashed normally means GPS Tracker works. now send SMS command to

communication network, you will receive a GPS Tracker status report by SMS.
