Geo Fence 3G WCDMA 30m 2100Mhz Acc Checking Bus Tracker

Geo Fence 3G WCDMA 30m 2100Mhz Acc Checking Bus Tracker
Geo Fence 3G WCDMA 30m 2100Mhz Acc Checking Bus Tracker Geo Fence 3G WCDMA 30m 2100Mhz Acc Checking Bus Tracker Geo Fence 3G WCDMA 30m 2100Mhz Acc Checking Bus Tracker Geo Fence 3G WCDMA 30m 2100Mhz Acc Checking Bus Tracker

Large Image :  Geo Fence 3G WCDMA 30m 2100Mhz Acc Checking Bus Tracker Get Best Price

Product Details:
Place of Origin: China
Brand Name: Cartracker
Certification: CE/ROHS/FCC/SGS
Model Number: CA-V1-2G/CA-V1-3G
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: negotiation
Packaging Details: Packed in carton firstly
Delivery Time: 1-10 working days after received your payment
Payment Terms: T/T or western Union or paypal
Supply Ability: 100,000pcs per month
Detailed Product Description
Product Name: GPS Tracker Device Network: 3G WCDMA
Band: 2100Mhz GPS Chip: Ublox Chip
GPS Accuracy: <30m Application: Car Truck Bus
Work Voltage: 9-36VDC Dim.: 85*65*25mm
Weight: 150g Function 1: Locating Through Phone Message
Function 4: Camera, LED Display, LCD Display Is Optionla Function 5: Mileage Statistics And Geo-fence Function
Function 2: BlackouCA Alarm, Compatible With The Original Car Alarms; Function 3: SOS Function
High Light:

30m Acc Checking Bus Tracker

,

2100Mhz Acc Checking Bus Tracker

,

3G WCDMA Geo Fence Tracker

Geo-fence Tracking Bus Acc Checking Bus Tracker Truck With Support Of temperature Sensor

Performance Parameters:



 6. Specification

Content Specs
Dim. 87 * 64 * 26 (mm)
Weight 495g
Network GSM/GPRS/GPS
Band 900/1800MHz or 850/900/1800/1900MHz
GPS chip SiRF III chip
GSM/GPRS Module SIM900 or SIM900A
GPS sensitivity -159dBm
GPS accuracy 5 m
Time To First Fix

Reacquisition 0.1s

Cold status 45s

Warm status 35s

Hot status 1s

Work Voltage DC 9V-30V
Battery Chargeable changeable 3.7V / 1.2Ah Li-ion battery
Standby work current < 30mA
Storage Temp. -40°C to +85°C
Operation Temp. -20°C to +70°C
Humidity 5%--95% non-condensing



Description:



1. Vehicle GPS tracking Positioning and Tracking: Through the on-line Positioning Platform or the cell phone to locates at times, and get the working status. You can choose the Positioning Platform by yourself.
2.
Auto Track: You can set up auto track by SMS or on-line positioning platform.

3. Car GPS Tracker Overspeed Alert: Send SMS to the device to start the movement alert function. When the vehicle is overspeed, the device will send the overspeed alert to all authorized numbers.

4. Car GPS Tracker Triggering Emergency Alarm: When there is a emergency happened on the vehicle, you can put on the button and the installed device will send out alarm to the authorized numbers.
5. Mileage statistics; ACC checking; cutting off power and alarm.

6. Vehicle GPS tracking Remote controlling oil and circuit: you can control the oil and circuit via the device by SMS in anywhere and anytime.

7. Vehicle GPS tracking Geo-fence: Set up a geo-fence for the device to restrict its movements within a district. The device will send the message to all authorized numbers when it breaches the district.

8. Modify the IP and Port of Communication Protocol for different on-line positioning platform

9Car GPS Tracker Remote Monitoring: In anywhere and anytime, call the phone number in the device, when it connects, you can monitor the sound around 5 meter.

10Vehicle GPS tracking Movement Alert: Send SMS to the device to start the movement alert function. When the vehicle is moving, the device will send the movement alert to all authorized numbers.

11. Compatible with the original anti-theft alarm: It will send SMS alarm after the original anti-theft alarm warning.

12. Car GPS Tracker Restart the device: send SMS to resume the default of device.

13. mixer sensor is optional

14.  Guarantee Item

1. 2months upon date of purchase,if there is function problem,we should offer the same item subject to goods and packing maintain perfect.

2. 1year upon date of purchase,we will guarantee to keep the goods in repair.(not including fittings)

3. Guarantee service is subject to normally using.

4. All of damage by man-made(tear open the housing,tear off the sticker,unnormally using),or losing this card,will not guarantee.



Geo Fence 3G WCDMA 30m 2100Mhz Acc Checking Bus Tracker 0



Applications:



4s shop, car company, truck company, motorcycle company,GPS producer, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, car repair shop,taxi company, bus company.

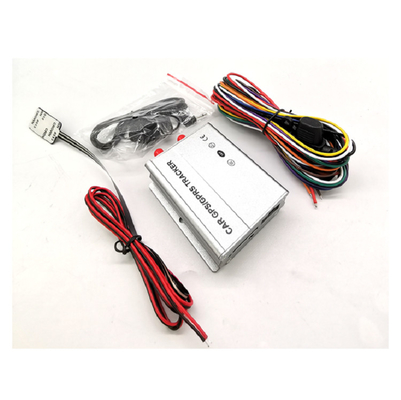

Product Configuration:



1. Standard configuration



1)    main device             1 pcs

2)    power line                1 pcs

3)    GSM antenna          1 pcs

4)    GPS antenna           1 pcs

5)    Installation cables    1 set

6)    Usage instructions

7)    Warranty card

8)    Certification







Guarantee Item

1.2months upon date of purchase,if there is function problem,we should offer the same item subject to goods and packing maintain perfect.

2.1year upon date of purchase,we will guarantee to keep the goods in repair.(not including fittings)

3.Guarantee service is subject to normally using.

4.All of damage by man-made(tear open the housing,tear off the sticker,unnormally using),or losing this card,will not guarantee.
