Full Band Mini E - bike GPS Tracker Support DC9V - 100V Input And Mobile Phone App

Full Band Mini E - bike GPS Tracker Support DC9V - 100V Input And Mobile Phone App
Full Band Mini E - bike GPS Tracker Support DC9V - 100V Input And Mobile Phone App Full Band Mini E - bike GPS Tracker Support DC9V - 100V Input And Mobile Phone App

Large Image :  Full Band Mini E - bike GPS Tracker Support DC9V - 100V Input And Mobile Phone App Get Best Price

Product Details:
Place of Origin: China
Brand Name: CAX
Certification: CE
Model Number: CA-V2C
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: negotiation
Packaging Details: Packed in carton firstly
Delivery Time: 1-10 work days
Payment Terms: Western Union, T/T
Supply Ability: 100000 PCS Per month
Detailed Product Description
Model Name: E - Bike GPS Tracker Function1: Mobile Phone APP
Function2: Geo Fence Alarm Function3: History Track
Network: GPRS GPS GSM Band: 850/900/1800/1900Mhz Full Band
Color: Black Weight: 35g
Size: 67*33.8*11.5mm Application: E - Bike Motorcycle
High Light:

Car GPS Tracking

,

Auto GPS Tracker



Full Band Mini E - bike GPS Tracker Support DC9V - 100V Input And Mobile Phone App



Parameters:



Content

Specs.

Production Name  E - Bike GPS Tracker

Functions1

ACC Detection

Functions2

Mobile Phone App

GSM Chip

MTK

Band

Full Band 850/900/1800/1900Mhz

GPS chip

UBLOX Chip

GPS sensitivity

-159dBm

GPS accuracy

5-30m

voltage input

9 to 100V  DC

Working currency

20mA/DC12V

Storage Temp.

-40°C to +85°C

Operation Temp.

-20°C to +70°C

Humidity

20%--80% RH

Weight 35g
Network GPRS/GPS/2G
Application Motorcycle E- Bike
Dim.  67(L)×33.8(W)×11.5(H)mm

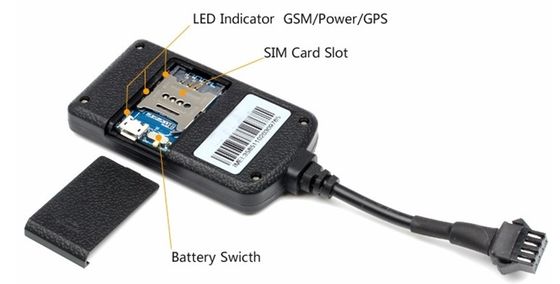

Picture:



Full Band Mini E - bike GPS Tracker Support DC9V - 100V Input And Mobile Phone App 0







Command:

  No

 Features

Message sent

Replies

Remarks

1

Add administrator No 1

#Password#AAD#1#Cell No#

ADD admin account 1 ok!

For example:#6666#AAD#1#13554809219#

2

Add administrator No 2

#Password#AAD#2#Cell No#

ADD admin account 2 ok!

3

Delete Administrator No 1

#Password#DAD#1#

Delete admin account 1 OK!

For example: #6666#DAD#1#    #6666#DAD#2#

4

Delete Administrator No 2

#Password#DAD#2#

Delete admin account 2 OK!

12

View Administrator & Authorized officer numbers

#Password#VA#

Display 2 administrators number and 3 authorized numbers

For example:#6666#VA#

13

Setting password

#Password#CP#new password#

change password ok!

For example:#6666#CP#1234#,New password is 1234

14

Restore password

#Password#RP#

reset password OK!

For example:#6666#RP#  Restore password to factory standard.

15

Getting Location of longitude and latitude

#Password#GL#

Reply with google links of longitude and latitude

For example:#6666#GL#, will get the current longitude and latitude of device.





Applications :



4S shop , car company , truck company , motorcycle company , GPS producer , large-scale shopping malls , exclusive agency , chain shops , large-scale sales , car repair shop,taxi company .





Gurantee:



1. All of our product is free to use the Tracking service server in 24 hours each day

2. All of our product there is a 2 year quanlity assurance.

3. Sample fee will not  be returned.





Product Configuration:



1. Standard configuration

  1. CA-V2C GPS
  2. Power Line with Fuse
  3. User manual

2. Optional accessories



1. Relay DC12V/24V

2. Li-Battery(Built-in)
