Product Details:
Payment & Shipping Terms:
|
Certification: | CE | Model Name: | E - Bike GPS Tracker |
---|---|---|---|
Function1: | Power Off Alert | Function2: | 180mAh Rechargeable Battery |
Function3: | 2G GSM GPS | Network: | GPRS |
Band: | 850/900/1800/1900MHz | Color: | Black |
Weight: | 34g | Size: | 6.7*3.38*1.15cm |
Application: | E-bike Vehicle | Tracking Way: | Mobile Phone And PC Website |
High Light: | Auto GPS Tracker,Car GPS Tracking |
E - bike GPS Tracker With 180mAh Battery Support Power Off Alert
Feature:
1. GPS Positioning
2. Playback Routes
3. ACC ignition detection
4. Overspeed alert
5. Burglar alert
6.Setting Function via SMS
7. Built-in GPS GSM Antenna
8. Power Off Alert
9. Remote Cut Off Engine Via Relay
10. Support GT06 Protocol
Parameters:
1. Dimension: 67*33.8*11.5mm
2. Weight: 31g
3. GPRS: Class12,TCP/IP
4. GPS Sensitivity: -159dBm
5. GSM Frequency: 850/900/1800/1900Mhz
6. Operation Voltage: 9-100VDC
7. Position Accuracy: 10m
8. GSM/GPS Antenna: Built-in Design
9: Data Transmit: TCP,SMS
10: Non-movement Detection: Movement Alert based on built-in 3D
11: Mileage Report: Track by time/distance interval power off
Applications :
Fleet management
Car service shops and car delears
Insurance company
Car rental company
Taxi company
Dropship company
Project vehicle
Motor and bike
LED:
GPS LED | Blue |
GSM LED | Green |
Power LED | Red |
Steps of installation:

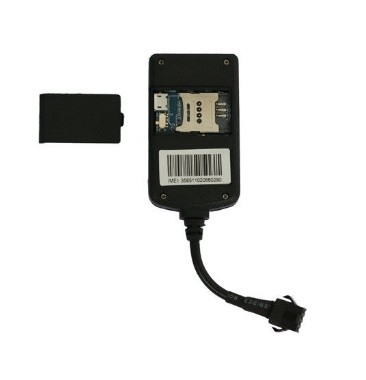

1. Open the back cover,insert a SIM card to SIM Card Slot.
2. Switch power button up(Power on).
3. Connect the power cable with the interface of device. Now theree LED lights will lighting. Make sure the
receiving side face up, without any metal object shelter. The LED lights will glashing after 1 to 5mins.
It shows working normally.
4. Close the back cover.
5. Please ask professional technical to connect wires and install to the vehicle. After correct installation.
the REd LED will falshing, 1 min. Later the Blue Led will falshing too. That shows installing completely.
SMS Commands:
Add Administrator No.1 | #6666#AAD#1#Cell No# |
Cut Engine | #6666#CF# |
Restore Engine | #6666#OF# |
Check Status | Status# |
Restart device | #6666#reset# |
Picture:
Mobile Phone Interface
PC Interface
History Track
