Product Details:
Payment & Shipping Terms:
|
| Product Name: | Car Tracker Device | Functions1: | DC12V Relay 5Line |
|---|---|---|---|
| Functions2: | Built In Battery | Working Currency: | DC12V <20mA |
| GSM Chip: | MTK | Application: | Car And Vehicle |
| Work Voltage: | DC9-60V | Weight: | 45g |
| Power Off Alarm: | Yes | Geo Fence Alarm: | Yes |
| Network: | GPRS GSM 2G | Dim: | 90*45*10mm |
| High Light: | vehicle gps tracking device,car gps tracker device |
||
Vehicle GPS Tracker Device Support 12V Relay And Control The Engine
Performance Parameters:
|
Content |
Specs. |
| Production Name | Mini Car GPS Tracker |
|
Functions1 |
DC12V Relay |
|
Functions2 |
Remote Cut Off Engine via relay |
|
GSM Chip |
MTK Chip |
|
Band |
850/900/1800/1900Mhz Full Band |
|
GPS chip |
MTK |
|
GPS sensitivity |
-159dBm |
|
GPS accuracy |
5-30m |
|
voltage input |
Power : DC9.5－60V |
|
Working currency |
20mA/12V |
|
Storage Temp. |
-40°C to +85°C |
|
Operation Temp. |
-20°C to +70°C |
|
Humidity |
20%--80% RH |
| Weight | 0.045kg |
| Network | GPRS GPS 2G |
| Dim. | 90*45*10mm |
Features:
GSM Quad-band frequency (850/900/1800/1900MHz);
Wide input voltage range: DC12-60V;
Build-in vibration sensor and Vibration alarm, Smart Anti-theft function;
ACC ignition detection, vehicle status notification;
External SOS button, used in immergence case use;
External Relay, used to cut off engine power or oil remotely via DC12V Relay;
External Microphone, used in voice monitoring case (Optional);
Build-in back-up battery(Optional);
Support OBD easy installation (Optional)need one OBD Line;

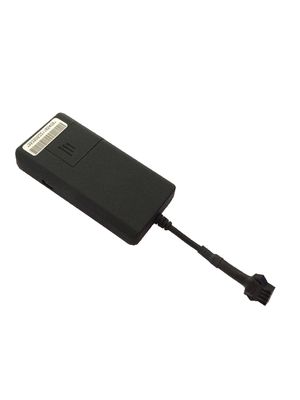

Picture:
1. Red LED (Power status indication)
| LED Status | Indication |
| Quick flashing, On 0.1s, off 0.1s | Low power warming |
| Constantly on | Charging |
| Slow flashing, On 0.1s, off 2s | Battery Charged/Working Normal |
| Constantly off | Voltage too low/ Shut down |
2. Yellow LED (GSM status indication)
| LED Status | Indication |
| Slow flashing, On 15s | GSM initialization |
| Quick flashing, On 0.1s,off 2s | GSM signal normal |
| Constantly on | GSM calls/GPRS start |
| Constantly off | No GSM signal received |
3. Blue LED (GPS status indication)
| LED Status | Indication |
| Flashing, On 0.1s, off 0.1s | GPS normal |
| Constantly on | GPS signal searching |
| Constantly off | GPS shut down |
Applications :
4S shop , car company , truck company , motorcycle company , GPS producer , large-scale shopping malls , exclusive agency , chain shops , large-scale sales , car repair shop,taxi company .
Gurantee:
1. All of our product is free to use the Tracking service server in 24 hours each day
2. All of our product there is a 2 year quanlity assurance.
3. Sample fee will not be returned.

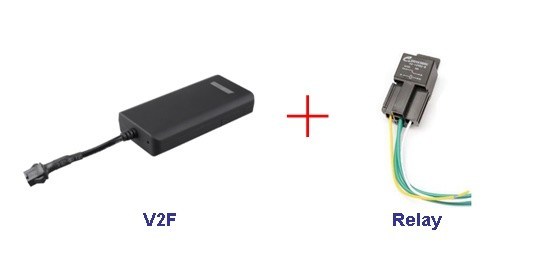

Product Configuration:
1. Standard configuration
2. Optional accessories
1. Relay (5Line) DC 12V
2. Li-Battery(Built-in)
