3000mAh Battery GPS Tracker Device

3000mAh Battery GPS Tracker Device
3000mAh Battery GPS Tracker Device

Large Image :  3000mAh Battery GPS Tracker Device Get Best Price

Product Details:
Place of Origin: China
Brand Name: caxtrack
Certification: CE/ROHS/FCC/SGS
Model Number: CA-P3B
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: Packed in carton firstly
Delivery Time: 1-10 working days after received your payment
Payment Terms: T/T or western Union or paypal
Supply Ability: 10,000pcs per month
Detailed Product Description
Product Name: GPS Tracker Device GPS Accuracy: 5 To 30m
Dim: 76mm*35mm*20mm Network Bands: 850/900/1800/1900MHz/Quad - Band
Weight: 0.092Kg Operation Temp.: -20°C To +55°C
Network: GSM GPRS 2G Storage Temp: -40°C To +70°C
Charger: Input: 110-220VAC Output : 5VDC Standby WorK Time: > 30days ( Sleep Model )
Li-ion Battery: 3000mAh Rechargeable Battery Standby Work Current: < 3mA
Work Voltage: 3.7 - 4.25V
High Light:

vehicle gps tracking device

,

car gps tracker device



GPS Tracker Device For Vehicle Without Power Line and 3000mAh Battery




Performance Parameters:


Content

Specs.

Product Name GPS Tracker Device
Network Bands  850/900/1800/1900MHZ Quad - Band
Network  GSM/GPRS ( class 12 )

Functions1

Waterproof , IP65

Functions2

Real Time Tracking , Vibration alarm , Low power alarm

Functions3

GPS & LBS Tracking , Geo-fence alarm

Weight 92g
Size 76*35*20mm
Li-ion Battery 3000mAh  3.7V Rechargeable Battery

GSM Chip

MTK

GPS sensitivity

-159dBm

GPS accuracy

5 - 30m

Time To First Fix

Reacquisition  0.1s

 Cold status  45s

Warm status  35s

 Hot status  1s

Work Voltage

3.7VDC-4.5VDC

Charging voltage  Input: 110-220VAC  Output: 5VDC

Application

Assets , Vehicle ,People Kids , Pets ,Tracking

Standby work current

< 3mA

Standby word  > 30days ( Sleep Model )

Storage Temp.

-40°C to +70°C

Operation Temp.

-20°C to +55°C

Humidity

5%--95.5% non-condensing




Description:

  • It  small to facilitate hiding place.
  • It has GPS and GSM antenna so the accuracy is excellent.
  • It’ll sleep automatically when it’s still and will be awakened by moving, therefore, it can save power a lot.
  • It’ll send a message to the monitor telephone number to warn that power's low.
  • It supports TCP communication on GPRS.
  • It supports base station auxiliary positioning which can increase the accuracy.
  • It supports alarming when: low voltage, vibrating, overspeeding etc.
  • It supports replay historical moving route.
  • It supports geofencing set by the webpage GPS tracking platform/smart phone APP/messages, once it’s out of fence, a warning will be sent to the monitor phone number.
  • It can switch intelligently because it has dual mode.
  • It can be tracked by webpage GPS tracking platform/android & IOS phone APP/messages.
  • Its battery has huge capacity.
  • Its remaining power can be displayed on GPS tracking platform/android & IOS phone APP/messages.




Detail Pictures:

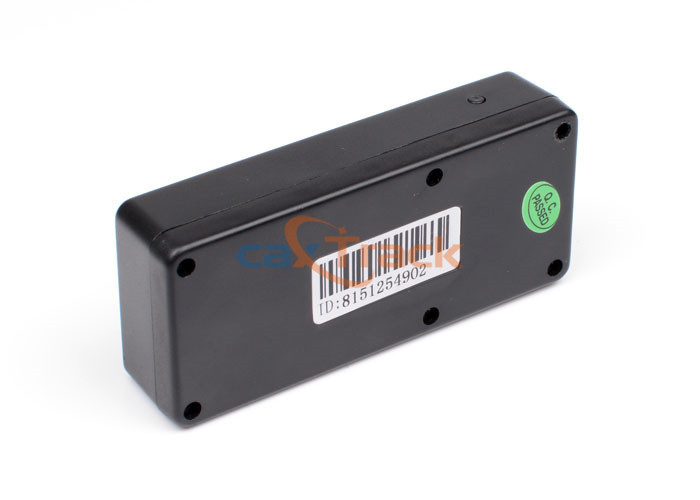

3000mAh Battery GPS Tracker Device 0



  • Built-in  Li-ion battery for 3000mAh
  • Can standby 30days
  • Standby work current <3mA





Battery and Charger



Do charge the battery to capacity in 4 -5 hours for first time. Please use the battery and charger provided by the manufacturer. This unit adopts built-in Li-ion battery, and full battery can standby 30days ( Sleep model ). After first use, the battery usually should be charged fully in 1--2 hours.





Applications:


1.  Vehicle Rental / Fleet management etc

2.  Container / cargo /  Kids / Pets asset tracking



Gurantee:

1. All of our product is free to use the Tracking service server in 24 hours each day
2. All of our product there is a 2 year quanlity assurance.
3. Sample fee will not  be returned.


Product Configuration:

1. Standard configuration



  1. GPS Device
  2. Charger
  3. USB Cable
  4. Manual
  5. Warranty card
