Product Details:
Payment & Shipping Terms:
|
| Product Name: | GPS Tracker Device | Network: | GSM/GPRS |
|---|---|---|---|
| Band: | 850/900/1800/1900MHz | GPS Chip: | U-blox7 |
| GPS Accuracy: | 5m | Application: | Pet Dog Animal |
| Battery: | 5000Mah | Function: | Remote Voice Monitoring |
| GPRS Chip: | MTK6261 | ||
| High Light: | vehicle gps tracking device,car gps tracker device |
||

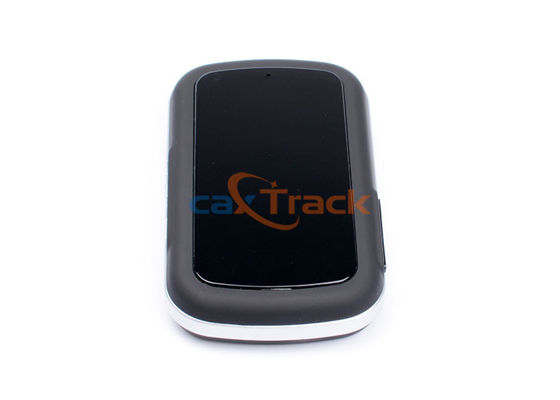

Large Battery Outdoor GPS Tracker Geo-fence Remote Voice Monitoring
Performance Parameters:
|
Content |
Specs. |
|
Dim |
105*60*20mm |
|
Weight |
0.2kg |
|
Network |
GSM/GPRS |
|
Band |
850/900/1800/1900MHz |
|
GPS chip |
Ublox-7 |
|
GPS sensitivity |
-159dBm |
|
GPS accuracy |
5 m |
|
Time To First Fix |
Reacquisition 0.1s |
|
Work Voltage |
DC 3.7－4.5V |
|
Battery |
Chargeable changeable 3.7V / 5000Mah |
|
Standby work current |
< 30mA |
|
Storage Temp. |
-40°C to +85°C |
|
Operation Temp. |
-20°C to +70°C |
|
Humidity |
5%--95% non-condensing |
Description:
1. Online web platform, the historical and current location can be checked.
2. GPS Tracker Device E-fence function.
3. GPS Tracker Device Hijack alarm, 9 SOS numbers can be preset.
4. GPS Tracker Device Remote voice monitoring.
5. Low battery alarm.
6. GPS Tracker Device Inlayed 3D accelerator,moving and static state, energy smart.
1. Google link: click link, there is map when positioning ok, no map means no positioning.
2. V:A GPS signal ok.V:V no GPS signal
3. 2013-08-30 20:54:15: the last time receive GPS signal.
4. Spd:000km/h: the speed of tracker ran. 5. Bat:6 battery balance(the range is from 1 to 9)
6. ID:4102000759: ID code of device(used for connect tracking website or APP)
7. S19G04；plmn:46001 GSM operator data 8.Lac:9516,cellid:23596 LBS data
Detail Pictures:
Applications:
1. Vehicle rental / Fleet management etc
2. Outdoor sports
3. Protect children / elder/ Asset/ pet and so on
4. Provide peace‐of‐mind for businessmen
5. Personnel Management
6. Criminals Tracking
Pet shop, pet company, ,GPS producer, large-scale shopping malls, exclusive agency, chain shops, large-scale sales,
Gurantee:
1. All of our product is free to use the Tracking service server in 24 hours each day
2. All of our product there is a 2 year quanlity assurance.
3. Sample fee will not be returned.
Product Configuration:
1. Standard configuration
1) main device 1 pcs
2) charger 1 pcs
3) Installation cables 1 set
4) Usage instructions
5) Warranty card
6) Certification
