Capacitive Diesel Fuel Tank Level Sensor 0-5V Analog Output For Oil GPS Tracking
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Output: | 0-5V, RS485, RS232 | Item: | Capacitive Oil Level Sensor |
|---|---|---|---|
| Warranty: | One Year | Supply Voltage: | 10-32V Or 5V |
| Resolution: | 1mm | Operational Temperature: | - 40 ~ +85°C |
| Material: | Aluminum Alloy | Application: | GPS |
| High Light: | Capacitive Diesel Fuel Tank Level Sensor,IP65 Fuel Tank Level Sensor,GPS Tracking ultrasonic fuel level sensor |
||

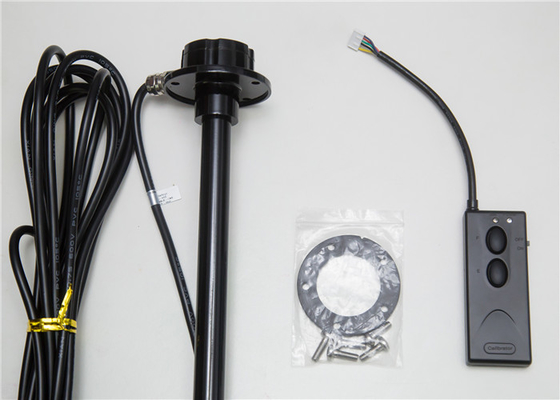

0-5V Analog Output Capacitive Diesel Fuel Tank Level Sensor for Oil GPS Tracking
Specifications of fuel tank sensor
|
Items
|
Descriptions
|
|
Sensor length (name sensor height too)
|
Cuttable 700mm, any length is available within this range
|
|
Cut off
|
Yes, can be cut off according to fuel tank height
|
|
Installation way
|
Need drill a hole on fuel tank
|
|
Measure Result Accuracy
|
97~98%
|
|
Resolution
|
≤1mm
|
|
Wide range of power supply
|
DC10V-32V
|
|
Maximum operating current
|
＜15mA
|
|
Output signal type
|
0~5V analog type (Default), RS232 (optional)
|
|
Working temperature
|
-40~85℃
|
|
Protection rank
|
IP65
|
|
Material of the tubes
|
Aluminum alloy
|
|
Application environment
|
Diesel, gasoline, kerosene (cannot be used in conductive medium like the water)
|
|
Applicable tank
|
Only applicable in tank which has the same cross-sectional area from top to bottom, the tank height should be great than 200mm.
|
|
Supported GPS tracker
|
Any brand GPS trackers have analog input
|
Application of fuel tank sensor
- Taxi fleet management
- Vehicle Fuel Consumption and Usage Monitoring
- Fuel Tank Truck Monitoring
- Fuel Storage Tank Remote Monitoring
- Fixed Asset/Generator Set Diesel Tank Remote Monitoring
Product Features of fuel tank sensor
- Used for diesel, gasoline level measuring
- Length: 200-3000mm, length could be trimmed and re-calibrated in the field, fits different tank sizes,minimizing customer inventory level
- High resolution: 1mm
- Output signal: 0-5V/0.5-4.5V voltage or RS232 or RS485, can be customized
- Installation: SAE standard 5 holes flange, other installation methods are available
0-5V Analog Output Capacitive Diesel Fuel Tank Level Sensor for Oil GPS Tracking
FAQ
Q: Are you the final manufacturer?
A: Yes, We are GPS Tracker and SENSOR exporter in china with 10+ years experience
Q: Do you offer the OEM service?
A: Yes, we can offer OEM service and design the logo marking for you. But the minimum quantity is 10pcs for the first order .
Q: Do you offer free samples?
A: Sorry , we do not offer free samples . You should pay for the samples and freight cost.
Q: What payment ways do you accept?
A: You can pay us by T/T , PayPal , and West Union .
Q: What is your delivery time?
A: It is in 6-8 working days since the payment confirmed . If quantity is more than 100pcs /order, it will need extra 3-5 working days .
Q: What is your normal delivery way?
A: Goods will be sent by DHL / FEDEX / UPS / EMS / TNT / or other proposed forwarders.
Q: How is your quality assurance service?
A: Our service is free exchange within one month and 12 months quality guarantee
Q: Could we make a visit to your factory?
A: Yes, you are welcomed . But before that, we will do the visiting investigation.
