RS232 5V Ultrasonic Fuel Sensor Support GPS Non Contact No Need Drilling Hole
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Application: | Fuel Consumption Monitoring Projects For Vehicles | Accuracy: | ±1% |
|---|---|---|---|
| Output Signal: | 0~5V/RS232 | Working Humidity: | 5%~90% |
| Power Supply: | 9~36VDC | Used Widely: | Car/vehicle/truck Oil/fuel Bank |
| Liquid Measurable: | Diesel, Gasoline | Measurement Scope: | 5~100cm (for Steel Plate Of 5mm Thick) |
| High Light: | RS232 Ultrasonic Fuel Sensor,5V Ultrasonic Fuel Sensor,Ultrasonic GPS Fuel Sensor |
||

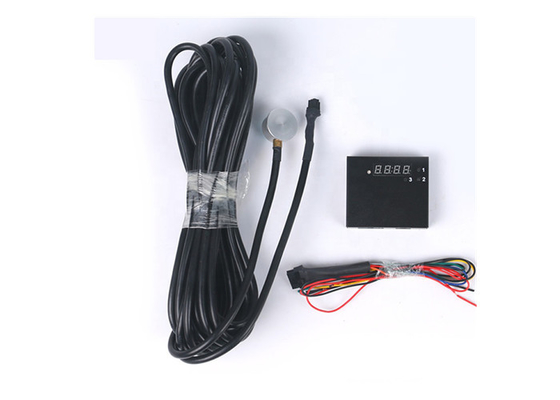

RS232 0-5V Ultrasonic Fuel Sensor Support GPS Non Contact No Need Drilling Hole
Technical parameters of Digital Ultrasonic Fuel Oil Tank Level Sensor
| Operating voltage | 9~36VDC |
| Maximum power consumption | 0.8W/12VDC |
| Work temperature | -40℃~+85℃(Industry level) |
| Working humidity | 5%~90% |
| Measurement range |
5~100cm (For steel plate of 5mm thick, determined according to materials and thickness of the container) |
| Pressure bearing scope | ≤0.8kg or 0.8MPa |
| Liquid measurement accuracy | ±1% |
| Equipment interface | Provide output port of analog voltage/current, RS232 and RS485 data port. |
| Communication port parameters |
The default baud rate is 9600. No check bit, 8-digit data bits, 1-digit stop bit and no fluid control. The liquid level value measured by the sensor in a real-time manner is given per 10s after smoothing processing. Note: The baud rate and interval of data transmission can be customized. |
Applicable of Ultrasonic Fuel Tank Sensor
The ultrasonic fuel level sensor is geared to all types of vehicles (such as logistics vehicles, taxi, buses and passenger cars, etc) to record the refueling, oil consumption of vehicles with digitalization to prevent occurrence of fuel theft, avoid resources waste, improve management efficiency and traffic safety and enhance operation management level.
Ultrasonic fuel level meter( oil level /diesel level /fuel level sensor ) is used for fuel level measurement in vehicle fuel tanks, in order to control fuel consumption. The measurements are realized by the ultrasonic sensor installed directly on the external bottom part of the fuel tank and data processing box. The ultrasonic fuel level meter can measure levels of diesel and petrol or other liquid materials depending on software settings. It has several analog and digital interfaces. It could be connected to terminal equipment such as GPS/ GPRS transmitter via 0-5V and RS232 interfaces. It can realize remote monitoring.
RS232 0-5V Ultrasonic Fuel Sensor Support GPS Non Contact No Need Drilling Hole
FAQ
Q: Is your company a manufacturer??
A: Yes,we are a professional manufacturer of online water quality monitoring products: oil in water sensor/ DO sensor/ NH4-N sensor / ORP / COD sensor / Blue-green algae sensor /Conductivity sensor /TDS / TSS /MLSS,ect.
Q: What parameters do you need for product selection?
A: Application, Range, Power supply and Output signal.
Q: How about the quality of the managements?
A: We have a complete quality control system, our products will be fully pre-inspection before shipping to you. We have the certification of ISO, CE, we could send the certification test of our company to you.
Q: Can you offer OEM services?
A: Yes,we support OEM and ODM products according to your requirements.
Q: What are your terms of payment and delivery time?
A: We could accept T/T, Paypal, Western Union, Credit Assurance. Generally, we will arrange the shipment within 7 days after received payment.
Q: How about warranty?
A: 12 months warranty
