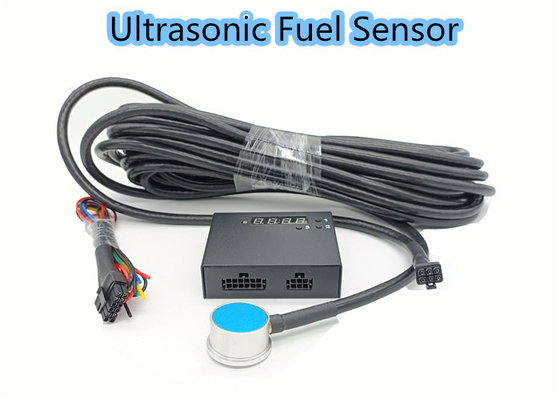

Non Contact Ultrasonic Fuel Tank Sensor Easy Installation RS232 For Truck Car Vehicle

Non Contact Ultrasonic Fuel Tank Sensor Easy Installation RS232 For Truck Car Vehicle
Non Contact Ultrasonic Fuel Tank Sensor Easy Installation RS232 For Truck Car Vehicle Non Contact Ultrasonic Fuel Tank Sensor Easy Installation RS232 For Truck Car Vehicle Non Contact Ultrasonic Fuel Tank Sensor Easy Installation RS232 For Truck Car Vehicle Non Contact Ultrasonic Fuel Tank Sensor Easy Installation RS232 For Truck Car Vehicle

Large Image :  Non Contact Ultrasonic Fuel Tank Sensor Easy Installation RS232 For Truck Car Vehicle Get Best Price

Product Details:
Place of Origin: China
Brand Name: Blank
Certification: CE/ROHS/FCC/SGS ISO9000
Model Number: TUB_10
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: Packed in carton firstly
Delivery Time: 1-10 working days after received your payment
Payment Terms: T/T or western Union or paypal
Supply Ability: 10,000pcs per month
Detailed Product Description
Operating Voltage: 9~36VDC Maximum Power Consumption: 0.8W/12VDC
Work Temperature: -40℃~+85℃(Industry Level) Working Humidity: 5%~90%
Measurement Range: For Steel Plate Of 5mm Thick, The Measurement Scope Is 5~100cm. Drill Hole: No Need
Warranty: 12month Liquid Measurement Accuracy: ±1%
High Light:

Ultrasonic Fuel Tank Sensor

,

RS232 Fuel Tank Sensor

,

FCC Fuel Level Sensor

Non Contact Ultrasonic Fuel Tank Sensor easy installation output 0-5V RS232 for truck/car/vehicle



Features & Specifications
⚫ No Drilling Holes in Tank, Easy Installation
⚫ Support Any Liquid: Diesel, Gasoline, etc.
⚫ Support Any Material Tank: Metal/Aluminum/Stainless Steel /Fiber/Plastic
⚫ Resolution: 0.1mm
⚫ Accuracy: 99.5%
⚫ Maximum Measuring Range: 100cm (for steel plate of 5mm thick)
⚫ Output Interface: R(10~190Ohm)+ RS232 +Analog(0~5V)



Technical parameters

Operating voltage 9~36VDC
Maximum power consumption 0.8W/12VDC
Work temperature -40℃~+85℃(Industry level)
Working humidity 5%~90%
Measurement range

5~200cm (For steel plate of 5mm thick, determined according to materials and thickness of the container)

(300cm can be Customized )

Pressure bearing scope ≤0.8kg or 0.8MPa
Liquid measurement accuracy ±1%

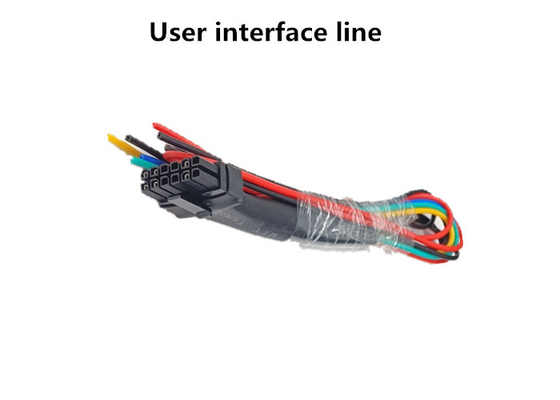

Equipment interface Provide output port of analog voltage/current, RS232 and RS485 data port.





Non Contact Ultrasonic Fuel Tank Sensor Easy Installation RS232 For Truck Car Vehicle 0

Product characteristics

High precision: The resolution ratio of oil level height measurement of the oil level sensor is 0.1mm and the measurement accuracy is ±0.5%. High measurement accuracy can be guaranteed at high temperature and high cold external environment.



Good long-term stability: The oil level sensor adopts ultrasonic wave measurement method and performs non contact measurement. It is different from the float-type, pressure type, magnetic sliding system measurement methods that adopt direct contact measurement methods at present generally so as to avoid corrosion and pollution of oil level sensor by fuel oil and maintain long-term stability.

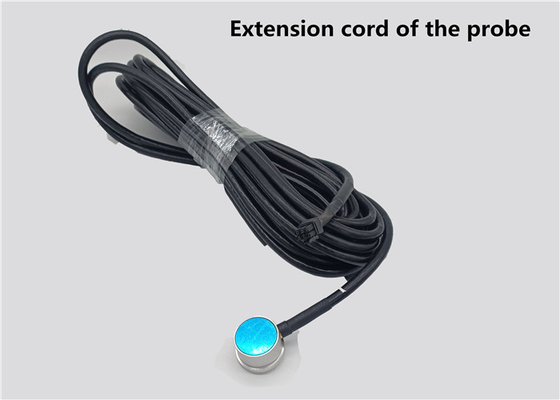

Easy installation and maintenance: It only needs to install the sensor probe at the lower part of external fuel tank. There is no need to change the existing measurement system of the fuel tank, no need to drill hole and make change on the fuel tank. At the same time, it can guarantee normal operation of former oil meter of vehicles.



Environmental sound, small energy consumption. Non contact measurement makes it unnecessary to bore hole on or modify the fuel tank. No dirt and pollution will be brought to the fuel oil.



Strong reliability: Still work normally at hostile environment; anti-damp, anti-acid, inflaming retarding, anti-interference and Intelligent.

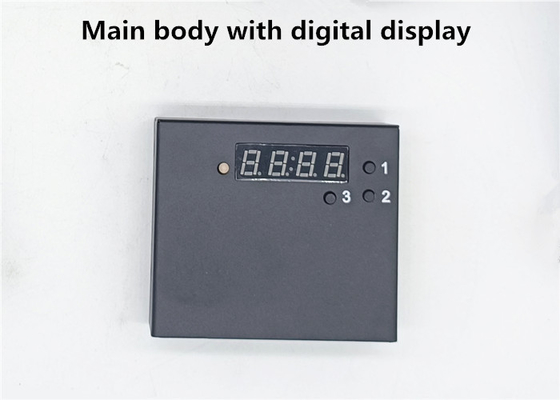

The product can be used independently by using the auxiliary display screen. It may also be used with GPS equipment by transferring the data to backstage through GPS equipment for data statistics, statement analysis and query.

Non Contact Ultrasonic Fuel Tank Sensor Easy Installation RS232 For Truck Car Vehicle 1



Ultrasonic Level Sensor Wireless Fuel Level Sensors Non Contact Media Digital Display

FAQ

Q: What parameters do you need for product selection?
A: Application, Range, Power supply and Output signal.
Q: How about the quality of the managements?
A: We have a complete quality control system, our products will be fully pre-inspection before shipping to you. We have the certification of ISO, CE, we could send the certification test of our company to you.
Q: Can you offer OEM services?
A: Yes,we support OEM and ODM products according to your requirements.
Q: What are your terms of payment and delivery time?
A: We could accept T/T, Paypal, Western Union, Credit Assurance. Generally, we will arrange the shipment within 7 days after received payment.
Q: How about warranty?
A: 12 months warranty

Non Contact Ultrasonic Fuel Tank Sensor Easy Installation RS232 For Truck Car Vehicle 2
