Product Details:
Payment & Shipping Terms:
|
Type: | Global Gps Tracker 2G | OS: | No System |
---|---|---|---|
Placement: | In-Dash 2DIN | Connection: | 2G Sim Card |
Brand Name:: | Support Customized | Work Voltage:: | 9-100V DC |
Warranty: | 1 Year | Feature: | Geo-fence, |
High Light: | GPRS GPS Realtime Car Tracker,ACC GPS Tracking Device,ACC Detected Car GPS Tracker |

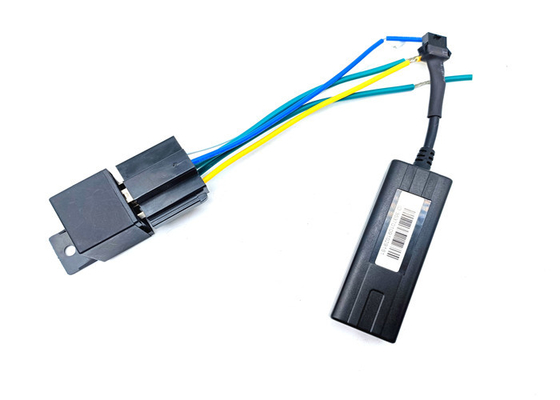

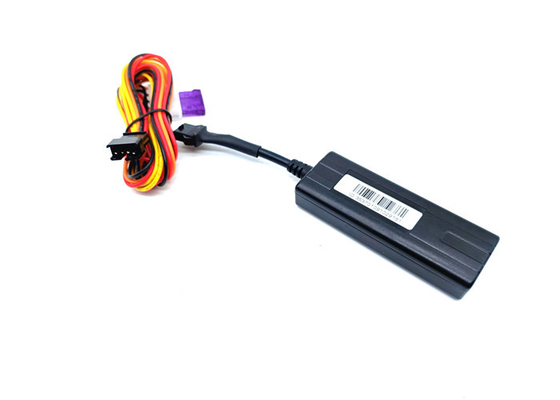

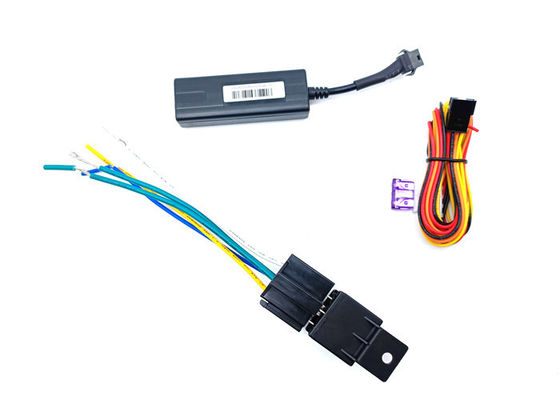

Anti-Theft Real Time GPS LBS Positioning TK003 GPS Tracker With Vibration Alarm
TK003 is a kind of mini GPS vehicle tracking product can be used for tracking and security of motorcycle and automobile etc. Mini size, built-in antenna and waterproof designed, easy to be installed and concealed, with power voltage range from 9V~100V,therefore can satisfy tracking and security demands for all kinds of vehicles.
Specification
Items | Parameters |
2G Module | 2G MTK6261 |
4G Antenna | 100-500m |
GPS Sensitivity | -159 dBm |
GPS Chipset | U-blox7 |
GPS Positioning Accuracy | 5-10m, 2D RMS |
Working Voltage | 9VDC~100VDC |
Working Current | <30mA |
Operating Temperature | -20℃—70℃ |
Humidity | 20%—80% |
Size | 76mm × 26mm × 15mm |
Simcard | Normal simcard |
Battery | Rechargeable battery 180mAh |
Internal battery Standby | <1h |
Features:
1. Quad-band, GSM frequencies 850/900/1800/1900MHz
2. MTK6261 GPRS model , Ublox-7 GPS model
3. Sleep model
4. Compact size, easy for hiding
5. Low energy consumption
6. Cut oil or circuit (relay is optional )
7. Power cut off alarm
8. Acc ignition detection
9. Built-in battery is 180Mah
Interval tracking
The terminal can upload location information automatically according to the set interval time
Virtual fence
Any area can be set as virtual fence, and time period can be added to the fence. Once the terminal gets in and out of the fence in this period, the system will alarm immediately
Blind area tracking
When the terminal can track but is in the network blind area, it can automatically store the tracking data and automatically transmit it when the network signal is normal
Historical track
You can query the historical track of the terminal at any time
Anti-Theft Real Time GPS LBS Positioning TK003 GPS Tracker With Vibration Alarm
FAQ
Q: Are you a manufacturer?
A: Yes, we have been focusing on the development and production of high-precision tracking for more than 10 years.
Q: Do you need SIM card from cellular service provider?
A: Yes, the bracelet needs to be inserted into the SIM card.
Q: How do I track the location of the car?
A: You can use our free PC and app software to track the location of the car.
Q: Can you provide SDK or API for us to make our own applications?
A: Yes.
Q: What is your minimum order quantity?
A: We accept a formal order of at least 1 sample and at least 100 units.
Q: Do you accept OEM / ODM?
A: We can use your logo and package for you, and free of charge, you can also modify the hardware and software according to your requirements.
Q: Can you send samples free of charge?
A: You are required to pay for the sample and transportation.
Q: What is the final price?
A: The final price depends on the quantity of your order.
Q: What are your payment terms?
A: 30% deposit TT and 70% balance TT before shipment. You can also pay through Alibaba.
Q: When do you deliver the goods?
A: The sample takes 1-3 days; the bulk order is about 15-45 days according to the quantity.
Q: What mode of transportation can you offer?
A: According to the customer's request, shipping / air transportation is OK.
Q: How long is your guarantee?
A: We offer 12 month guarantee.
