TK003 Quad Band GPS GSM GPRS GPS Tracker Burglar Alarm System Free Platform Service
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Type: | 2G Mini GPS Tracker | GPS Chip: | MTK6261 |
|---|---|---|---|
| GPS Accuracy: | 5M | Product Size: | 76*26*15mm |
| Network: | GSM/GPRS 850/900/1800/1900MHz | Warranty: | 1 Year |
| Brand Name: | OEM | Use: | Automotive |
| High Light: | GPRS GPS Realtime Car Tracker,ACC GPS Tracking Device,ACC Detected Car GPS Tracker |
||
TK003 Quad Band GPS GSM GPRS GPS Tracker Burglar Alarm System Free Platform Service
Specification
GPS bands: GSM 850/900/1800/1900 Quad band
GPRS: Class 12, TCP / IP
GPS sensitivity: -159dBm
Acquisition sensitivity: -144dBm
Position accuracy: 10 m
Distance report: Followed by time / distance interval
Working voltage: 9 V-100 V DC
Input voltage: DC 9-24 V (plug and use)
Working temperature: -20-70 centigrade degrees
Features
- Location investigation by SMS / GPRS (class 12)
- GPS followed by time interval via GPRS (30-360s)
- Real-time location tracking via SMS
- Password needed to change and setup, protect your privacy, use it safely
- Wide input voltage, suitable for all cars
- Auto power on when connecting to the power
- APP for Android and Apple portable device
- Locate current position by GPRS / SMS
- Track by time interval via GPRS
- Built-in GSM and GPS antenna
- Only support 2G GSM SIM card

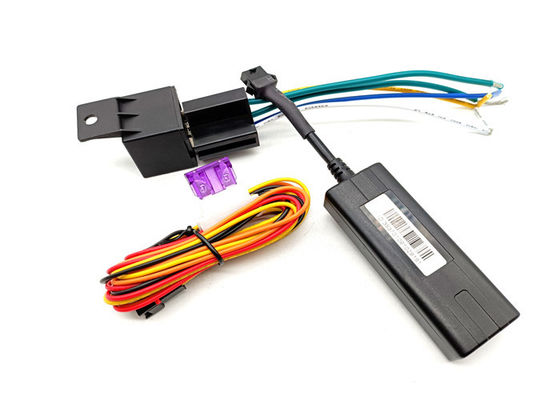

1. Remotely Cut Off & Resume Fuel
Once your vehicle was stolen or meet any emergency, you will can remotely cut off the fuel via SMS command or APP to stop the vehicle, of course you also can resume the fuel remotely.
2. GPS+LBS Double Positioning Ways
If the gps signal is good, the device will locate via gps satellite, if not, the device will locate via LBS! Under GPS locating mode, the accuracy is 5-10 meters, under LBS locating mode, the accuracy is 100-1000 meters!
3. Realtime Tracking
You will can realtime track the device on google maps via mobilephone, tablet and computer, and the minumum data upload interval is 10 seconds!
4. History Route Playback
The APP and web server can record the upload data of the device up to 6 months, you will can playback the history route at any time!
5. Overspeed Alarm
This alarm works only under continuous positioning mode.When the unit speed is exceed the speed you presetted, it will send message ldquospeed alarm!rdquo to the admin number every 5 minutes.
Parameters
| Items | Parameters |
| GSM Module | MT6261 |
| GSM Frequency | 850/900/1800/1900 MHZ |
| LBS Positioning Accuracy | 100-500m |
| 4G Antenna | Built-in |
| GPS Chipset | U-blox |
| GPS Sensitivity | -159 dBm |
| GPS Frequency | L1, 1575.42 MHZ |
| GPS Positioning Accuracy | 5-10m, 2D RMS |
| GPS Antenna | Built-in |
| Working Current | 22mA(12V DC) 12mA(24V DC) |
| Operating Temperature | -20℃—70℃ |
| Humidity | 20%—80% |
| Size | 76 mm ×26 mm × 15mm |
| Simcard | Normal simcard |
| Battery | 180mAh |
TK003 Quad Band GPS GSM GPRS GPS Tracker Burglar Alarm System Free Platform Service
FAQ
Q. How long is the warranty?
A. We offer 1-years-warranty
Q. What's the MOQ?
A. 1pc. We welcome clients to order samples to test quality.
Q. How long is the delivery time?
A. Sample order 3-5 working days, bulk order 7-15 working days.
Q. What is the package?
A. Neutral color box. We can label it with your own brand.
Q. Can I Print My Logo On The Product?
A. Yes, we accept customization on product.
