Product Details:
Payment & Shipping Terms:
|
Connection: | 2G Sim Card | Use: | Gps Tracking |
---|---|---|---|
Working Voltage: | DC9-100V | Dimension: | 76*26*15mm |
Battery: | 180mAH | Placement: | PORTABLE |
Warranty: | 1 Year | GPS Accuracy: | 5-10m |
High Light: | GPRS GPS Realtime Car Tracker,ACC GPS Tracking Device,ACC Detected Car GPS Tracker |

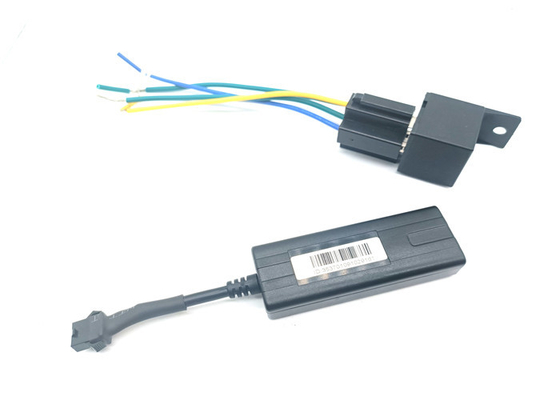

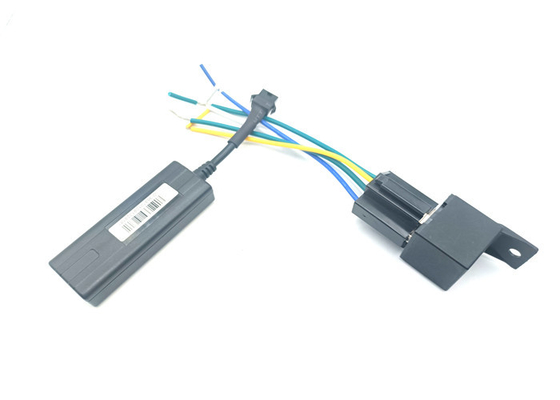

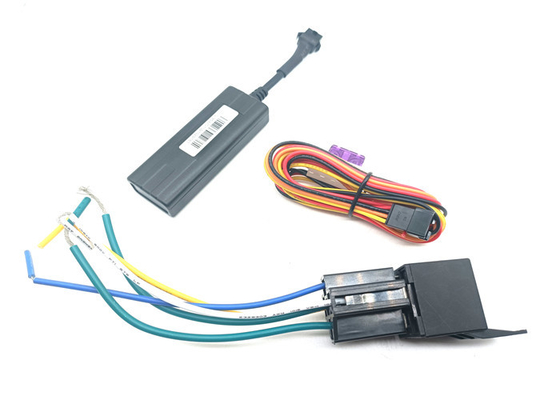

Mini Gps Tracker 2g Google Map Support Free App Platform For Vehicle No Monthly Fee
TK003 is GPS tracker working base on network and monitor any remote targets with built-in antennas by SMS or GPRS.With its compact design,the device can easily connect with battery to acquire real time data,such as car position ,ignition status,speed data,also can remotely disable the engine to stop car for anti-theft purpose,And all these in information will be upload via GPRS to server for further analysis,statistics ,storage and more extensive application.
Parameters
Content | Specs. |
Dimension | 76mm x 26mm x 15mm |
Weight | 34g |
Network | GSM/GPRS |
GSM Band | 850/900/1800/1900Mhz |
GPS chip | MTK6261 |
GPS sensitivity | -159dBm |
GPS accuracy | 5m |
Cold start | 38 sec. |
Warm starts | 32 sec. |
Hot start | 2 sec. |
Battery | Chargeable3.7V 180mAh battery |
Operation temperature | -20°C to +70°C |
Humidity | 5%--95% non-condensing |
Common Functions
1.Real-time tracking
2.GPS+LBS triple positioning
3.ACC detection
4.Cut off oil and power
5.Electric fence
6.Historical track
7.Vibration alarm
8.Speeding alarm
9.moving alarm
10.Multiple device management
Low power scheme
Direct from the car battery, no manual charging, no power consumption and No damage to the battery, less time and worry than wireless charging GPS Not foRmention the fear of a power outage while chasing a car thief
History playback
user can playback vehicle past location details
geo-fence
when vehicle move in or out preset geo-fence, there is instant alarm
Over speed
When vehicle speed reaches speed limit, there is instant alarm
Vibration Alarm.
There is a vibration sensor in the gps tracker. When the sensor detects the device vibration, it will send out an alarm message. The change function is more sensitive and is used for vehicle anti-theft. It is recommended to turn off when the vehicle is driving.
Mini Gps Tracker 2g Google Map Support Free App Platform For Vehicle No Monthly Fee
FAQ
Q1: Can I order samples for testing before placing the bulk orders?
Answer: yes, you can order samples, MOQ=1pcs.Delivery time is 1~3 working days.
Q2: I have my own tracking system, can you provide your protocol for our integration?
Answer: Yes, please contact our sales to get the GPRS protocol for your integration.And our techincal teams will support you directly 24/7 when you need.
Q3: We have some specific projects that may need to modify your products, can you customize for us?
Answer: Yes, we are very flexible on customization, not only on GPS software modification, but also on GPS hardware changes or new design. Feel free to share your need to us.
Q4: What is your warranty time of the gps tracker?
Answer: 2 Years warranty for gps trackers, 1 year warranty for its accessories.
Q5: Can we add our company logo on your gps tracking device and its box?
Answer: Yes, you can.Please contact our sales to place the orders.
