Warranty: | 2 Years | Software Support: | Web Tracking System , Mobile APP |
---|---|---|---|
Network: | GSM GPRS | Placement: | ROOF, In-Dash 1DIN, In-Dash 2DIN |
Function: | Speed Warning | Brand Name: | YTWL Or Blank |
Color: | Black | Alarm: | Over Speed, Geo-fence Alarm |
High Light: | SIM800C Vehicle Speed Limiter,ES6413 Vehicle Speed Limiter,Speed Warning GSM GPRS Limiter |
Ethiopia Standard ES6413 Vehicle Speed Limiter With Data Recorder GPS Tracking System
Technical Parameter:
GPS chip | U-blox |
GSM/GPRS Module | SIM800C |
Bluetooth Module | BT360I |
CPU | STM32F105RBT6 |
Power IC | TD1509-ADJ |
Anti-jamming | Strengthened Anti-jamming |
GPS sensitivity | -159dBm |
GPS accuracy | 5 m |
Work Voltage | DC 9V-36V |
Battery | Rechargeable 3.7V / 1000mAh Li-ion battery (Customizable) |
Standby work current | < 40mA |
Storage Temp. | -40°C to +85°C |
Operation Temp. | -20°C to +70°C |
Humidity | 5%--95% non-condensing |
Speed Limit Scope | 40-120KM/H |
Frequency | 850/900/1800/1900Mhz |
Working Power | 5w |
Time To First Fix | Reacquisition 0.1s Cold status 45s Warm status 35s Hot status 1s |
Product description

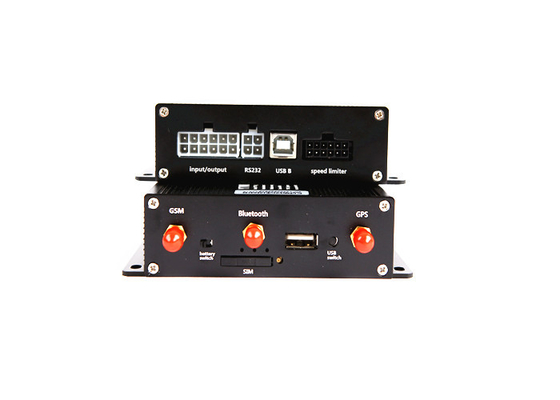

1. 12 PIN interface
2. ODOmeter to detect speed of vehicle
3. 1 U-disk interface (download record data)
4. Support bluetooth printer and RS232 printer
5. Overspeed alarm and speed limited (limiter 30KM/H while speed wire disconnect)
6. Alarm buzzer while overspeed
7. Inbuilt backup battery 1000mAH(Customized)
8. update position per 5 seconds, save position data into memory for 72 hours
9. Configure by USB /SMS/GPRS.
10. Micphone&earphone interface:3.5mm
11. Support TCP/UDP/HTTP protocol
12. support bluetooth pritner and U disk download data in memory
13. Work voltage: 9V~ 36V
14. Operating Temperature:-45°C ~85°C
15. Standby working current:<40mA
16. Humidity: 5%~95%
Product feature
Real Time GPS tracking
Speed governor
Support printer
Geo_ fence alarm
Original car alarm
Car anti-theft
Fuel monitoring
1. Real time uploads location information via time/distance interval
2. Real-time Positioning & Tracking by SMS or internet
3. Geo-fence & Over Speed Alert
4. Fuel level Monitoring
5. Remote controlling oil & circuit by SMS or internet
6. Special Vehicle Monitoring (dump trucks pouring, mixers rotating, etc.)
7. Built-in backup battery ,low battery alert ,unauthorized dismantle alert
8. Fuel sensors ,Temperature sensor, Flash memory (optional)
9.Support google map
10.Show location directly on mobile phone with HTTP google map link
11.Absolute street address request by SMS.
Ethiopia Standard ES6413 Vehicle Speed Limiter With Data Recorder GPS Tracking System
Our Service
1. We provide free web tracking system, Android and IOS APP.
2. Our device can send data to your own server, we can provide SDK and API for integrate
3. we can guide you to install the tracking system into your server if you have own server.
4. We provide OEM and ODM services.
5. Warranty: 24-month
FAQ:
Q: Howcanibuyit?
A: We accept T/T, Western Uniton and Payapl. After we receive your payment.
Q: If we have our own tracking platform, can we use our platform?
A:yes, we can send protocol for you to integrate, then you can use your own tracking platform tracking it.
Q: What's the lead time if we place order to get the parcel.
A:usually we have goods in stocks, need about 2-3 days to ship, if order more than 500 units, we will need about 1-2 weeks lead time.
Q: Do you offer OEM service, what is the condition?
A:yes, our MOQ is 500 PCS To start OEM.
