Product Details:
Payment & Shipping Terms:
|
OS: | No System | Connection: | 3G/4G Sim Card, 2G Sim Card |
---|---|---|---|
Use: | Automotive | GPS Positioning Accuracy:: | 5m |
Power Supply: | Vehicle Battery | Placement: | Front, Under, Rear |
Function: | Cut-off Engine | Warranty: | 1 Year |
High Light: | 5m SMS GSM Tracking Device,80VDC SMS GSM Tracking Device,2D RMS Vehicle GPS Tracker |

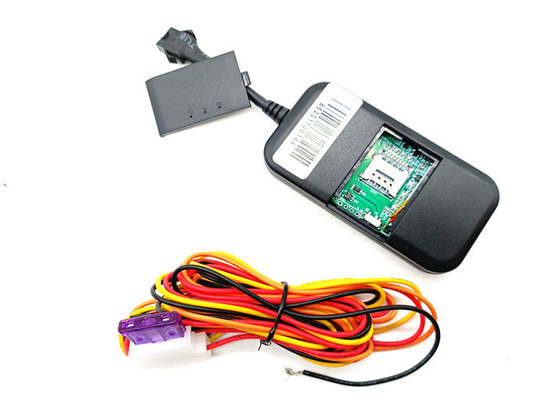

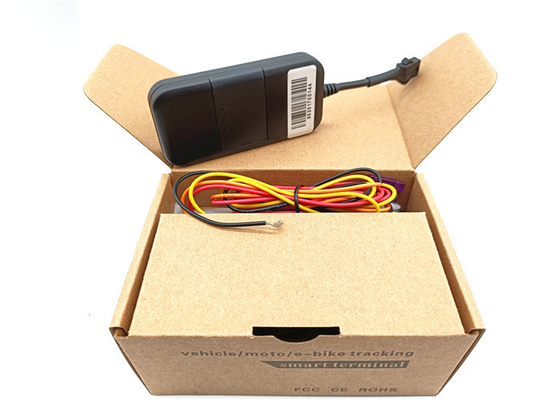

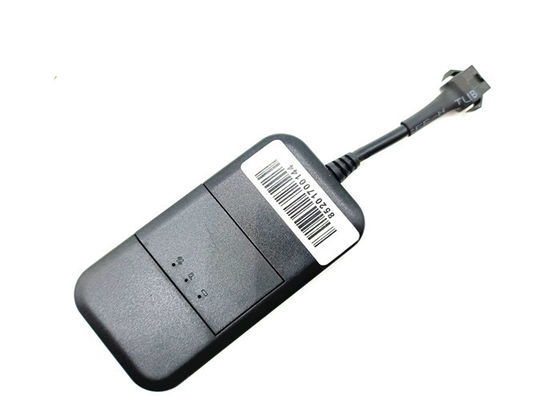

Vehicle Motorcycle Truck GPS SMS GSM Tracking Device wit platform no monthly fee
Specification
Item | Parameters |
GSM Module | MT6261 |
GSM Frequency | 850/900/1800/1900Mhz |
LBS Positioning Accuracy | 100-500m |
GPS Chipset | U-blox |
Size | 88mm*44mm*15mm |
GPS Sensitivity | -159 dBm |
GPS Positioning Accuracy | 5-10m, 2D RMS |
Warranty | 1 years |
Tracking software | Free Websited based platform and Mobile APP |
Work voltage | 9VDC-80VDC |
Working Current | 12ma(24vDC)/22ma(12vDC) |
Operating Temperature | -20℃—70℃ |
Battery | Built-in 200mAh |
Feature
One account can manage multiple devices, realize multiple vehicles and monitor at the same time
Positioning methods
GPS+LBS
Tracking method
Web Platform, free Android/IOS APP
Multi Query Method
Computer, Mobile APP, SMS (Support Multi-language)
Alarm Methods
Vibration Alarm
When the vehicle is in a defense state, if it vibrates severely, and the duration exceeds 10 seconds, the device will trigger a vibration alarm
Power Failure Alarm
The device has a built-in lithium battery. When the external power supply of the device is disconnected, the platform will send an alarm message to the car owner via SMS or phone call
Movement Alarm
After the device turns on the movement alarm function, when the device is armed, a movement alarm will be triggered when the vehicle moves and exceeds the set range
Fence Alarm
When vehicles enter and exit the fence you set up, such as your residence or work place, the platform will promptly send reminders
Over-speed Alarm
For your safety, when the vehicle speed exceeds the set value, the platform will send an alarm message
Vehicle Motorcycle Truck GPS SMS GSM Tracking Device wit platform no monthly fee
FAQ
1.Why does the device shows “offline” on platform?
1).Reinstall or Recharge for the device to make it online is ok.
2)Check if you should recharge for the sim card for enough data.
3).Check if the apn, IP,port has been set in a right way.
2.Why does the gps device shows incorrect positioning? Or why my device shows it’s in China? Why my device show it is in the sea?
That’s the last location of the gps tracker before shipping.
Or the device can’t find gps signal, it shows incorrect location.
Please put the device in open area for better gps signal. (near the window or take it out of the house and go to street)
3.Why the tracking device shows incorrect time?
Please update the correct timezone for your device on platform.(APP doesn’t support timezone change)
4.How to choose sim card?
Please confirm 2G network still work in your country or not and make it clear what kind of tracking device you are going to buy?( 2G/3G/4G).
Make sure the sim card you buy supports 2G/3G/4G frequence bands and it come with that the card has enough currency and credit to support at least 30MB data petr month.
And the sim card can work without password, that means it didn’t come with pin code.
5.How can I tell if the gps tracker locate in a right way or not?
1).check if the location address is right or not.
2).check if the location way is correct or not: shows GPS+LBS
3).Check if the time is right or not.
6.Why device doesn’t response to sms commands?
1).check if insert the sim card right and well
2).check if sim card with credit
3).check if sim card support your device frequency bands or not
4).Is there a pin code on the sim card? If yes,please contact sim card operator to help cancel it, or try another sim card from different operator.
