Type: | MINI, Hard Wired | Positioning Mode: | GSM, GPS, GPRS, LBS, |
---|---|---|---|
Backup Battery Life (Hour): | <1H | Model Number: | TK003 Or Customized |
Size: | 76*26*15mm | Weight: | 34 Grams |
Color: | Black | OEM: | Accpet |
High Light: | 26s Location Vehicle Gps Tracker,MTK MT6261 Vehicle Gps Tracker,180mAh Real Time GPS Tracker |
2G Real Time Position Mini Gsm Gprs Vehicle Gps Tracker With Vibration Sensor Sleep Mode

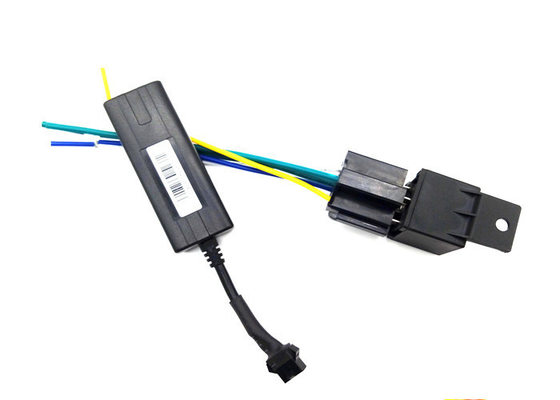

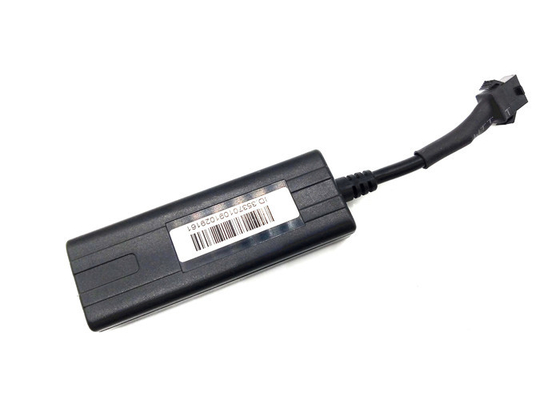

TK003 is a real-time GPS tracker that hardwires directly into your vehicle, for discreet, long-term tracking.
You can also track unlimited devices under one account.
Specification
Type | Specification |
Unit Size | 76.0X28.0X14.0mm |
Color | Black |
Battery | 180mAh |
SIM Card Slot | One |
Vibration Sensor | Support |
I/O | ACC Detection, Engine Cut |
Chipset | MTK MT6261 |
GPS Chipset | UBX G7 |
GPRS Channel | Class12 |
GSM+GPRS+GPS | GPS Location |
AGPS | Location in 26seconds |
Geo-fence | Geo-fence alarm support |
History Trace | History Repor |
Common Functions
1. Real-time tracking
2. GPS+LBS triple positioning
3. ACC detection
4. Cut off oil and power
5. Remote Monitoring
6. SOS button(Optional SOS button)
7. Electric fence
8. Historical track
9. Vibration alarm
10. Over speeding alarm
11. Multiple device management
Real Time Tracking
Satellite-enabled Google Maps makes it easy to view locations,addresses, and routes right in the app and webiste.
History Route Playback
Easy to use tracking application provides history reports mapping all past locations, speed, addresses with dates and times. Automatic updates gives you a real-time view of what is happening for any situation.
Geo fence
You can set an area, when the gps tracker is enters/exit of the boudary you set, device will send alert to your mobile phone and our gps platform.

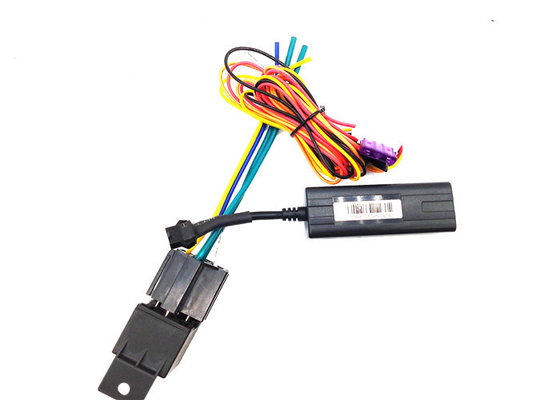

Remote Turn on/off car engine(Optional)
Connect relay with gps tracker, then you can send sms command to turn on/off car engine. This is how the relay works: When receive the command success, it will cut 0.1 second, then recover 0.1 second, cut 0.1 second, then recover 0.1 second, repeat. till 1 minute later, it cut the engine.For security reason, only when speed is less than 20KM/H it can cut success.
2G Real Time Position Mini Gsm Gprs Vehicle Gps Tracker With Vibration Sensor Sleep Mode
FAQ:
1. Why my devcie show off line on platform
This maybe the reason as follow:
A: Devide didnot get gsm network, it will online again once it get in gsm network.
B: Sim card in devcie without credit or gprs data user up, pls charge the sim card
C: Device be cut, and without power, pls check the installation to make sure devcie connect external power.
2. Why my car didnot show right location it is
You can check step by step as follow:
A: Pls check the installation and make sure the gps antenna size is up to sky, and away from metal
B: The devcie didnot get gps signal, it maybe in the room, undergroud, or near high building, pls take devcie out side away from building
C: If the car is parked, and location has some error, this must becasue GPS drift, this is from GPS satellite issue, you can set the sleep mode for devcie to avoid this issue.
3. Can I use my own platform to track your device
Yes, we will supply our devcie gprs communication protocol, you just need intergarete it to your paltform, and do set your platform ip and port to our devcie, then it can track.
4. Is your paltform support multi-language
Yes, it support English, Spanish, Portuguese, Arabic, Chinese, French, Turkish, Indonesian, Persian, Russian, Vietnamese, and Polish.
