portable mini hidden real-time gPS tracking device for vehicles support GEO-Fence ACC Alarm
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Placement: | Windshield, Instument Panel | Function: | ACC Ignition Checking |
|---|---|---|---|
| Warranty: | 2 Years | Place Of Origin: | Shenzhen China |
| Size: | 90*40*15MM | GPS Chip: | Ublox |
| Battery: | 200MAH | GPS Accuracy: | 5M |
| High Light: | FCC 4G OBD GPS trakcer,LBS Locating Diagnostic Code Reader,ACC Input Detection GPS Tracker |
||

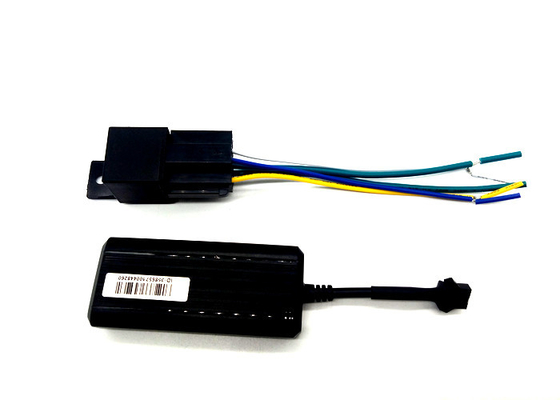

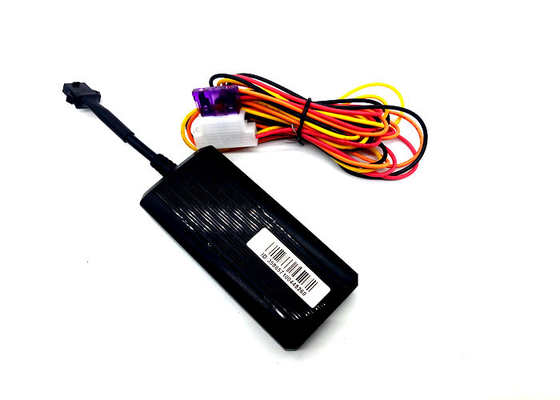

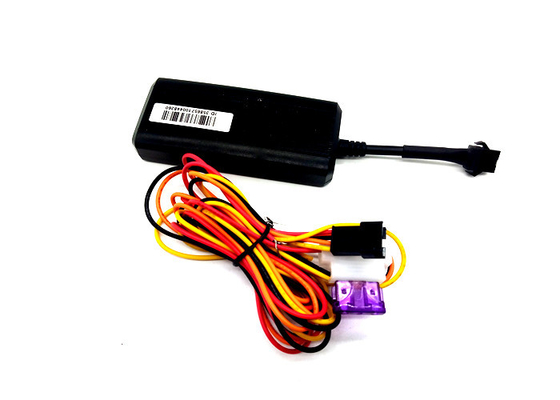

Portable Mini Hidden Real-Time GPS Tracking Device For Vehicles Support GEO-Fence ACC Alarm
C003-01 is a wired multifunctional 4G vehicle-mounted positioning and tracking device. Its rich interface can connect a variety of different sensors and access different device interfaces to obtain corresponding data. The product is suitable for monitoring and data collection of various vehicles.
Portable Mini Hidden Real-Time GPS Tracking Device For Vehicles Support GEO-Fence ACC Alarm
Dvice parameter
| Electronic Character: | |
| Power Supply | built-in battery |
| Work Voltage | DC9-100V |
| Work Current | ≈22mA (12vDC) |
| Work Current | ≈12mA (24vDC) |
| Battery Capacity | 200mah |
| Environment Character: | |
| Work Temp: | -20℃～+70℃ |
| Storage Temp: | -30℃～+80℃ |
| Work Humidity: | 20%～80%RH |
| Communication Character | |
| Module Brand/Chip Module | MT6261 |
| Band: | B1/B3/B8B34/B38/B390/B40/B41/BC0 |
| SIM Card: | Standard SIM card |
| Aerial: | Internal |
| GPS/BD Positioning Character: | |
| Cold start | 38s(Open sky) |
| Warm start | 32s(Open sky) |
| Hot start | 2s(Open sky) |
| Shape | |
| Dimension | 90mm*40mm*15mm |
| Weight | 50g |
Portable Mini Hidden Real-Time GPS Tracking Device For Vehicles Support GEO-Fence ACC Alarm
Description
1.Accurate positioning, accuracy up to 3~10 meters
2.GPS+ LBS+Beidou three models positioning
3.remote power/fuel off
4.ACC detection
5.power off alarm
6.overspeed alarm
7.move alarm
8.ACC illegal engion alarm
1.Real-time tracking.
need to open the web platform or log in to the APP and use the "View Location" function to view the detailed location of the vehicle.
2.GPS+BD+LBS triple positioning.
When the satellite signal is relatively weak, it will automatically switch to LBS positioning so that the device will continue to update the location information.
3.ACC detection.
After listening to the ACC connection to judge whether the vehicle is started, if the vehicle starts, it will show that ACC is connected.It is often used for illegal start alarms.
Portable Mini Hidden Real-Time GPS Tracking Device For Vehicles Support GEO-Fence ACC Alarm
FAQ
Q1: what's your minimum order quantity?
A1: Our MOQ is one piece per design, mixed order is available.
Q2: Can I add label and Handtags and Bags on the items?
A2: Sure. We accept custom all service.
Q3: Can I put my design logo on the items?
A3: Sure, We offer customized service, we can custom your own like style items print your own logo on the items, you may please advise your logo in advance.
Q4: Can I get a sample before bulk order & what's your sample policy?
A4: Yes, we are happy to make samples for your testing before you place large order. For this is our first cooperation with each other. we will charge fees each sample.
Q5: What's the production lead time?
A5: It's about 1-3 business days after payment.
A1: Our MOQ is one piece per design, mixed order is available.
Q2: Can I add label and Handtags and Bags on the items?
A2: Sure. We accept custom all service.
Q3: Can I put my design logo on the items?
A3: Sure, We offer customized service, we can custom your own like style items print your own logo on the items, you may please advise your logo in advance.
Q4: Can I get a sample before bulk order & what's your sample policy?
A4: Yes, we are happy to make samples for your testing before you place large order. For this is our first cooperation with each other. we will charge fees each sample.
Q5: What's the production lead time?
A5: It's about 1-3 business days after payment.
