Product Details:
Payment & Shipping Terms:
|
Color: | Black | Model Number: | GF06 |
---|---|---|---|
Place Of Origin: | Shenzhen China | Warranty: | 2 Years |
Function: | GPS Anti-jammer Tracker,Cut-off Engine | Placement: | Portbale |
Weight: | 0.05kg | Material: | Plastic |
High Light: | GPRS Code Reader OBD Scanner,Geo Fence Alarm GPS Tracker,FCC 4G Car GPS Tracker |

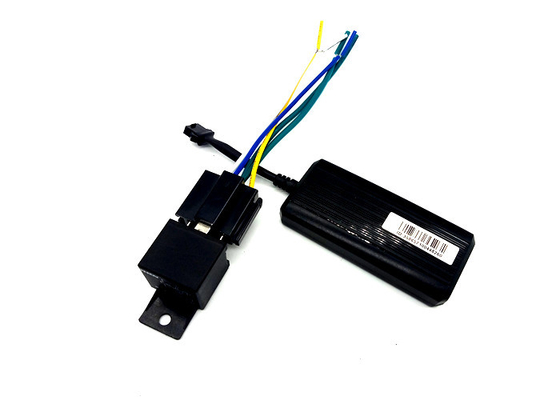

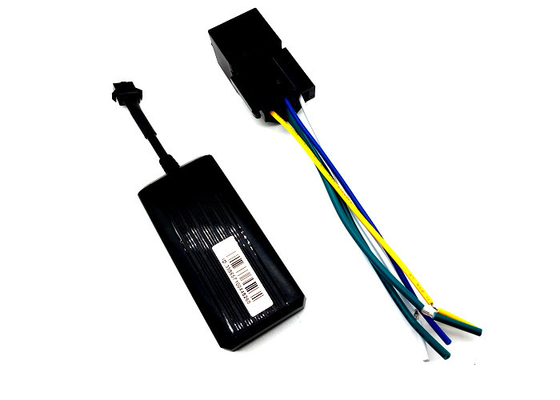

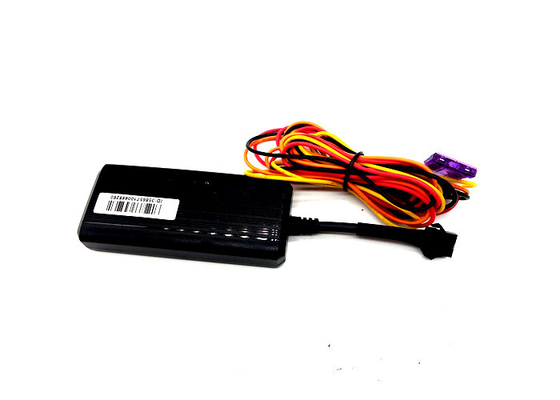

High Accuracy Mini size 4G GPS Tracker GPS LBS Positioning Geo-fence Route GPS Tracker
Product description
Base station positioning | Support base station positioning, positioning accuracy: 10~200 meters |
Working current | Average current ≈22mA (12vDC) maximum current <100mA (12VDC) |
Material | Engineering plastics |
Weight | 50G |
Network | 4G LTE/3G WCDMA /2G GSM |
Dim. | 90*40*15mm |
Storage Temp. | -40°C to +85°C |
Accuracy | 5-20m |
Operation Temp. | -20°C to +55°C |
Humidity | 20%--80% non-condensing |
Working Voltage | 9-100V |
CPU | MTK6261 |
High Accuracy Mini size 4G GPS Tracker GPS LBS Positioning Geo-fence Route GPS Tracker
Equipment built-in GSM antenna and GPS antenna, the installation should ensure a positive upward (toward the sky), and the above non-metal shield block, the proposed installation location:
(1) Below the windshield inside the decorative panel;
(2) Car meter (surface of non-metallic materials) around the shelter;
(3) Rear windshield below the decorative panel;
(4) Inside car door or pillar;
(5) Within the dashboard or under back seat hidden
High Accuracy Mini size 4G GPS Tracker GPS LBS Positioning Geo-fence Route GPS Tracker
Indicators:
Red light - Power Indicator / OBD Work Lights
LED Status | Meaning |
Flash once in 2 seconds | Normal operation / OBD working properly |
No light | Shutdown / OBD sleep |
Yellow indicator light -GSM
LED Status | Meaning |
Flash once in 2 seconds | GSM initialization |
Light Always | GPRS is normal / already online |
No light | GSM sleep |
Blue LED light -GPS
LED Status | Meaning |
Flash once in 2 seconds | GPS signal searching |
Light Always | GPS targeted |
No light | GPS sleep |
High Accuracy Mini size 4G GPS Tracker GPS LBS Positioning Geo-fence Route GPS Tracker
