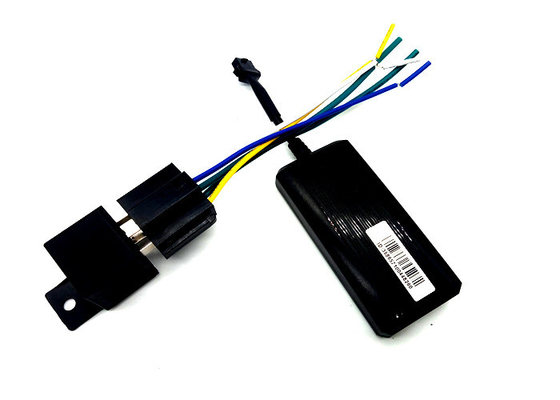

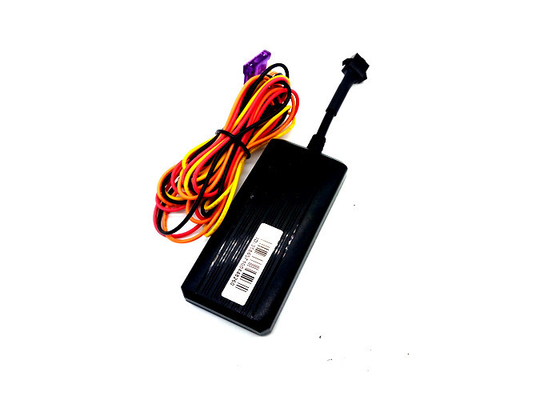

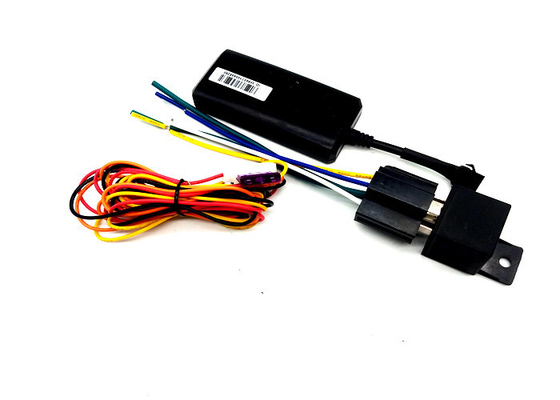

Mini GPS 4G 3G 2G and Small GPS Tracker With Real-time Tracking Vehicel Car GPS Locator
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Function: | Real Time Tracking | Place Of Origin: | Shenzhen China |
|---|---|---|---|
| Model Number: | C003-01-4G GPS TRACKER | Weight: | 50g |
| LTE Frequency: | FDD-LTE 800/850/900/1800/2100/2600MHz | Working Voltage: | DC9-100V |
| Antenna: | Built-in GPS Antenna: 18*18*4 Mm | Size: | 90（L）×40（W）×15（H）mm |
| High Light: | GPRS Code Reader OBD Scanner,Geo Fence Alarm GPS Tracker,FCC 4G Car GPS Tracker |
||
Mini GPS 4G 3G 2G and Small GPS Tracker With Real-time Tracking Vehicel Car GPS Locator
Product Description
| Product name | 4G GPS car tracking devices |
| Communication system | 2G:GSM 850MHz,900MHz,1800MHz,1900MHz 3G WCDMA 2100/1900/900/850MHz 4G:FDD-LTE 800/850/900/1800/2100/2600MHz |
| Antenna | Built-in GPS antenna |
| Working voltage | 9 ~ 100V |
| Battery capacity | 200mA |
| Working current |
22mA(12V DC) 12mA(24V DC) |
| Body size | 90mm * 40mm * 15mm |
| Weight | 50g |
| Working temperature | -20℃ ~ + 70 ℃ |
Mini GPS 4G 3G 2G and Small GPS Tracker With Real-time Tracking Vehicel Car GPS Locator
Tecnical specification
| Communication | chip | GPS,SMS,GPRS/4G |
| Frequency band | FDD-LTE:B1/B2/B3/B4/B5/B6/B8/B18/B19/B26 WCDMA:B1/B2/B4/B5/B6/B8/B19 GSM:B2/B3/B5/B8 |
|
| Channel | TCP/IP | |
| Positioning | Accuracy | 5-10m |
| Tracking sensitivity | -165dBm | |
| Capture sensitivity | -148dBm | |
| Positioning time | Average hot start:2sec Average cold start:32sec |
| memroy | 32MB+32MB |
| antenna | built-in GPS antenna |
| indicator light | Power(red),GSM(blue),GPS(yellow) |
| built-in battery | 200mah |
| Working Voltage | DC9-100V |
| size | 90*40*15mm |
| weight | 50g |
| Working temperature | -20℃～+70℃ |
| Working humidity | 20%～80%RH |
Mini GPS 4G 3G 2G and Small GPS Tracker With Real-time Tracking Vehicel Car GPS Locator
Product Features
1 Support global 2G:GSM 850MHz,900MHz,1800MHz,1900MHz
3G WCDMA 2100/1900/900/850MHz
4G:FDD-LTE 800/850/900/1800/2100/2600MHz
2 Wide operating input voltage range: 9-100VDC;
3 GPS / LBS real-time positioning,
4 Support SMS text query location information;
5 ACC ignition signal is detected
6 Built-in vibration sensor
7 Able to set a specific number for SOS alarm and burglar alarm;
8 SOS switch button for emergency call for help(optional)
9 Internal / external microphone and speakers, remote audio monitoring and voice intercom function (optional);
10 Built-in backup battery, to achieve illegal cutting wire alarm (optional);
Mini GPS 4G 3G 2G and Small GPS Tracker With Real-time Tracking Vehicel Car GPS Locator
FAQ
Q:Do you accept rebranding?
A:Yes,rebranding on product case and gift box is available.
Q:What certificate you have?
A:Our company approved CE ISO.
Q:How are quality control and warranty?
A:All products have been 100% strictly Quality Checked in the house before packing.
