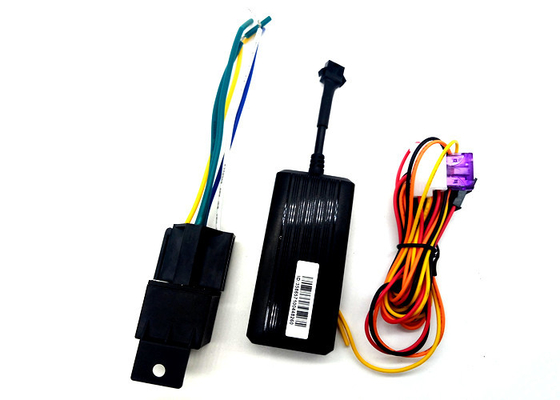

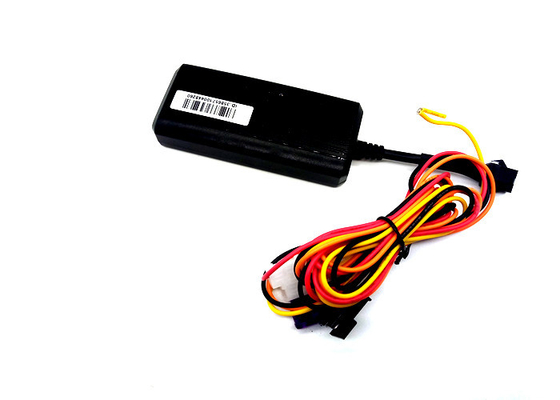

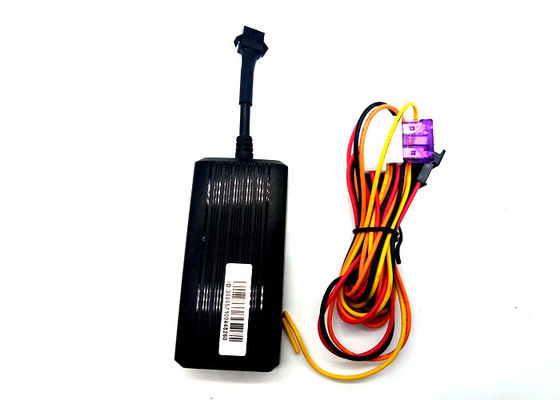

LTE Global 4G GPS Tracker for Car Vehicle Motorcycle with Remote Monitoring Cut Engine Oil
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Warranty: | 2 Years | Brand Name: | C003-01-4G 4G GPS TRACKER |
|---|---|---|---|
| Use: | Automotive | Located Way: | GPS/BD+LBS |
| Working Current: | 22mA(12VDC) | Communication Network: | GPRS GSM |
| Chipset: | MTK6261 | Weight: | 50g |
| High Light: | GSM Vehicle Camera GPS Tracker,4G LTE Connectivity GPS Tracker |
||
LTE Global 4G GPS Tracker for Car Vehicle Motorcycle with Remote Monitoring Cut Engine Oil
Hardware Specification:
| Content | Specs. |
| Mainframe Dimension | 86*40*13mm |
| Net weight | 50g |
| 4G frequencies | LTE TDD B40 |
| LTE FDD B1/B2/B3/B4/B5/B6/B7/B8/B28 | |
| UMITS/HSPA+B1/B2/B5/B8 | |
| chipset | SIM7600 |
| Standby Current | ≤5mAh |
| GPS locating time | cold start=38s warm start=32s hot start=2s |
| GPS Sensitivity | -159dB |
| GPS Accuracy | ≤ 10m |
| Work environment temperature | -40℃+80℃ |
| Work environment humidity | 20%-80%RH |
LTE Global 4G GPS Tracker for Car Vehicle Motorcycle with Remote Monitoring Cut Engine Oil
Main function:
Real time tracking Geo-fence Historical track Vibration Overspeed alarm Offline alarm Remote setting
Specification
| Detail | |
| Operating voltage | DC9-90V |
| Operating current | 22mA(12V) |
| Specifications | L90mm*W40mm*H15mm |
| Positioning mode | GPS, LBS and positioning |
| Positioning error | < 10 m |
| Support WCDMA | Yes |
| Communication | TCP/IP |
| Operating temperature range | -20℃～+70℃ |
| Storage temperature range | -40℃~+85℃ |
| weight | 50g |
LTE Global 4G GPS Tracker for Car Vehicle Motorcycle with Remote Monitoring Cut Engine Oil
Preparation for the installation
1 . Product Check. Open the packing box and check the device‘s model and accessories. If the model is wrong or the accessories not complete, please contact the dealer.
2 . Choose SIM card. Please insert a SIM card to the device. Please take dealer’s advice as reference.
3 . SIM card installation. Discharge the cover of the device and uncover the SIM card holder. Then insert the SIM card and cover SIM card holder.
4 . Put back the front cover and screw it up.
5 . Connect the device to the 9-100Vpower supply.(the red LED constant glow)
5 . Connect the device to the 9-100Vpower supply.(the red LED constant glow)
Installation for the Car/Motorcycle/E-bike
The GPS tracker must be installed under professional personnel.
Note:
1) Please install the device in the hidden place as followings:
Under Front windshield；
In the front instrument panel；
Under back windshield；
2) Avoid being placed with signal radiators like reverse sensor ；
3) The device has GSM antenna and GPS antenna inside. Please ensure the receiving side of the device is face up and without metal cover.
LTE Global 4G GPS Tracker for Car Vehicle Motorcycle with Remote Monitoring Cut Engine Oil
