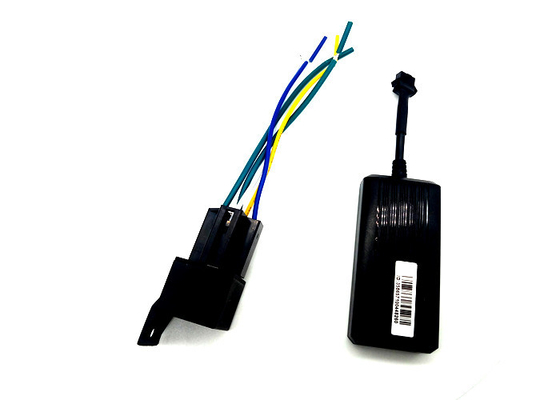

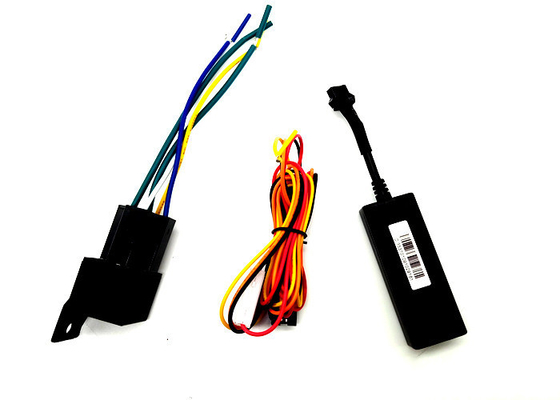

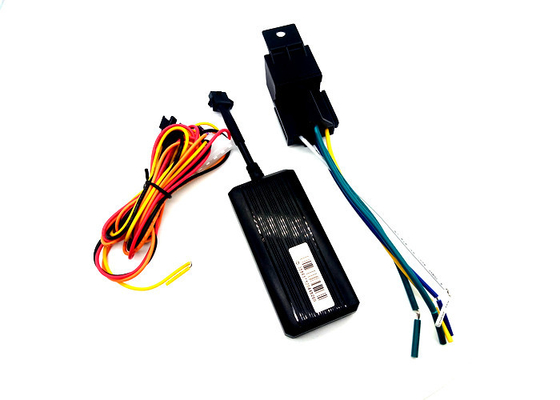

Smart Mini Tracking Device For Remote Cut Off Engine 2100MHz Frequency 4G GPS Tracker
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Model Number:: | GT06 | Product Name:: | 4G GPS Mini Tracker |
|---|---|---|---|
| Frequency: | 4G 800/850/900/1800/2100/2600MHz | Use: | Automotive |
| Size: | 90（L）×40（W）×15（H）mm | Weight: | 0.05kg |
| Type: | GPS SMS Tracker | Warranty: | 24 Month |
| High Light: | 4G LTE Vehicle GPS Tracker,ACC Input Detection GPS Tracker,LBS Positioning GPS Tracking Device |
||
Smart Mini Tracking Device For Remote Cut Off Engine 2100MHz Frequency 4G GPS Tracker
Description
| GSM850/900/1800/1900mhz |
| WCDMA850/900/1900/2100 Mhz |
| FDD-LTE 800/850/900/1800/2100/2600MHz |
| Voltage range: 9-100VDC; |
| GPS / LBS real-time positioning |
| Support the computer to track the car, |
| Mobile search |
| Vehicles and wechat search vehicles |
| SMS text query location information |
| ACC ignition signal detected |
| Built-in vibration sensor |
| Able to set a specific number for SOS alarm and burglar alarm |
| GPRS: | Class12, TCP/IP |
| Working Voltage | 9-100V DC |
| Working current: | ≈22mA (12vDC) |
| Working current: | ≈12mA (24vDC) |
| GPS locating time: | Cold start≈38s(Open sky) Warm start≈32s Hot start≈2s(Open sky) |
| GPS Precision: | 10m(2D RM) |
| Working temperature: | *-20℃～+70℃ |
| Working humidity: | 20%～80%RH |
| Measurement: | 90(L)×40(W)×15(H)mm |
Smart Mini Tracking Device For Remote Cut Off Engine 2100MHz Frequency 4G GPS Tracker
Platform
| up to 180 days historical route track | electronic fence, out of the regional alarm |
| deviate planning route alarm | serious collision warning (optional); |
| rollover warning (optional); | overspeed alarm |
| report output | free to use |
Indicators:
| LIGHT | Functions |
| Red LED | Connect DC 9-100V power supply and will light continuously. |
| The red LED is the power signal, | |
| It is always on when the external DC is connected. | |
| blue LED | It is he GSM signal indicator. |
| It is always on when there is no GSM; | |
| It flashes when GSM is normal; | |
| It flashes quickly when transmitting data. | |
| yellow LED | It is the GPS signal indicator: |
| It is always on when there is no positioning; | |
| It flashes after positioning. |
Smart Mini Tracking Device For Remote Cut Off Engine 2100MHz Frequency 4G GPS Tracker
Indicators:
Red light - Power Indicator / OBD Work Lights
| LED Status | Meaning |
| Flash once in 2 seconds | Normal operation / OBD working properly |
| No light | Shutdown / OBD sleep |
Yellow indicator light -GSM
| LED Status | Meaning |
| Flash once in 2 seconds | GSM initialization |
| Light Always | GPRS is normal / already online |
| No light | GSM sleep |
Blue LED light -GPS
| LED Status | Meaning |
| Flash once in 2 seconds | GPS signal searching |
| Light Always | GPS targeted |
| No light | GPS sleep |
Wiring requirement
1 The device power supply is DC 9-100V. The red line is positive pole while the black line is negative pole.
2 The negative pole of power supply connects with ground or the metals. Please do not connect with other ground lines.
3 When finishing the power supply wire connection, please make the plug of power supply to the device
Smart Mini Tracking Device For Remote Cut Off Engine 2100MHz Frequency 4G GPS Tracker
Vibration Alarm Settings
1 Open vibration alarm SMS: 125#
Reply message: OK
2 Close vibration alarm SMS (default): 126#
Reply message: OK
3 Open vibration alarm phone call: 122#
Reply message: OK
4 Close vibration alarm phone call (default): 121#
Reply message: OK
6 Setting the duration of vibration alarm, 1-15 seconds
SMS: vibtime123456,n
Re: vibtime set ok
Speed Alarm Settings
Overspeed alarm SMS Speed Limit:
speed123456 080
Setting the speed limit of 80 km / h
4.9.1 Turn off speed alarm SMS (default)
speed123456 000
Re: speed ok
4.9.2 Turn on speed alarm SMS
speed123456 080
Re: speed ok
FAQ:
| Q:Haw can i buy it? |
| A:We accept T/T,Westem Uniton and Paypl.After we recerive your payment. |
| Q:Can we put into my motorcycle? |
| A:Yes,of course!it support DC9-100V voltage input for any vehicles. |
| Q:Can we use your platform? |
| A:yes,you can use our platform.And it is free to use. |
| Q:What is the lead time if we place order to get the parcel? |
| A:It needs 1-10 working days after received your payment |
