Vehicle E-bike Tracking with Global 4G LTE Compatible with 3G 2G Network 4G GPS Tracker
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Warranty: | 12month | Use: | Automotive |
|---|---|---|---|
| Function: | Vehicle Tracking | Model Number: | C003-01-4G |
| Network: | 4G/3G/2G | Dimension: | 90mm*40mm*15mm |
| Weight: | 0.05KG | Band: | FDD-LTE 800/850/900/1800/2100/2600MHz |
| High Light: | 4G LTE Vehicle GPS Tracker,ACC Input Detection GPS Tracker,LBS Positioning GPS Tracking Device |
||

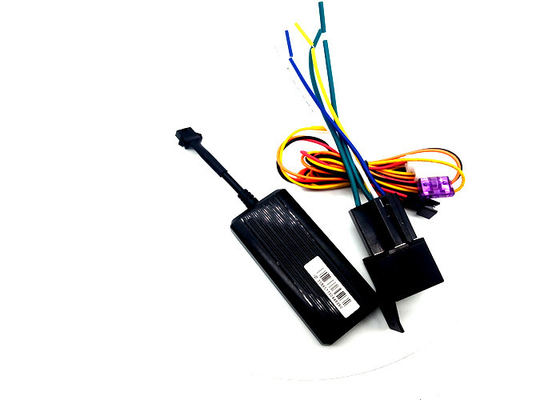

Vehicle E-bike Tracking with Global 4G LTE Compatible with 3G 2G Network 4G GPS Tracker
Band
| Europe / Middle East / Africa / South Korea / Thailand EC25-E: |
LTE FDD: B1/B3/B5/B7/B8/B20 LTE TDD: B38/B40/B41 WCDMA: B1/B5/B8 GSM: B3/B8 |
| North America EC25-A EC25-V |
LTE FDD: B2/B4/B12 WCDMA: B2/B4/B5 LTE FDD: B4/B13 |
| Australia/New Zealand/Taiwan/Brazil EC25-AU |
LTE FDD: B1/B2*/B3/B4/B5/B7/B8/B28 LTE TDD: B40 WCDMA: B1/B2/B5/B8 GSM: B2/B3/B5/B8 |
| Japan EC25-J |
LTE FDD: B1/B3/B8/B18/B19/B26 LTE TDD: B41 WCDMA: B1/B6/B8/B19 |
Product Parameters:
| Model | GT06 |
| Features | Vehicle malfunction diagnostics |
| Device Dimension | 90mm(L)*40mm(W)*15mm(H) |
| Weight | 50g |
| Quad Band | 850/1900/900/1800MHz |
| GPS Accuracy | 5-10m |
| Voltage Input | 9-100v |
| Hot Start<2S(Open Sky) | |
| Positioning Time | Warm Start<15S |
| Cold Start<32S(Open Sky) | |
| Tracking Sensitivity | -162dBm |
| GPS chip | MTK6261 |
| GSM/GPS Antenna | Built-in Design |

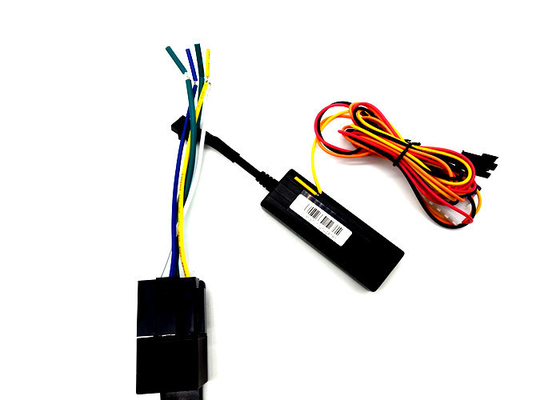

Vehicle E-bike Tracking with Global 4G LTE Compatible with 3G 2G Network 4G GPS Tracker
Description
| Place of Origin | Shenzhen China |
| Network | GSM/GPRS 850/900/1800/1900MHz |
| Certificate | CE ISO9000 |
| Warranty | 2years |
| Function | 4G GPS Tracking |
| Battery | 200mAH |
| Operation System | Andorid IOS |
| GPRS | Class12, TCP/IP |
Parameter
| Content | Specs. |
| Dim. | 90 mm x40 mm x 15 mm |
| Weight | 50g |
| Network | GSM/GPRS/GPS |
| Band | 850/900/1800/1900 MHz |
| GPS chip | U-B |
| GSM module | MTK6261 |
| GPS accuracy | 10m |
| GPS locating time | Cold start≈38s(Open sky) |
| Warm start≈32s(Open sky) | |
| Hot start≈2s(Open sky) | |
| Work voltage | DC9V-100V |
| Storage Temp. | -40°C to +85°C |
| Humidity | 20%--80% |

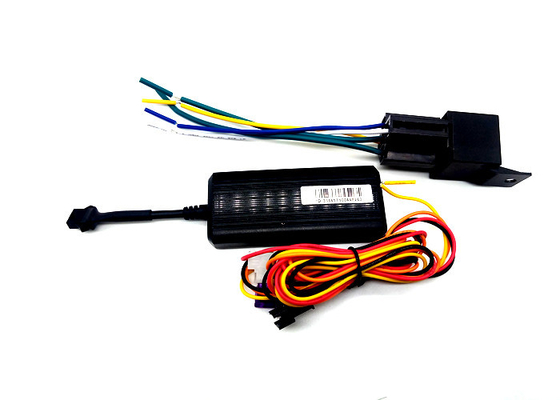

Vehicle E-bike Tracking with Global 4G LTE Compatible with 3G 2G Network 4G GPS Tracker
Produce Description
| GSM | GPRS |
| Geo-sensor | Input power |
| ACC | Ignition checking |
| Built-in battery | Cutt off power/fuel |
| Real time tracking | Over speed alarm |
| Relay supported | Platform /APP supported |
Product Specification
| Frequency | North America EC25-A EC25-V:LTE FDD: B2/B4/B12 WCDMA: B2/B4/B5 LTE FDD: B4/B13 |
| Nerworks | 4G/3G/2G |
| Battery | 200mah |
| Operating Voltage | 9-100v |
| Location time | Hot start≈2s(Open sky) |
| Location accuracy | 5-10M |
| Operating temperature | -20℃～+70℃ |
| Dimension | 90*40*15mm |
| Weight | 0.05kg |
Vehicle E-bike Tracking with Global 4G LTE Compatible with 3G 2G Network 4G GPS Tracker
1. Red light - Power Indicator / OBD Work Lights
| LED Status | Meaning |
| Flash once in 2 seconds | Normal operation / OBD working properly |
| No light | Shutdown / OBD sleep |
2. Yellow indicator light -GSM
| LED Status | Meaning |
| Flash once in 2 seconds | GSM initialization |
| Light Always | GPRS is normal / already online |
| No light | GSM sleep |
3. Blue LED light -GPS
| LED Status | Meaning |
| Flash once in 2 seconds | GPS signal searching |
| Light Always | GPS targeted |
| No light | GPS sleep |
Q1: What kind of SIM card do your devices support?
Re: It support global quad band(850/900/1800/1900) SIM card, 2G GSM network, and enable GPRS flow;
Q2: Can i build my own platform, and only use your device?
Re: Yes, of course, you can build your own plaftform, by our offering GPRS protocol, if you want our help to build a independent platform, it will cost technical fee, details you can contact us directly;
Q3: Can i make my own distributor account on your platform?
Re: Yes, you can, if you are a distributor or want to be a distributor, please share all your IMEIs of devices, and then we can
make a distributor account for you, Available to manage your devices.
Q4: Is there phone APP, support Android and IOS system?
Re: yes, you can download the latest app here, www.19gps.net,www.dyegoo.net and it support android and IOS, no Windows OS;
Q5: How about your platform cost?
Re: Free for lifetime;
