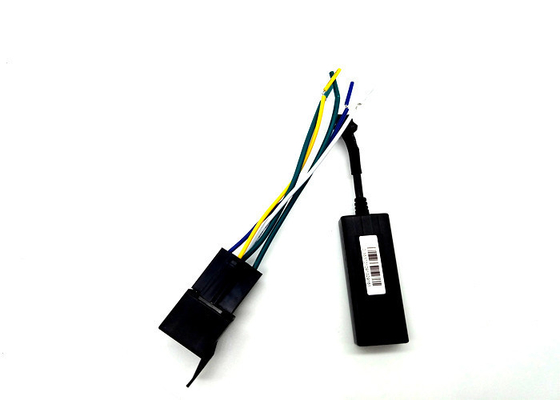

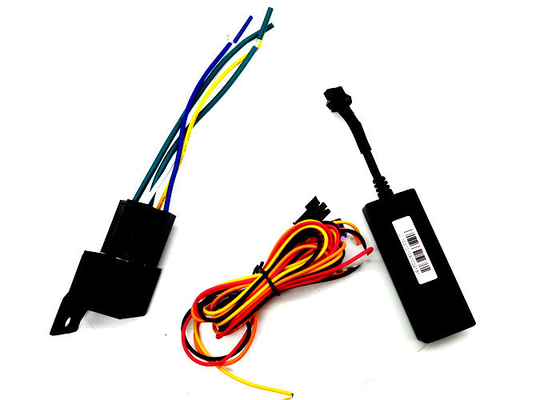

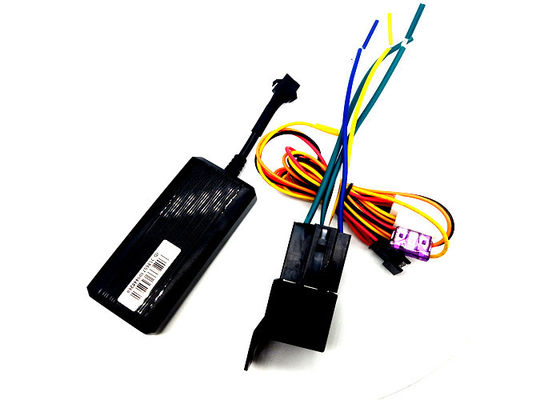

C003-01 Model 4G LTE GPS Tracker Realy Optional For Cutting off Fuel 4G GPS Tracker
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Certification: | ISO CE | Use: | Automotive |
|---|---|---|---|
| Battery: | 200mAH | Current: | 22mA (12vDC) |
| Network: | 4G LTE | Product Name:: | 4G GPS Mini Tracker |
| Placement: | Instument Panel | Size: | 90*40*15MM |
| High Light: | 4G LTE Vehicle GPS Tracker,ACC Input Detection GPS Tracker,LBS Positioning GPS Tracking Device |
||
C003-01 Model 4G LTE GPS Tracker Realy Optional For Cutting off Fuel 4G GPS Tracker
Product Description
| Gerneral specifications | Model | C003-01-4G |
| Dimension | 90mm*40mm*15mm | |
| Weight | 50g | |
| Backup battery | 200mAh | |
| Charging voltage | 9-100V DC | |
| OperatingTemperature | -20°C to +70°C for working | |
| -30°C to +70°C for storage | ||
| Hardware | Sensor | vibration sensor |
| GPS | GPS chipset | Ublox |
| Support | GPS | |
| Cold start | approx 38s | |
| Warm start | approx 32s | |
| Hot start | approx 2s | |
| Antenna | Built-in GPS antenna |
Main Features :
1. Quick and Easy installation: Through clever design and innovation, Mini GPS couled be hided in panel.
2. Real Time Tracking
3. Small, Light, Waterproof: Small size and weight just 2.6 oz, follow the IPX7 waterproof standard.
4. Smart Geo fencing: Define a safe zone in the APP/WEB and you are ready to receive an alarm
5. Location history:supports up to 180 days historical route track;
6. APP+WEB monitoring service: Just open up the APP/WEB and watch its movements in real time.
C003-01 Model 4G LTE GPS Tracker Realy Optional For Cutting off Fuel 4G GPS Tracker
Frequency:
2G:GSM 850MHz,900MHz,1800MHz,1900MHz
3G WCDMA 2100/1900/900/850MHz
4G:FDD-LTE 800/850/900/1800/2100/2600MHz
| Europe / Middle East / Africa / South Korea / Thailand EC25-E: |
LTE FDD: B1/B3/B5/B7/B8/B20 LTE TDD: B38/B40/B41 WCDMA: B1/B5/B8 GSM: B3/B8 |
| North America EC25-A EC25-V |
LTE FDD: B2/B4/B12 WCDMA: B2/B4/B5 LTE FDD: B4/B13 |
| Australia/New Zealand/Taiwan/Brazil EC25-AU |
LTE FDD: B1/B2*/B3/B4/B5/B7/B8/B28 LTE TDD: B40 WCDMA: B1/B2/B5/B8 GSM: B2/B3/B5/B8 |
| Japan EC25-J |
LTE FDD: B1/B3/B8/B18/B19/B26 LTE TDD: B41 WCDMA: B1/B6/B8/B19 |
C003-01 Model 4G LTE GPS Tracker Realy Optional For Cutting off Fuel 4G GPS Tracker
Produce Description
| Remote cut-off (petrol/power) | Light and compact |
| Compel the vehicle to stop by breaking off the fuel connection | Small size allowing covert & easy mounting |
| ACC detection | GPS + LBS Positioning |
| Be aware of the ignition status where you need | Allow the location to be pinpointed in real time |
| Tracked by: SMS, APP, Web | voltage range:9-100V |
| Reports location in real time through different interfaces |
Voltage adaptation up to 100v |
According to the environment automatic switching network ACCurate Postioning ,You can chenk the state of the car
anytime and anywhere.
1.When the thieves steal the battery,pry the car,steal money,move and so on,GT06 GPS tracker will send alarm to
your cell phone.
2.You can send cut off oil command to the gps tracker,To make sure the security of vehicle,tracker can only indicate
to cut off oil when gps is in vaild position status,and the speed is less than 20KM/H.
3.You can find your lost car accroding to the car`s location.
GT06 GPS tracker car anti-theft function,Let your peace of mind to go out.
When you send Voice Monitot sms command to the gps tracker,then the device will turn into monitor model,if you
make call to the SIM number in the device,it will pick up your call automatically and you will can monitor the voice
aroung the device.
When the car abnomal vibration or in an accident ,you can press the SOS button.Then,GPS tracker will send an
alarm to the control phone number.
C003-01 Model 4G LTE GPS Tracker Realy Optional For Cutting off Fuel 4G GPS Tracker
SOS Alarm Settings
When in emergency situation need help, you can press the SOS to trigger SOS emergency alarm. Device will send a SOS message to specific number and call the specific number until pick up. Device will also send SMS alarm information to platform.
Note: SMS and phone call alarm function need to set a owner number at first, SOS phone call and SMS function need to set a specific SOS number.
1 Turn on SOS SMS alarm
sossms123456
Re: sossms ok
2 Turn off SOS SMS alarm (default)
no sossms123456
Reply: no sossms ok
3 Turn on SOS phone call
soscall123456
Re: soscall ok
4 Turn off SOS phone call (default)
no soscall123456
Reply: no soscall ok
Remote monitoring
Specific number can monitor GPS device SIM card number
SMS:88
Note: Need to set the owner number and SOS specific number at first
