4G TK003 GPS Locator Romote Monitoring Vibration Alarm Car Vehicle 4G GPS Tracker

Name: 4G TK003 GPS Locator Romote Monitoring Vibration Alarm Car Vehicle 4G GPS Tracker
Brand: Cartracker
SKU: TK003
Price: 1.00 USD
Availability: InStock
Rating: 5 (157 reviews)

Large Image : 4G TK003 GPS Locator Romote Monitoring Vibration Alarm Car Vehicle 4G GPS Tracker Get Best Price

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	Cartracker
Certification:	CE ISO9000
Model Number:	TK003

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	negotiation
Packaging Details:	Packed in carton firstly
Delivery Time:	1-10 working days after received your payment
Payment Terms:	T/T or western Union or paypal
Supply Ability:	10,000pcs per month

Contact Now

Detailed Product Description

Place Of Origin:	Shenzhen China	Model Number:	GT06 4G GPS Tracker
Item:	Mini GPS Tracker	Positioning Mode:	GPS+LBS Mode
Battery:	200mAH	APP:	IOS Android
SOS Panic Button:	Supported	Size:	904015MM
High Light:	4G LTE Vehicle GPS Tracker , ACC Input Detection GPS Tracker , LBS Positioning GPS Tracking Device

4G TK003 GPS Locator Romote Monitoring Vibration Alarm Car Vehicle 4G GPS Tracker

Feature:

GSM two-way	850/900/1800/1900 MHz
GPS positioning	GPS sensitivity: -162dBm
	GPS positioning accuracy: 2 meters (under open conditions)
	Speed accuracy: 0.1 m/s
	Cold start time: <38 seconds
	Warm start time: <32 seconds
	Hot start time: <2 seconds
Base station positioning	Support base station positioning, positioning accuracy: 10~200 meters
Vandalism	Support anti-counterfeiting base station, anti-detection function
Working current	Average current <30mA (12VDC), maximum current <100mA (12VDC)
Operating temperature	-20~+65℃
Material	Engineering plastics
Weight	50G
Network	4G LTE/3G/2G
Dim.	904015mm
Storage Temp.	-40°C to +85°C
Accuracy	5-20m
Operation Temp.	-20°C to +55°C
Humidity	5%--95% non-condensing
Working Voltage	9-80V
CPU	MTK6261
RAM	32MB
ROM	32MB
Waterproof	Optional

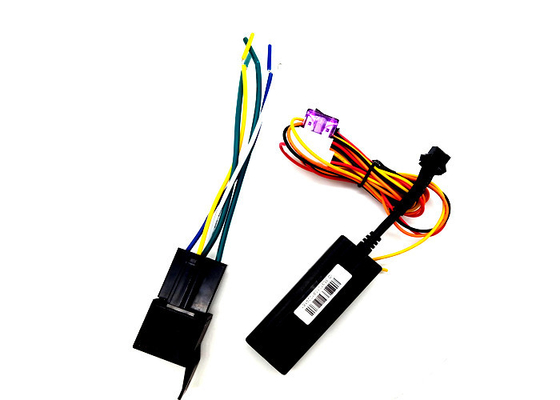

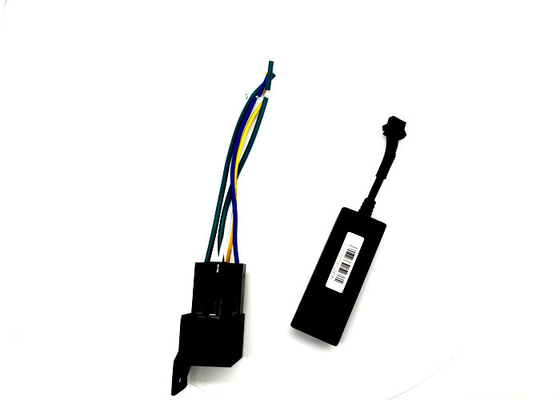

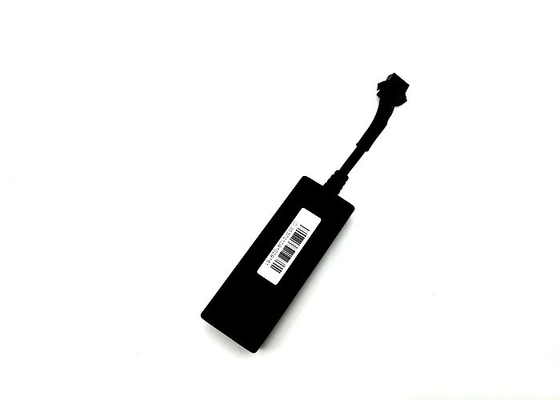

Exterior&Accessories

4G TK003 GPS Locator Romote Monitoring Vibration Alarm Car Vehicle 4G GPS Tracker 0

Red＆black cable for power
Orange cable for ACC/ignition
Yellow cable for Relay

4G TK003 GPS Locator Romote Monitoring Vibration Alarm Car Vehicle 4G GPS Tracker

Product Specification

Frequency	North America EC25-A EC25-V:LTE FDD: B2/B4/B12 WCDMA: B2/B4/B5 LTE FDD: B4/B13
Nerworks	4G/3G/2G
Battery	200mah
Operating Voltage	9-100v
Location time	Hot start≈2s(Open sky)
Location accuracy	5-10M
Operating temperature	-20℃～+70℃
Dimension	904015mm
Weight	0.05kg

Europe / Middle East / Africa / South
Korea / Thailand EC25-E:

LTE FDD: B1/B3/B5/B7/B8/B20
LTE TDD: B38/B40/B41
WCDMA: B1/B5/B8
GSM: B3/B8

North America EC25-A
EC25-V

LTE FDD: B2/B4/B12
WCDMA: B2/B4/B5
LTE FDD: B4/B13

Australia/New Zealand/Taiwan/Brazil
EC25-AU

LTE FDD: B1/B2*/B3/B4/B5/B7/B8/B28
LTE TDD: B40
WCDMA: B1/B2/B5/B8
GSM: B2/B3/B5/B8

Japan
EC25-J

LTE FDD: B1/B3/B8/B18/B19/B26
LTE TDD: B41
WCDMA: B1/B6/B8/B19

4G TK003 GPS Locator Romote Monitoring Vibration Alarm Car Vehicle 4G GPS Tracker 1

4G TK003 GPS Locator Romote Monitoring Vibration Alarm Car Vehicle 4G GPS Tracker

Product Features
.1 Support global gsm850/900/1800/1900mhz, wcdma850/900/1900/2100 Mhz network
frequency band;
.2 Wide operating input voltage range: 9-80VDC;
.3 GPS / LBS real-time positioning, support the computer to track the car, mobile search
vehicles and wechat search vehicles;
.4 Support SMS text query location information;
.5 ACC ignition signal is detected, the vehicle prompted the state;
.6 Built-in vibration sensor, to achieve intelligent vehicle anti-theft;
.7 Able to set a specific number for SOS alarm and burglar alarm;
.8 SOS switch button for emergency call for help;
.9 Internal / external microphone and speakers, remote audio monitoring and voice
intercom function (optional);

Platform

up to 180 days historical route track	electronic fence, out of the regional alarm
deviate planning route alarm	serious collision warning (optional);
rollover warning (optional);	overspeed alarm
report output
