Product Details:
Payment & Shipping Terms:
|
Placement: | PORTABLE | Function: | GPS SMS |
---|---|---|---|
Connection: | 4G/3G Sim Card, 2G Sim Card | Certification: | CE ISO |
Name: | Motorcycle 4G GPS Tracker | WCDMA: | Supported 2100/1900/900/850MHz |
Weight: | 0.05kg | Color: | Black |
High Light: | 4G LTE Vehicle GPS Tracker,ACC Input Detection GPS Tracker,LBS Positioning GPS Tracking Device |
Electronic Fence GPS Tracking Device 1900MHZ Anti-theft For Motorcycle 4G GPS Tracker
Specification
Detail | |
Operating voltage | DC9-90V |
Operating current | 22mA@12V |
Specifications | L90mm*W40mm*H15mm |
Positioning mode | GPS, LBS and positioning |
Positioning error | < 10 m |
Support WCDMA | Yes |
Communication | TCP |
Operating temperature range | -20℃~+70℃ |
Storage temperature range | -40℃~+85℃ |
weight | 50g |
Main function | |
1. Remote power off function | |
2. Real-time positioning function | |
3. Anti-theft alarm | |
4. Track playback function | |
5. Vibration alarm | |
7. Overspeed alarm | |
9. Electronic fence function |

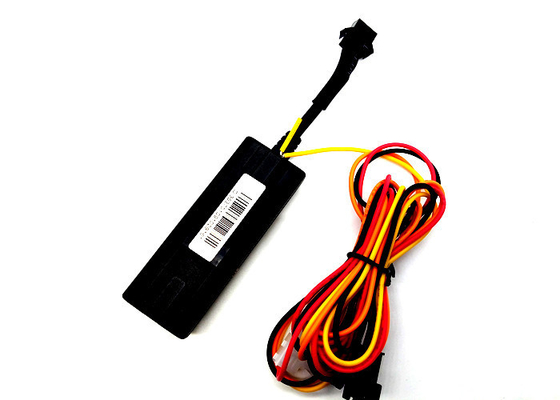

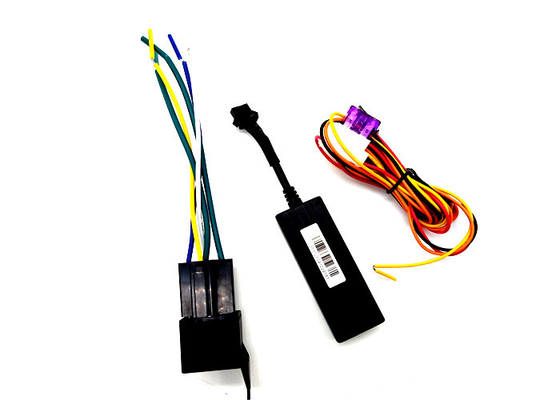

Accessories
Red&black cable for power
Orange cable for ACC/ignition
Yellow cable for Relay
Electronic Fence GPS Tracking Device 1900MHZ Anti-theft For Motorcycle 4G GPS Tracker
Platform Functions
1. Platform supports up to 180 days historical route track;
2. Platform supports electronic fence, out of the regional alarm;
3. Platform supports deviate planning route alarm;
4. Platform supports overspeed alarm;
5. Platform supports serious collision warning (optional);
6. Platform Support rollover warning (optional);
7. Platform supports for report output;
Note:Platform is free cost.
Remote cut-off (petrol/power) | Light and compact |
Compel the vehicle to stop by breaking off the fuel connection | Small size allowing covert & easy mounting |
ACC detection | GPS + LBS Positioning |
Be aware of the ignition status where you need | Allow the location to be pinpointed in real time |
Tracked by: SMS, APP, Web | voltage range:9-100V |
Reports location in real time through different interfaces | Voltage adaptation up to 100v |
Electronic Fence GPS Tracking Device 1900MHZ Anti-theft For Motorcycle 4G GPS Tracker
GPS Tracker Main Functions:
【Real Time Tracking】 GPS tracker offers real-time tracking and 30 days of tracking history. Track from any smart intellectual Product such as a computer, tablet, phone, etc. Support platform lifetime. Just login or download APP, track any location anywhere and anytime. The car GPS tracker for vehicle work in almost every country in the world
【Free to Use】Real time tracking route playback history check via our platform lifetime. But this mini GPS tracker device only supports GSM 4G network. Not include a GSM SIM card, please buy a GSM card, Speed Talk is perfect. If you have any problems please feel free to contact us
GPS | functions: |
protocol: GT06 | 1)support ACC ignition checking |
G-sensor : BS250E | 2)support Relay for cutting off power/fuel |
input power: 9-100V | 3)built-in GPS antenna: 18*18*4 mm |
power IC: SL3036H | 4)built-in battery, Real time tracking |
GSM module: MT6261 | 5)Geo-fence, over speed alarm, |
GPS module: Ublox | 6) platform / APP supported |
Electronic Fence GPS Tracking Device 1900MHZ Anti-theft For Motorcycle 4G GPS Tracker
LIGHT | Functions |
Red LED | Connect DC 9-100V power supply and will light continuously. |
The red LED is the power signal, | |
It is always on when the external DC is connected. | |
blue LED | It is he GSM signal indicator. |
It is always on when there is no GSM; | |
It flashes when GSM is normal; | |
It flashes quickly when transmitting data. | |
yellow LED | It is the GPS signal indicator: |
It is always on when there is no positioning; | |
It flashes after positioning. |
FAQ:
Q:Haw can i buy it? |
A:We accept T/T,Westem Uniton and Paypl.After we recerive your payment. |
Q:Can we put into my motorcycle? |
A:Yes,of course!it support DC9-100V voltage input for any vehicles. |
Q:Can we use your platform? |
A:yes,you can use our platform.And it is free to use. |
Q:What is the lead time if we place order to get the parcel? |
A:It needs 1-10 working days after received your payment |
