Product Details:
Payment & Shipping Terms:
|
GPS Accuracy:: | 5-10M | Function:: | Anti-theft |
---|---|---|---|
Place Of Origin: | Shenzhen China | Model Number:: | C003-01-4G |
Size: | 90*40*15MM | Weight: | 0.05KG |
Battery:: | 200mAH | Certification: | CE ISO |
High Light: | 4G LTE Vehicle GPS Tracker,ACC Input Detection GPS Tracker,LBS Positioning GPS Tracking Device |
Vehicle GPS Tracker With GT06 Protocol Anti-theft 4G GPS Tracker
Specification

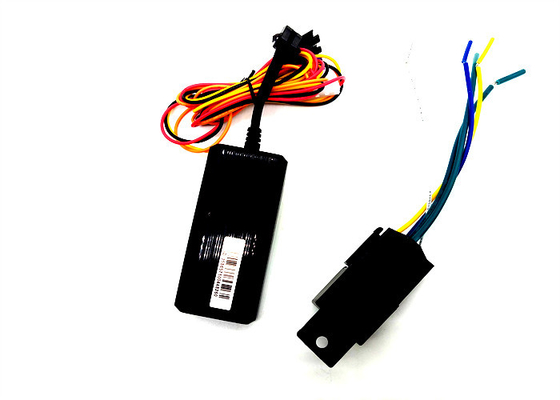

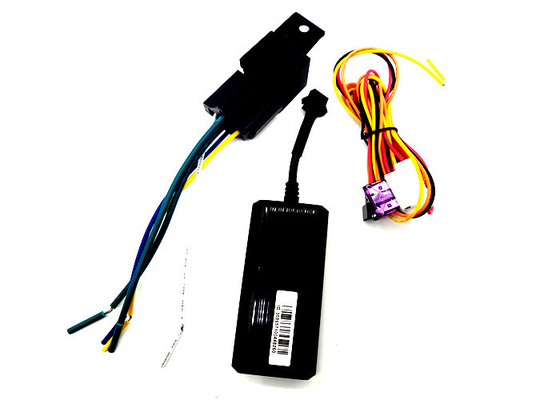

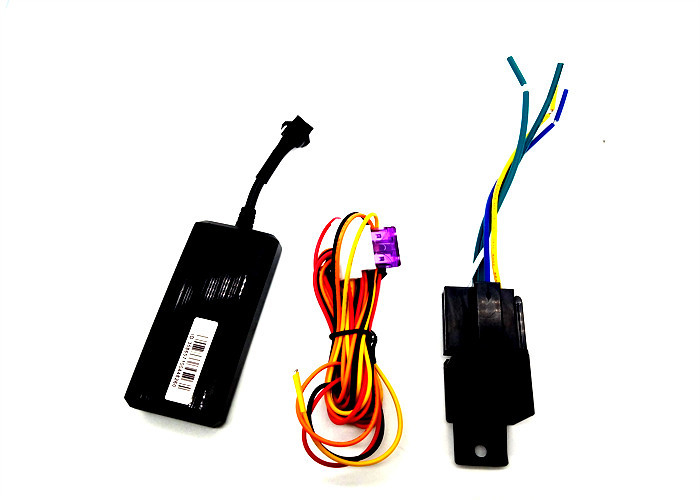

Accessories:
1.1 Power cable
1.2 User Guide
1.3 Microphone (optional)
1.4 SOS button (optional)
1.5 Relay (optional)
Red&black cable for power
Orange cable for ACC/ignition
Yellow cable for Relay
Vehicle GPS Tracker With GT06 Protocol Anti-theft 4G GPS Tracker
Main components
GPS | functions: |
protocol: GT06 | 1)support ACC ignition checking |
G-sensor : BS250E | 2)support Relay for cutting off power/fuel |
input power: 9-100V | 3)built-in GPS antenna: 18*18*4 mm |
power IC: SL3036H | 4)built-in battery, Real time tracking |
GSM module: MT6261 | 5)Geo-fence, over speed alarm, |
GPS module: Ublox | 6) platform /APP supported |
Functions:
GSM850/900/1800/1900mhz |
WCDMA850/900/1900/2100 Mhz |
Voltage range: 9-80VDC; |
GPS / LBS real-time positioning |
Support the computer to track the car, |
Mobile search |
Vehicles and wechat search vehicles |
SMS text query location information |
ACC ignition signal detected |
Built-in vibration sensor |
Able to set a specific number for SOS alarm and burglar alarm |
Vehicle GPS Tracker With GT06 Protocol Anti-theft 4G GPS Tracker
Preparation for the installation
1 . Product Check. Open the packing box and check the device‘s model and accessories. If the model is wrong or the accessories not complete, please contact the dealer.
2 . Choose SIM card. Please insert a SIM card to the device. Please take dealer’s advice as reference.
3 . SIM card installation. Discharge the cover of the device and uncover the SIM card holder. Then insert the SIM card and cover SIM card holder.
4 . Put back the front cover and screw it up.
5 . Connect the device to the 9-100Vpower supply.(the red LED constant glow)
6 . Install the device in the hidden place of the car;
Device wiring requirements
1 The device power supply is DC 9-100V. The red line is positive pole while the black line is negative pole.
2 The negative pole of power supply connects with ground or the metals. Please do not connect with other ground lines.
3 When finishing the power supply wire connection, please make the plug of power supply to the device
Any issue please contact the local distributors.
Vehicle GPS Tracker With GT06 Protocol Anti-theft 4G GPS Tracker
FAQ:
Q:Haw can i buy it? |
A:We accept T/T,Westem Uniton and Paypl.After we recerive your payment. |
Q:Can we put into my motorcycle? |
A:Yes,of course!it support DC9-100V voltage input for any vehicles. |
Q:Can we use your platform? |
A:yes,you can use our platform.And it is free to use. |
Q:What is the lead time if we place order to get the parcel? |
A:It needs 1-10 working days after received your payment |
