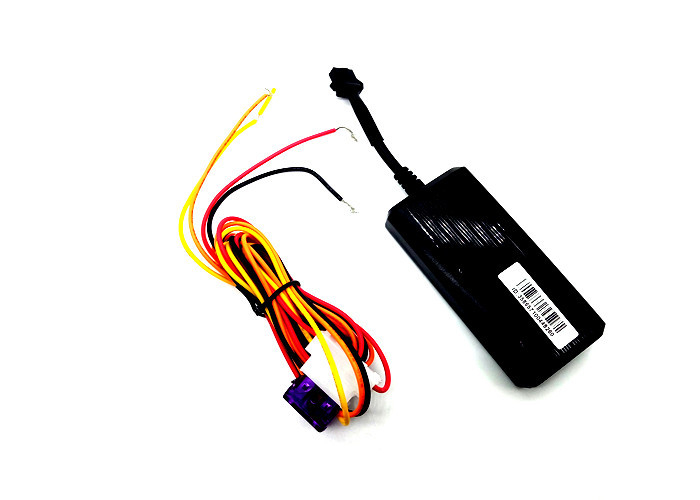

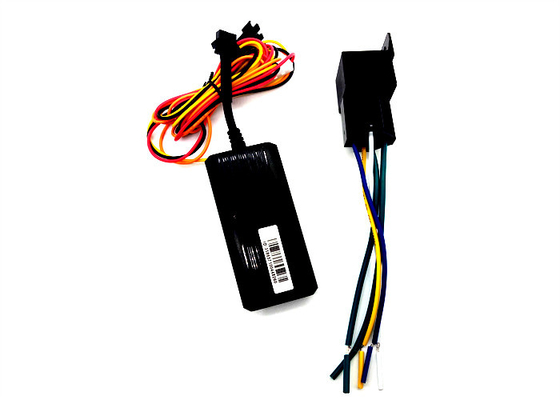

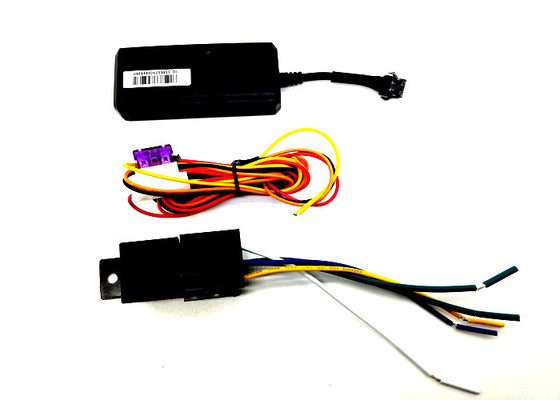

TK003 Black Package 4G Real Time Vehicle GPS Tracker Android Car Tracking Device
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Certificate: | ISO CE | Model Number: | C003-01-4G |
|---|---|---|---|
| Warranty: | 24 Month | Network: | 4G 3G 2G |
| Weight: | 0.05kg | Battery: | Built-in 200mAh |
| Keyword: | 4G GPS Tracker | Whatsapp: | +8613717161241 |
| High Light: | FCC 4G Car GPS Tracker,LBS Locating Vehicle GPS Tracker,Geo Fence 4G GPS Tracker |
||
TK003 Black Package 4G Real Time Vehicle GPS Tracker Android Car Tracking Device
Product Instruction:
| Remote cut-off (petrol/power) | Light and compact |
| Compel the vehicle to stop by breaking off the fuel connection | Small size allowing covert & easy mounting |
| Tracked by: SMS, APP, Web | voltage range:9-100V |
| Reports location in real time through different interfaces |
Voltage adaptation up to 100v |
| ACC detection | GPS + LBS Positioning |
| Be aware of the ignition status where you need | Allow the location to be pinpointed in real time |
Technical parameter:
1).GSM:850/900/1800/1900 Quad band
2).GPRS: Class12, TCP/IP
3).Working Voltage:9-100V DC
4).Working current:≈22mA (12vDC)
5).Working current:≈12mA (24vDC)
6).GPS locating time:Cold start≈38s(Open sky)
Warm start≈32s Hot start≈2s(Open sky)
7).GPS Precision:10m(2D RM)
8).Working temperature:-20℃～+70℃
9).Working humidity:20%～80%RH
10).Measurement:90(L)×40(W)×15(H)mm
TK003 Black Package 4G Real Time Vehicle GPS Tracker Android Car Tracking Device
Band:
| Europe / Middle East / Africa / South Korea / Thailand EC25-E: |
LTE FDD: B1/B3/B5/B7/B8/B20 LTE TDD: B38/B40/B41 WCDMA: B1/B5/B8 GSM: B3/B8 |
| North America EC25-A EC25-V |
LTE FDD: B2/B4/B12 WCDMA: B2/B4/B5 LTE FDD: B4/B13 |
| Australia/New Zealand/Taiwan/Brazil EC25-AU |
LTE FDD: B1/B2*/B3/B4/B5/B7/B8/B28 LTE TDD: B40 WCDMA: B1/B2/B5/B8 GSM: B2/B3/B5/B8 |
| EC25-AUTL: | LTE FDD: B3/87/828 |
| Japan EC25-J |
LTE FDD: B1/B3/B8/B18/B19/B26 LTE TDD: B41 WCDMA: B1/B6/B8/B19 |
| 2G | GSM 850MHz,900MHz,1800MHz,1900MHz |
| 3G | WCDMA 2100/1900/900/850MHz |
| 4G | FDD-LTE 800/850/900/1800/2100/2600MHz |
TK003 Black Package 4G Real Time Vehicle GPS Tracker Android Car Tracking Device
Product Details
| Place of Origin | Shenzhen China |
| Network | GSM/GPRS 850/900/1800/1900MHz |
| Certificate | CE ROHS FCC |
| Warranty | 2years |
| Function | 4G GPS Tracking |
| Battery | 200mAH |
| Operation System | Andorid IOS |
| GPRS | Class12, TCP/IP |
| Content | Specs. |
| Dim. | 90 mm x40 mm x 15 mm |
| Weight | 50g |
| Network | GSM/GPRS/GPS |
| Band | 850/900/1800/1900 MHz |
| GPS chip | U-B |
| GSM module | MTK6261 |
| GPS accuracy | 10m |
| GPS locating time | Cold start≈38s(Open sky) |
| Warm start≈32s(Open sky) | |
| Hot start≈2s(Open sky) | |
| Work voltage | DC9V-100V |
| Storage Temp. | -40°C to +85°C |
| Humidity | 20%--80% |
Produce Description
| GSM | GPRS |
| Geo-sensor | Input power |
| ACC | Ignition checking |
| Built-in battery | Cutt off power/fuel |
| Real time tracking | Over speed alarm |
| Relay supported | Platform /APP supported |
TK003 Black Package 4G Real Time Vehicle GPS Tracker Android Car Tracking Device
Device Indicatiors:
| LIGHT | Functions |
| Red LED | Connect DC 9-100V power supply and will light continuously. |
| The red LED is the power signal, | |
| It is always on when the external DC is connected. | |
| blue LED | It is he GSM signal indicator. |
| It is always on when there is no GSM; | |
| It flashes when GSM is normal; | |
| It flashes quickly when transmitting data. | |
| yellow LED | It is the GPS signal indicator: |
| It is always on when there is no positioning; | |
| It flashes after positioning. |
Device wiring requirements
1 The device power supply is DC 9-100V. The red line is positive pole while
the black line is negative pole.
2 The negative pole of power supply connects with ground or the metals.
Please do not connect with other ground lines.
3 When finishing the power supply wire connection, please make the plug of
power supply to the device
Any issue please contact the local distributors.
FAQ:
| Q:Haw can i buy it? |
| A:We accept T/T,Westem Uniton and Paypl.After we recerive your payment. |
| Q:Can we put into my motorcycle? |
| A:Yes,of course!it support DC9-100V voltage input for any vehicles. |
| Q:Can we use your platform? |
| A:yes,you can use our platform.And it is free to use. |
| Q:What is the lead time if we place order to get the parcel? |
| A:It needs 1-10 working days after received your payment |
