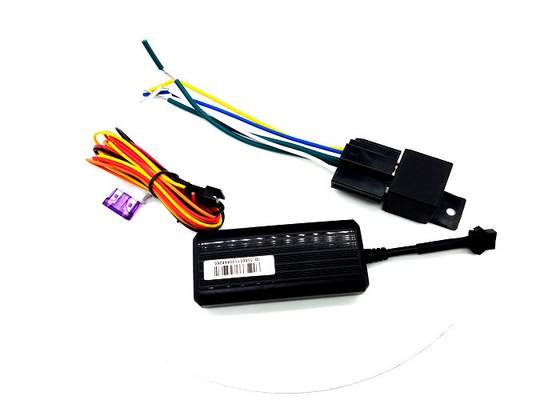

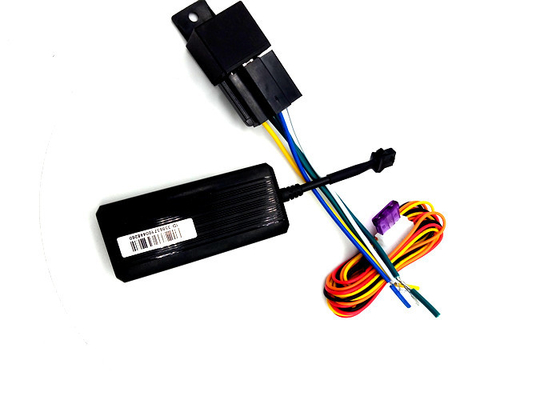

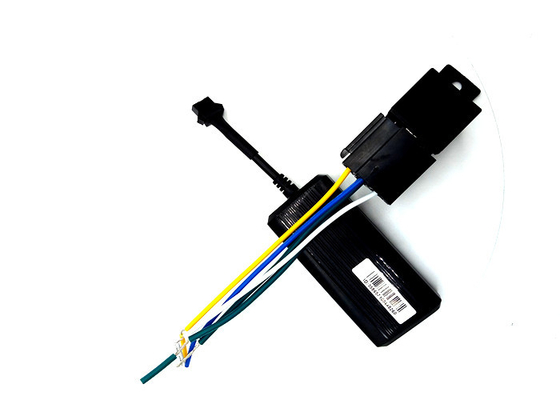

TK003 Anti Theft 4G GPS Tracking Device CAR Vehicle GPS GPRS 2G 3G 4G GPS Tracker
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Brand Name:: | TK003 4G Tracker | Use: | Motorcycle, Other, Automotive |
|---|---|---|---|
| Network: | GSM/GPRS/GPS | Application: | Web Platform Android APP IOS |
| Placement: | Windshield, Instument Panel | Built-in Battery: | 200mAH |
| Model Number: | GT06 | GPS Accuracy: | 5M |
| High Light: | FCC 4G Car GPS Tracker,LBS Locating Vehicle GPS Tracker,Geo Fence 4G GPS Tracker |
||
TK003 Anti Theft 4G GPS Tracking Device CAR Vehicle GPS GPRS 2G 3G 4G GPS Tracker
Product description
2G:GSM 850MHz,900MHz,1800MHz,1900MHz
3G WCDMA 2100/1900/900/850MHz
4G:FDD-LTE 800/850/900/1800/2100/2600MHz
Cut oil or circuit (relay is optional )
Over speed alarm
moving alarm
Vibration alarm
power cutoff alarm
Acc ignition detection
built-in battery is 200Mah
Microphone (optional)
SOS button (optional)
Relay (optional)
Product Paramenters
|
GSM Frequency
|
GSM 850/900/1800/1900MHz
|
|
Dimension
|
90*40*15mm
|
|
Weight
|
50g
|
|
Built-in Battery
|
200mAh
|
|
Colors
|
Black
|
|
Operating Voltage
|
9-36VDC
|
|
Working mode
|
Normal mode
|
|
Antenna
|
Built-in GPS and GSM antenna
|
|
Location Accuracy
|
10meters
|
|
Location time
|
Hot start:≤2sec(open sky)
|
|
|
Cold start:≤38sec(open sky)
|
|
Operating Temperature
|
-20℃~70℃
|
|
Operating Humidity
|
20%~80%
|
TK003 Anti Theft 4G GPS Tracking Device CAR Vehicle GPS GPRS 2G 3G 4G GPS Tracker
Technical parameter:
1).GSM:850/900/1800/1900 Quad band
2).GPRS: Class12, TCP/IP
3).Working Voltage:9-100V DC
4).Working current:≈22mA (12vDC)
5).Working current:≈12mA (24vDC)
6).GPS locating time:Cold start≈38s(Open sky)
Warm start≈32s Hot start≈2s(Open sky)
7).GPS Precision:10m(2D RM)
8).Working temperature:-20℃～+70℃
9).Working humidity:20%～80%RH
Main componets:
| GPS | functions: |
| protocol: GT06 | 1)support ACC ignition checking |
| G-sensor : BS250E | 2)support Relay for cutting off power/fuel |
| input power: 9-100V | 3)built-in GPS antenna: 18*18*4 mm |
| power IC: SL3036H | 4)built-in battery, Real time tracking |
| GSM module: MT6261 | 5)Geo-fence, over speed alarm, |
| GPS module: Ublox | 6) platform /APP supported |
Device status indicators
| LIGHT | Functions |
| Red LED | Connect DC 9-100V power supply and will light continuously. |
| The red LED is the power signal, | |
| It is always on when the external DC is connected. | |
| blue LED | It is he GSM signal indicator. |
| It is always on when there is no GSM; | |
| It flashes when GSM is normal; | |
| It flashes quickly when transmitting data. | |
| yellow LED | It is the GPS signal indicator: |
| It is always on when there is no positioning; | |
| It flashes after positioning. |
TK003 Anti Theft 4G GPS Tracking Device CAR Vehicle GPS GPRS 2G 3G 4G GPS Tracker
Terminal Outlet Defined
(1) Red line connects positive power;
(2) Black line connects negative power;
(3) Orange connects ACC;
(4) Yellow connects relay
Please use the original supplied power cord, the red line is the positive power supply,
black for negative power, negative power installation, choose a separate grounding or
connect metal, do not connect with the other ground wire together. If need ACC
automatic anti-theft function, ensure to connect the ACC line, the device will detect the
ACC state to decide whether to enter the security mode; If not connect to ACC line, the
vehicle will enter the security mode, vibration occurs under the security mode, vibration
alarm will be triggered.
Proper Use of The Product
Install→Power on→Settings→Register
Installation: GPS antenna should be facing toward the sky, above the mounting location
must be no material (such as metal, window film) absorption of electromagnetic waves
sheltered place.
Boot: Insert the SIM card correctly, connect the wire according to diagram, then turn on
the power.
Setting: Must be done, or can not do other operations, mobile phone owners send text
messages to set the owner number and a specific number to the terminal SIM card.
Registration: Registration method is different subject to dealer platforms, please consult
your dealer.
TK003 Anti Theft 4G GPS Tracking Device CAR Vehicle GPS GPRS 2G 3G 4G GPS Tracker
Red light - Power Indicator / OBD Work Lights
| LED Status | Meaning |
| Flash once in 2 seconds | Normal operation / OBD working properly |
| No light | Shutdown / OBD sleep |
Yellow indicator light -GSM
| LED Status | Meaning |
| Flash once in 2 seconds | GSM initialization |
| Light Always | GPRS is normal / already online |
| No light | GSM sleep |
Blue LED light -GPS
| LED Status | Meaning |
| Flash once in 2 seconds | GPS signal searching |
| Light Always | GPS targeted |
| No light | GPS sleep |
FAQ:
| Q:Haw can i buy it? |
| A:We accept T/T,Westem Uniton and Paypl.After we recerive your payment. |
| Q:Can we put into my motorcycle? |
| A:Yes,of course!it support DC9-100V voltage input for any vehicles. |
| Q:Can we use your platform? |
| A:yes,you can use our platform.And it is free to use. |
| Q:What is the lead time if we place order to get the parcel? |
| A:It needs 1-10 working days after received your payment |
