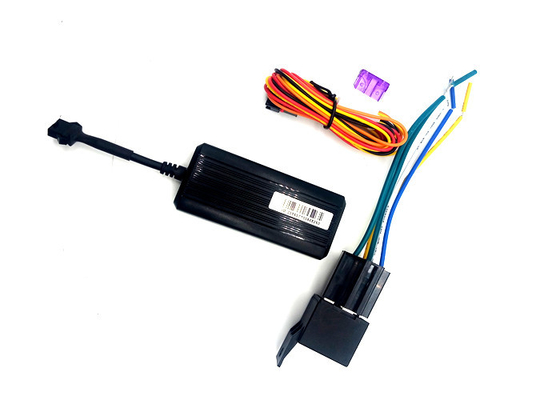

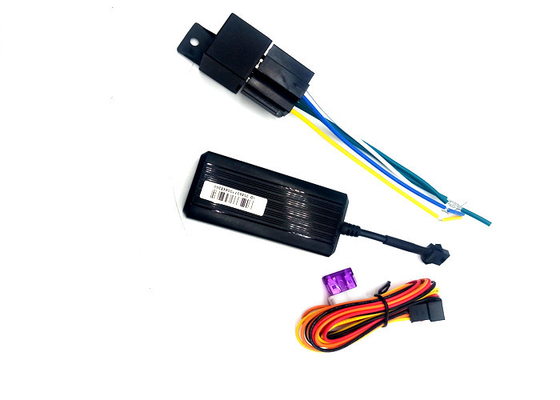

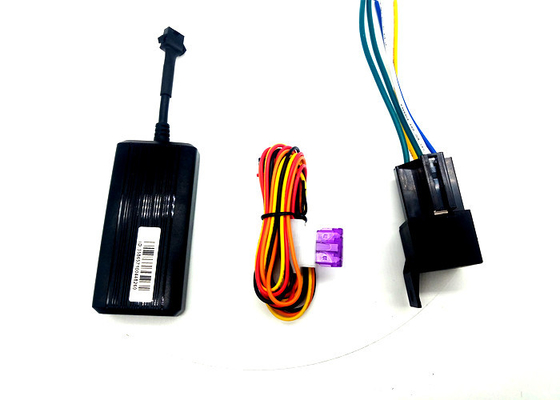

Real Time Checking 4G GPS Precision Tracking Device Supply DC9-100V Built-in GPS Antenna
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| DIM: | 90*40*15mm | Weight: | 50g |
|---|---|---|---|
| LTE FDD1: | B1/B3/B5/B7/B8/B20 | LTE FDD2: | B38/B40/B41 |
| RAM: | 32M | Feature1: | Remote Control |
| Function: | Remote Monitor | Component: | GPS Antenna |
| GSM Module: | MT6261 | Feature2: | Cut Oil/circuit |
| High Light: | FCC 4G Car GPS Tracker,LBS Locating Vehicle GPS Tracker,Geo Fence 4G GPS Tracker |
||
Real Time Checking 4G GPS Precision Tracking Device Supply DC9-100V Built-in GPS Antenna
Technical parameter:
| GSM: | 850/900/1800/1900 Quad band |
| GPRS: | Class12, TCP/IP |
| Working Voltage | 9-100V DC |
| Working current: | ≈22mA (12vDC) |
| Working current: | ≈12mA (24vDC) |
| GPS locating time: | Cold start≈38s(Open sky) Warm start≈32s Hot start≈2s(Open sky) |
| GPS Precision: | 10m(2D RM) |
| Working temperature: | *-20℃～+70℃ |
| Working humidity: | 20%～80%RH |
| Measurement: | 90(L)×40(W)×15(H)mm |
Main components:
GPS functions:
protocol: GT06 1)support ACC ignition checking ,
G-sensor : BS250E 2)support Relay for cutting off power/fuel
input power: 9-100V 3)built-in GPS antenna: 18*18*4 mm
power IC: SL3036H 4)built-in battery, Real time tracking.
GSM module: MT6261 5)Geo-fence, over speed alarm,
GPS module: Ublox 6)platform /APP supported
Real Time Checking 4G GPS Precision Tracking Device Supply DC9-100V Built-in GPS Antenna
GPS Tracker Main Functions:
1. Real-Time Positioning:
TK003 GPS Tracker Device will get the real-time position message and upload all status to the server system.
And will display the position on the map. you can click any of the points to know the name. locating time. and acc status. speed
GPS Time, direction, and so on.
2. Vibration alarm:
After setting the command of vibration by SMS. When it moves there will be a vibration alarm message.
3. Power-off alarm:
If the power supply of GPS Tracker is cut off or GPS Tracker will send the alarm message to the server or bonded Phone number.
4. Remote Car Lock
If an illegal ignition alarm receives from GPS Tracker, you can remotely cut off the vehicle circuit, so that to avoid being driven away.
Terminal connection:
male switch, Female switch
Red(positive) Black (Negative)
1. red wire connect positive(+),black wire connect negative(-)
2. power input connector to power positive and negative connectors( make sure connect the right connector)
Real Time Checking 4G GPS Precision Tracking Device Supply DC9-100V Built-in GPS Antenna
Frequently used commands:
| Command | Explain | Reply content |
| IMEI# | IMEI query | IMEI: 116790246811200 |
| IMEI,116790246811200# | Set IMEI | OK |
| FACTORY# | Restore factory settings | OK, The terminal will restart after 30 seconds! |
| RESET# | restart | The terminal will restart after 1 minute! |
| WHERE# | Location query | Current position!Lat:N22.589031,Lon:E113.853567,Course:0,Speed:0,DateTime:2018-07-26 10:25:55 |
| URL# | Google link query |
GPS! N4.85094 E7.06102 speed:000.0 T:07/13/19 11:37 http://maps.google.com/maps?q=N4.864553,E6.983681 |
| SERVER# | Server query | server,1,gw.carhere.net,8005,0# |
| server,1,gps-go.com,6006,0# | Set domain name | ok |
| Server,0,121.201.110.106,6006,0# | Set IP | ok |
| GMT# | Time zone query | Currently Timezone(GMT):E,8,0 |
| APN# | APN query | Currently in use APN:peoples.net,0000,0000; |
| APN,xxxx# | Set APN | |
| APN,xxxxt,userAAA,passBBB# | Set apn and apn user,password | Example: apn,cmnet,aaa,000# |
|
GMT,<A>,<b>[,C]#
example, GMT,E,8,0#
|
Change time zone command |
A:E/W, E east time zone, W west time zone, default: E B: 0～12; time zone, default value: 8 C: 0/15/30/45, half time zone, default value: 0
|
Installation for the Car/Motorcycle/E-bike
The GPS tracker must be installed under professional personnel.
Note:
1) Please install the device in the hidden place as followings:
Under Front windshield；
In the front instrument panel；
Under back windshield；
2) Avoid being placed with signal radiators like reverse sensor ；
3) The device has GSM antenna and GPS antenna inside.
Please ensure the receiving side of the device is face up and without metal cover.
Note:The metal cover will lessen the receiving of GPS signals.
Real Time Checking 4G GPS Precision Tracking Device Supply DC9-100V Built-in GPS Antenna
| Q:Haw can i buy it? |
| A:We accept T/T,Westem Uniton and Paypl.After we recerive your payment. |
| Q:Can we put into my motorcycle? |
| A:Yes,of course!it support DC9-100V voltage input for any vehicles. |
| Q:Can we use your platform? |
| A:yes,you can use our platform.And it is free to use. |
| Q:What is the lead time if we place order to get the parcel? |
| A:It needs 1-10 working days after received your payment |
