Relay Optional 4G GPS Tracker Anti theft Car Vehicle Vibration Alarm Moving Alarm Power cut off Alarm
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Built-in Battery: | 200mAH | GPS Modul: | Ublox |
|---|---|---|---|
| GSM Module: | MT6261 | Type: | 4G |
| Warranty: | 2 Years | USE: | Car Vehicle Motocycle E-bike |
| Weight: | 50g | Feature: | Real Time Tracking |
| Function1: | Vibration Alarm | Function2: | Moving Alarm |
| Function3: | Power Cutting Off Alarm | Size: | 90*40*15mm |
| High Light: | FCC 4G Car GPS Tracker,LBS Locating Vehicle GPS Tracker,Geo Fence 4G GPS Tracker |
||
Relay Optional 4G GPS Tracker Anti theft Car Vehicle Vibration Alarm Moving Alarm Power cut off Alarm

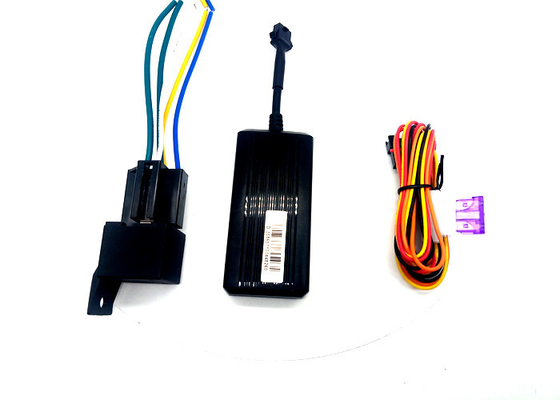

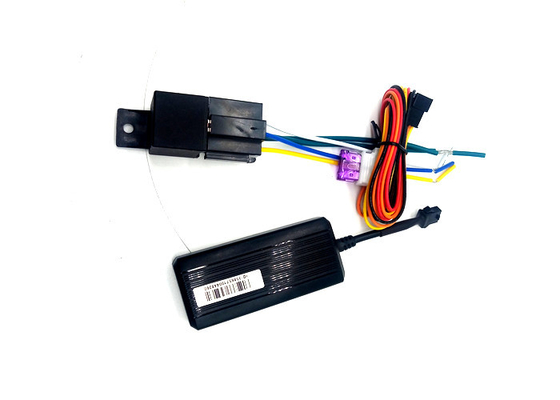

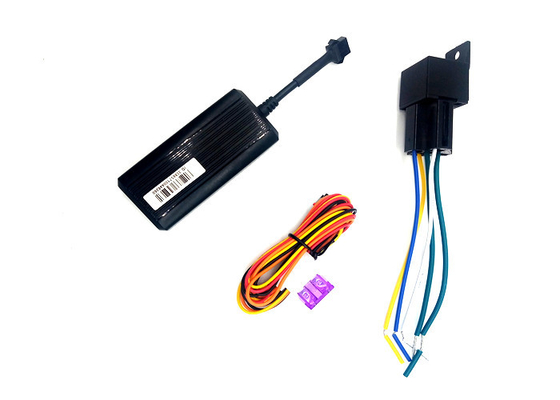

1．Accessories:
Tables:
| Red＆black | =power |
| Orange cable | =ACC/ignition |
| Yellow | =Relay |
2 .Technical parameter:
1).GSM:850/900/1800/1900 Quad band
2).GPRS: Class12, TCP/IP
3).Working Voltage:9-100V DC
4).Working current:≈22mA (12vDC)
5).Working current:≈12mA (24vDC)
6).GPS locating time:Cold start≈38s(Open sky)
Warm start≈32s Hot start≈2s(Open sky)
7).GPS Precision:10m(2D RM)
8).Working temperature:-20℃～+70℃
9).Working humidity:20%～80%RH
10).Measurement:90(L)×40(W)×15(H)mm
3 . Main components: (V1.0)
| GPS | functions: |
| protocol: GT06 | 1)support ACC ignition checking |
| G-sensor : BS250E | 2)support Relay for cutting off power/fuel |
| input power: 9-100V | 3)built-in GPS antenna: 18*18*4 mm |
| power IC: SL3036H | 4)built-in battery, Real time tracking |
| GSM module: MT6261 | 5)Geo-fence, over speed alarm, |
| GPS module: Ublox | 6) platform /APP supported |
Relay Optional 4G GPS Tracker Anti theft Car Vehicle Vibration Alarm Moving Alarm Power cut off Alarm
4 . Product Features
| GSM two-way | 850/900/1800/1900 MHz |
| GPS positioning | GPS sensitivity: -162dBm |
| GPS positioning accuracy: 2 meters (under open conditions) | |
| Speed accuracy: 0.1 m/s | |
| Cold start time: <38 seconds | |
| Warm start time: <32 seconds | |
| Hot start time: <2 seconds | |
| Base station positioning | Support base station positioning, positioning accuracy: 10~200 meters |
| Vandalism | Support anti-counterfeiting base station, anti-detection function |
| Working current | Average current <30mA (12VDC), maximum current <100mA (12VDC) |
| Operating temperature | -20~+65℃ |
| Material | Engineering plastics |
| Weight | 50G |
| Network | 4G LTE/3G/2G |
| Dim. | 90*40*15mm |
| Storage Temp. | -40°C to +85°C |
| Accuracy | 5-20m |
| Operation Temp. | -20°C to +55°C |
| Humidity | 5%--95% non-condensing |
| Working Voltage | 9-80V |
| CPU | MTK6261 |
| RAM | 32MB |
| ROM | 32MB |
| Waterproof | Optional |
5 . Device status indicators
5.1 Connect DC 9-100V power supply and the red LED will light continuously.
The red LED is the power signal,
it is always on when the external DC is connected.
5.2 The blue LED is the GSM signal indicator.
It is always on when there is no GSM;
it flashes when GSM is normal;
it flashes quickly when transmitting data.
5.3 The yellow LED is the GPS signal indicator:
it is always on when there is no positioning;
it flashes after positioning.
| Q:Haw can i buy it? | |
| A:We accept T/T,Westem Uniton and Paypl.After we recerive your payment. | |
| Q:Can we put into my motorcycle? | |
| A:Yes,of course!it support DC9-100V voltage input for any vehicles. | |
| Q:Can we use your platform? | |
| A:yes,you can use our platform.And it is free to use. | |
| Q:What is the lead time if we place order to get the parcel? | |
| A:It needs 1-10 working days after received your payment |
Relay Optional 4G GPS Tracker Anti theft Car Vehicle Vibration Alarm Moving Alarm Power cut off Alarm
6. Device wiring requirements
6.1 The device power supply is DC 9-100V. The red line is positive pole while the black line is negative pole.
6.2 The negative pole of power supply connects with ground or the metals. Please do not connect with other ground lines.
6.3 When finishing the power supply wire connection, please make the plug of power supply to the device
Any issue please contact the local distributors.
