Product Details:
Payment & Shipping Terms:
|
Network: | 4G GPS Network | Working Current: | ≈22mA (12vDC) |
---|---|---|---|
GSM Module: | MT6261 | Built-in Battery: | 200Mah |
Scope Of Application: | Car Motocycle E-Bike | Function1: | Anti-Theft |
Function2: | Moving Alarm | Function3: | Vibration Alarm |
High Light: | FCC 4G Car GPS Tracker,LBS Locating Vehicle GPS Tracker,Geo Fence 4G GPS Tracker |

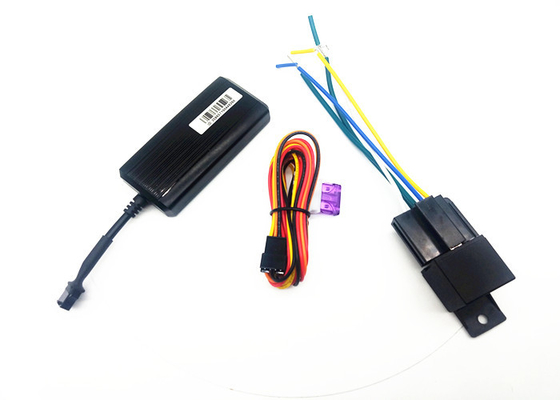

4G GPS Tracking 2600MHz 22MA MTK6261 GPRS GSM 200mAh Car GPS Tracker
Technical parameter
1).2G:GSM 850MHz,900MHz,1800MHz,1900MHz Quad band
3G WCDMA 2100/1900/900/850MHz
4G:FDD-LTE 800/850/900/1800/2100/2600MHz
2).GPRS: Class12, TCP/IP
3).Working Voltage:9-100V DC
4).Working current:≈22mA (12vDC)
5).Working current:≈12mA (24vDC)
6).GPS locating time:Cold start≈38s(Open sky)
Warm start≈32s Hot start≈2s(Open sky)
7).GPS Precision:10m(2D RM)
8).Working temperature:-20℃~+70℃
9).Working humidity:20%~80%RH
Main components
GPS | functions: |
protocol: GT06 | 1)support ACC ignition checking |
G-sensor : BS250E | 2)support Relay for cutting off power/fuel |
input power: 9-100V | 3)built-in GPS antenna: 18*18*4 mm |
power IC: SL3036H | 4)built-in battery, Real time tracking |
GSM module: MT6261 | 5)Geo-fence, over speed alarm, |
GPS module: Ublox | 6) platform /APP supported |

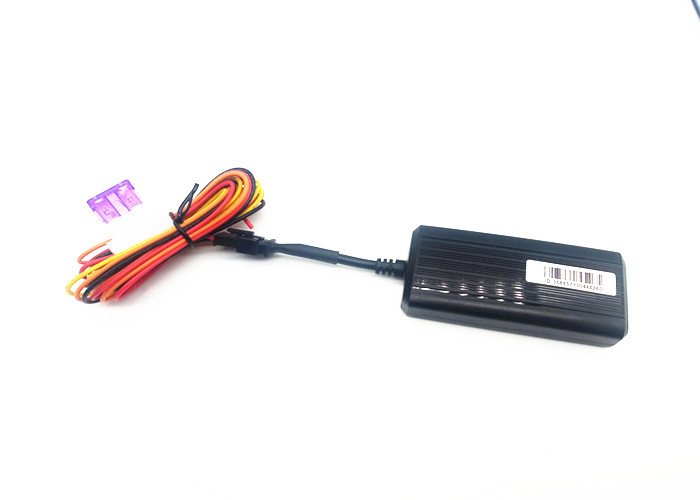

4G GPS Tracking 2600MHz 22MA MTK6261 GPRS GSM 200mAh Car GPS Tracker
4 Device status indicators
4.1 Connect DC 9-100V power supply and the red LED will light continuously.
The red LED is the power signal,
it is always on when the external DC is connected.
4.2 The blue LED is the GSM signal indicator.
It is always on when there is no GSM;
it flashes when GSM is normal;
it flashes quickly when transmitting data.
4.3 The yellow LED is the GPS signal indicator:
it is always on when there is no positioning;
it flashes after positioning.
5.Installation for SIM of device
5.1 Preparation for the installation
5.1.1 Product Check | Open the packing box and check the device‘s model and accessories. If the model is wrong or the accessories not complete, please contact the dealer. |
5.1.2 Choose SIM card | Please insert a SIM card to the device. Please take dealer’s advice as reference. |
5.1.3 SIM card installation | Discharge the cover of the device and uncover the SIM card holder. Then insert the SIM card and cover SIM card holder. |
5.1.4 Put back the front cover and screw it up. | |
5.1.5 Connect the device to the 9-100Vpower supply.(the red LED constant glow) | |
5.1.6 Install the device in the hidden place of the car; |

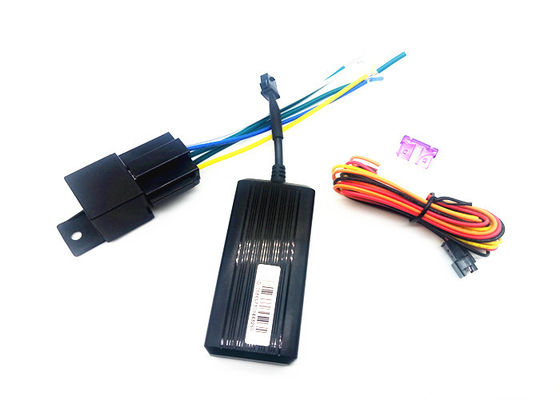

4G GPS Tracking 2600MHz 22MA MTK6261 GPRS GSM 200mAh Car GPS Tracker
5.2 Installation for the Car/Motorcycle/E-bike
The GPS tracker must be installed under professional personnel.
Note:
1) Please install the device in the hidden place as followings:
Under Front windshield;
In the front instrument panel;
Under back windshield;
2) Avoid being placed with signal radiators like reverse sensor ;
3) The device has GSM antenna and GPS antenna inside. Please ensure the receiving side of the device is face up and without metal cover.
Note:The metal cover will lessen the receiving of GPS signals.
6. Device wiring requirements
6.1 The device power supply is DC 9-100V. The red line is positive pole while the black line is negative pole.
6.2 The negative pole of power supply connects with ground or the metals. Please do not connect with other ground lines.
6.3 When finishing the power supply wire connection, please make the plug of power supply to the device
