Product Name: | Gps Speed Limiter | Network: | GPS/GPRS/GSM |
---|---|---|---|
Oversize: | 10.5*8.3*3.1 CM | Net Weight: | 0.24kg |
Voltage: | DC 9V-36V | Certification: | CE ROHS |
Operating Humidity: | 20%-90% | Speed Limit Scope: | 40-120KM/H |
Frequency: | 850/900/1800/1900Mhz | ||
High Light: | Ethiopia Vehicle GPS Speed Limiter,850Mhz Vehicle GPS Speed Limiter,ES6413 Speed Recorder |
YTWL CA100F Road Ethiopia Standard Vehicle GPS Speed Limiter ES6413 Speed Recorder
Supply and Installation of Speed Limiter with the integrated GPS system on 200 units of vehicles
Reference: ITB/2020/13893
Beneficiary Country: Ethiopia
Registration level: Basic
Ethiopia has provisionally agreed on new rules that state speed limiters will become mandatory for all vehicles sold throughout the country.
Road Speed Limiters were developed to improve safety and the environment by controlling the speed of vehicles, thus reducing serious accidents and pollution. The basic function of the system is to limit the maximum speed of a vehicle to a pre-set level without affecting any of the performance of the vehicle.
YTWL CA100F Road Ethiopia Standard Vehicle GPS Speed Limiter ES6413 Speed Recorder
3. Technical Parameter:
Content | Specs. |
Dim. | 117*92*31 (mm) |
Weight | 280g |
Network | GSM/GPRS/GPS |
Band | 850/900/1800/1900MHz |
GPS chip | U-blox |
GSM/GPRS Module | SIM800C |
Bluetooth Module | BT360I |
CPU | STM32F105RBT6 |
Power IC | TD1509-ADJ |
Anti-jamming | Strengthened Anti-jamming |
GPS sensitivity | -159dBm |
GPS accuracy | 5 m |
Time To First Fix |
Reacquisition 0.1s Cold status 45s Warm status 35s Hot status 1s |
Work Voltage | DC 9V-36V |
Battery | Rechargeable 3.7V / 1000mAh Li-ion battery (Customizable) |
Standby work current | < 40mA |
Storage Temp. | -40°C to +85°C |
Operation Temp. | -20°C to +70°C |
Humidity | 5%--95% non-condensing |
YTWL CA100F Road Ethiopia Standard Vehicle GPS Speed Limiter ES6413 Speed Recorder
Product Description
Vehicle speed limiter CA100F is intelligent terminal equipment that can realize precise speed limits for vehicles. It is not only a speed limiter but also a GPS Tracker.
The retrieved data shall be in a format that the motor vehicle inspection officer will be able to understand without requiring the services of a speed limiter specialist.
3. Including
Analysis of the content of TCP reply:
(TP121.201.110.106P7000DD000019171223244F0000S0014R0000ON30OFF60VJun 12 2020A:CMNET,p450,s80,c15, 0.360V, 0.720V,12.43V,a0,G00,-59 dbm)
TP121.201.110.106 P7000: IP and port
DD000019171223244: device ID number
F0000S0014: upload data fail 0 times, successful 14 times
R0000: memory data is 0
ON30OFF60: interval of acc on is 30 seconds, and acc off is 60 seconds
VJun 12 2020: firmware of the devices is JUN 12 2020
A:CMNET: the APN is CMNET
p450: Pulse coefficient is 450 (If the pulse coefficient is larger, the speed will be smaller)
s80: speed limiter max =80km/h
c15: For mechanical throttle, the time to disconnect the fuel line is 15 seconds
0.360V, 0.720V: Two throttle voltage values for electronic throttle vehicles
12.43V: vehicle voltage values
a0: a0 is acc off, a1 is acc on
G00: G00 means GPS not fixed, G10 means 10 satellites found
-59 dbm: GSM signal
4. Installation:

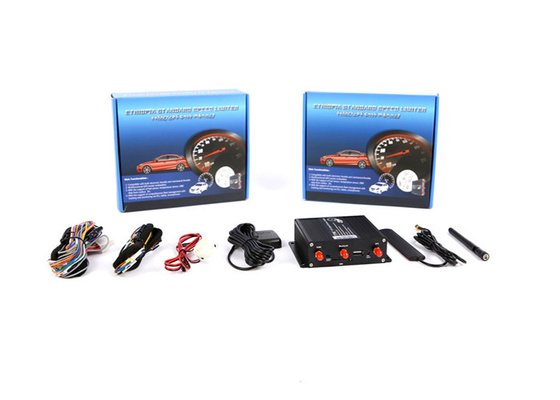

1) Product Accessory:
① Power wire
② Executor wire
③ Extension wire
④ Speaker
⑤ GPS Antenna
⑥ GSM Antenna
⑦ SIM Card Slot
⑧ User Manual
The following lines are indispensable in the installation:
6: Brown line
8: Orange line, the line of the buzzer
9: Grayline, pick up the pulse line of the original car, connect the pulse line speed limiter, the speed limit function will not have too much delay, use GPS signal speed limit, there will be a delay of about 2 seconds
10: ACC line
11: Power ground
12: Positive power supply
5. ADD GPS device to the platform
About platform
1. Load the GPS platform: www.gps-go.com
User:XXXX password:123456
Note: XXXX is the platform account, need to contact a salesman to get this account name and password
For APP, search gps-go in google store or download from this QR:
2. The platform functions and report
3. Track: you can see the real-time location of the vehicle
