95% Accuracy RS232 125mA 1Cr18Ni9Ti GPS Fuel Sensor
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Abrasive Paper: | Used To Clean The Bottom Of The Tank | Accuracy: | 95% |
|---|---|---|---|
| Output Signal: | 0V～5V,4-20mA | Wire Output: | 3 Wires |
| Operating Voltage: | 9-36V | Detection Current: | <125mA |
| Measurement Accuracy: | 2-5% | Detection Sensitivity: | 10-20mm |
| Lag Time: | 0.1s | The Whole Frame: | Column Type |
| High Light: | 1Cr18Ni9Ti GPS Fuel Sensor,RS232 GPS Fuel Sensor,125mA Fuel Temperature Sensor |
||

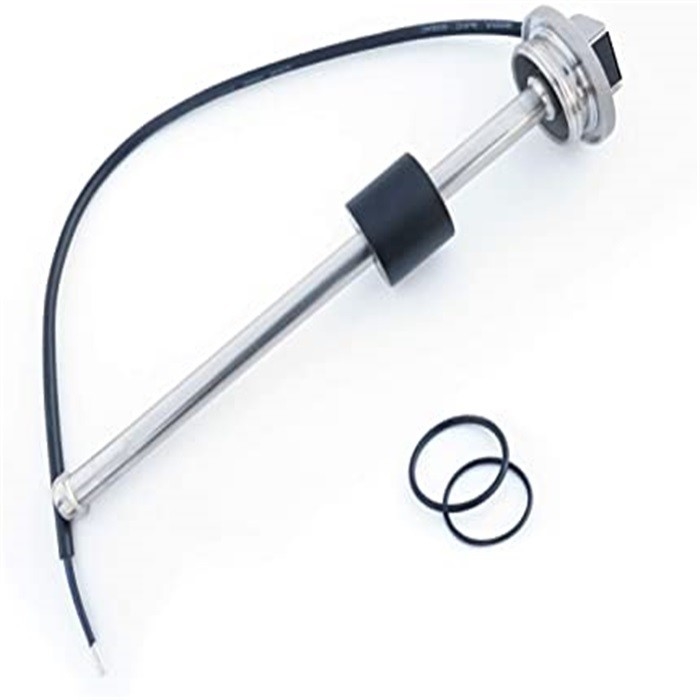

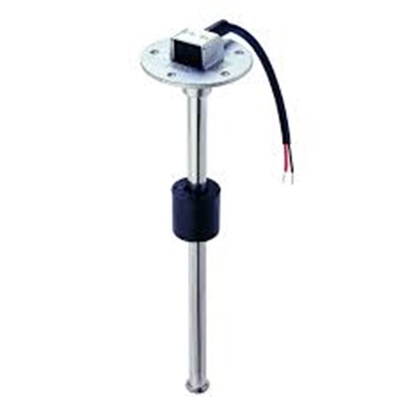

GPS High Precision Linear Oil Level Sensor/ Fuel Temperature Sensor
Product description:
the liquid level sensor is a level measuring instrument, contains a high-resolution ratio and measurement accuracy. It is an automatic calibration that does not need manual intervention, no temperature drift, and is not affected by the medium change. In other words, regardless of the measured medium is water or gas or diesel, no matter how temperature changes, it can output a signal of accurate liquid level height at one sensor. Completely solve the problem of measure medium difficulty, like ethanol and methanol, and the problem of measurement error caused by oil’s label and great temperature difference in different areas.
| parameters | |
| output signal | 0V～5V,4-20mA |
| Wire output | 3 wires (brown wire positive, blue wire negative, yellow wire 0-5V signal, 4-20mA) |
| Operating Voltage | 9-36V |
| Detection of current | <125mA |
| measurement accuracy | 2-5% |
| Detection sensitivity | 10-20mm |
| Basic error | 0.2V |
| Operating temperature | －40℃～＋90℃ |
| Lag time | 0.1s |
| Service life | 5 million times |
| the whole frame | Column type |
| The main material | Stainless steel (1Cr18Ni9Ti) round tube outer diameter 12.7mm |
| Float material | NBR foam ball, outer diameter size: ø35×32 mm (working in diesel, gasoline, water, methanol) |
| Hole Size | Hole center circle ø40mm |
| Installation method | Top-mounted |
| Wiring | Blue-ground wire; yellow-green-signal output; brown-power supply |
| Reference wiring | brown line-power+9-36v |
| blue line-Power negative | |
| yellow line-signal 0-5v output | |
| Precautions | Resistance signal products: brown wire resistance signal output, blue wire grounding (negative); |
| Voltage signal products: brown wire connected to +12/24V, blue wire negative, yellow wire 0-5V output |
Instruction
definition of the output line
Interface output line uses 6 core cable, connecting definition:
0~5V output [CLS2A]:
Blackline connect ground wire Red line connects positive power
White line 0~5V voltage signal output, connect voltage signal wire Yellow line empty fuel tank use only
Greenline full fuel tank use only
| RS232 | output [CLS2C] |
| Blackline | connect ground wire |
| Redline | connect positive power |
| White line | RXD input, connect car RS232 TXD |
| Blueline | TXD output, connect car RS232 RXD |
| Yellow line | empty fuel tank use only |
| Greenline | full fuel tank use only |
Greenline full fuel tank use only

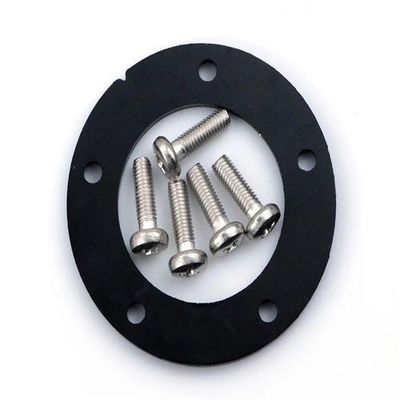

The guarantee period of the sensor is one year. All accessories including rubber blanket, O-Rings, are beyond the scope of “ three guarantees ”.
GPS High Precision Linear Oil Level Sensor Use At Mixer, Truck, Logistic Vehicle
The entire sensor machine doesn't contain any elasticity or moving parts. Impact resistance, maintenance-free, long service life, easy installation, can be installed on various occasions. An accurate measure for gasoline, diesel oil, hydraulic oil level, and other various weak corrosive liquid level.
other types
GPS High Precision Linear Oil Level Sensor Use At Mixer, Truck, Logistic Vehicle
GPS Tracker Applications:
Another model
Ultrasonic Wave Oil Level Sensor
Fuel Water sensor with low cost
CA-V1 Support fuel sensor
FAQ:
Do you have one GPS Tracker device that supports the fuel sensor?
Yes, all professional types of GPS trackers including V1/V2E have the support of this type of fuel sensors.
