Linear 12.7mm tube 125mA GPS Oil Level Sensor for Mixer Truck

GPS High Precision Linear Oil Level Sensor Use At Mixer, Truck, Logistic Vehicle

Product description:

the liquid level sensor is a level measuring instrument, contains a high-resolution ratio and measurement accuracy. It is automatic calibration which does not need manual intervention, no temperature drift, and is not affected by the medium change. In other words, regardless of the measured medium is water or gas or diesel, no matter how temperature changes, it can output signal accurate liquid level height at one sensor. Completely solve the problem of measure medium difficulty, like ethanol and methanol, and the problem of measurement error caused by oil’s label and great temperature difference in different areas.



Interface output line use 6 core cable, connecting definition:
0~5V output [CLS2A]:
Blackline connect ground wire Red line connects positive power
White line 0~5V voltage signal output,connect voltage signal wire Yellow line empty fuel tank use only
Green line full fuel tank use only

Greenline full fuel tank use only

The guarantee period of the sensor is one year. All accessories including rubber blanket, O-Rings, are beyond the scope of “ three guarantees ”.

Interface output line use 6 core cable, connecting definition:
0~5V output [CLS2A]:
Blackline connect ground wire Red line connects positive power
White line 0~5V voltage signal output,connect voltage signal wire Yellow line empty fuel tank use only
Green line full fuel tank use only

Greenline full fuel tank use only

The guarantee period of the sensor is one year. All accessories including rubber blanket, O-Rings, are beyond the scope of “ three guarantees ”.

GPS High Precision Linear Oil Level Sensor Use At Mixer, Truck, Logistic Vehicle
The entire sensor machine doesn't contain any elasticity or moving parts. Impact resistance, maintenance-free, long service life, easy installation,can be installed in various occasions. Accurate measure for gasoline, diesel oil, hydraulic oil level and other various weak corrosive liquid level .

GPS High Precision Linear Oil Level Sensor Use At Mixer, Truck, Logistic Vehicle
GPS Tracker Applications:

Another model

Ultrasonic Wave Oil Level Sensor

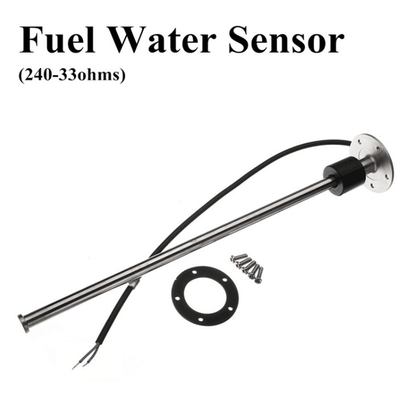

Fuel Water sensor with low cost

CA-V1 Support fuel sensor

FAQ:

Do you have one GPS Tracker device that supports the fuel sensor?

Yes, all professional types of GPS trackers including  V1/V2E have the support of this type of fuel sensors.

How can I buy it?

We accept T/T, Western Union, and Paypal after payment cleared. then we will send goods to you.

What is your WhatsApp?

My WhatsApp is +86 18673367060
