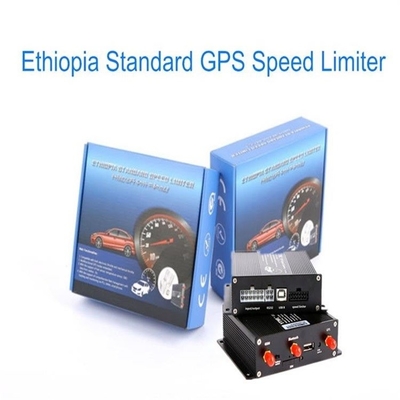

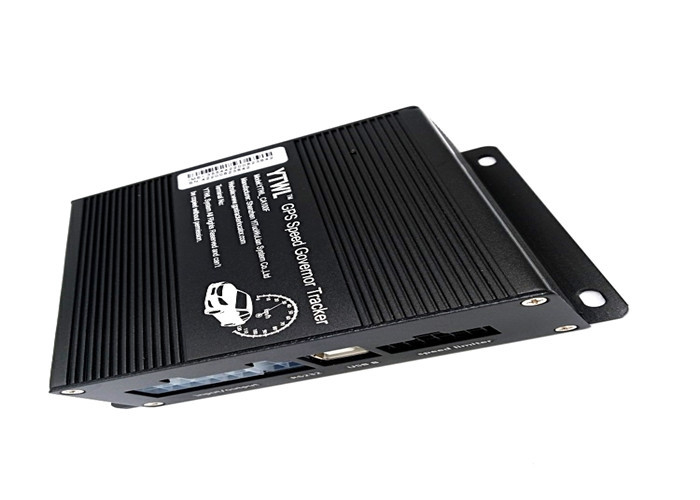

YTWL-100F GPRS 1900Mhz 120KM/H Ethiopia Speed Limiter

YTWL-100F Ethiopia Speed Limiter Road Traffic Motor Vehicles, Speed Limiters Rules

“speed limiter” means a device designed to limit the maximum speed of a motor vehicle by controlling the engine power of the vehicle.

Product Function:

2. Application Field:


Fixed Speed Control
The customized fixed maximum top speed limit increases the safety and fuel economy of your fleet.

Reverse Speed Control
Limits a vehicle's top speed in reverse. Limiting reverse top speed increases safety during a statistically high-risk category of operation.

Acceleration Control
Controls the rate at which the vehicle is able to accelerate. Inhibiting aggressive driving behaviors, increasing safety, and greatly improving fuel economy.

Upgradeable to ISA
Upgrade your VMS from fixed top speed limiting to variable top speed limiting at any time with our optional SpeedIQ kit. The upgrade offers even override Mode
Configurable overrides by a variety of input methods. This capability is especially useful for Emergency Services and others who require access to full speed and acceleration at times.

YTWL-100F Ethiopia Speed Limiter Road Traffic Motor Vehicles, Speed Limiters) Rules

3. Technical Parameter:

YTWL-100F Ethiopia Speed Limiter Road Traffic Motor Vehicles, Speed Limiters Rules

4.5.2 How to connect the relay

Relay have 4 lines:

87A and 30PIN are respectively connected to the two ends of the cut oil pump line

86 connects 12V or 24V power line in series

85PIN connects to the white line of the GPS speed limiter.

The following lines are indispensable in the installation:

6: Brown line

8: Orange line, the line of the buzzer

9: Grayline, pick up the pulse line of the original car, connect the pulse line speed limiter, the speed limit function will not have too much delay, use GPS signal speed limit, there will be a delay of about 2 seconds

10: ACC line

11: Power ground

12: Positive power supply

Technical specifications for Goods

· Speed Limiter Device with Integrated GPS: As per standard set by Ethiopian Standard Agency Standard Road Vehicle-GPS integrated Speed limiter Devices Requirements

· To provide a Warranty for two years for any problem that arises due to the device internal problem but this doesn’t include damage due to external force, extreme heat, fire or voltage of electricity or when the device is opened by any other person other than the company’s technician

· Speed Limit Equipment competency Verification Certificate is approved by the Ethiopian Road Authority to supply and install Speed Limiter with an integrated GPS system.

· Committed to complying with Human rights and labor issues (e.g. fundamental principles and rights at work, occupational health and safety, fairly traded goods, etc)

Other product

GPS tracker

Fuel level sensor

Pet GPS tracker

5. ADD GPS device to the platform

  About platform

1. Load the GPS platform: www.gps-go.com

User:xxxx password:123456

Note: XXXX is the platform account, need to contact a salesman to get this account name and password

For APP, search GPS-go in google store or download from this QR:

2. The platform functions and report

3. Track: you can see the real-time location of the vehicle

4. GEO-Fence: If a vehicle enters or leaves this Geo-fence, an alert message will be received on the platform
