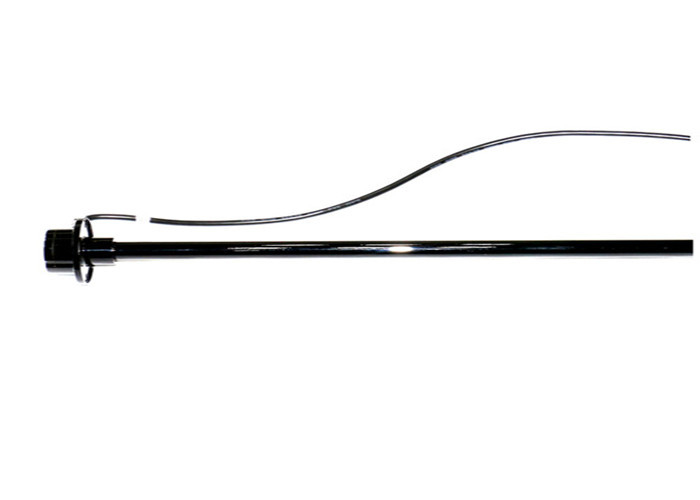

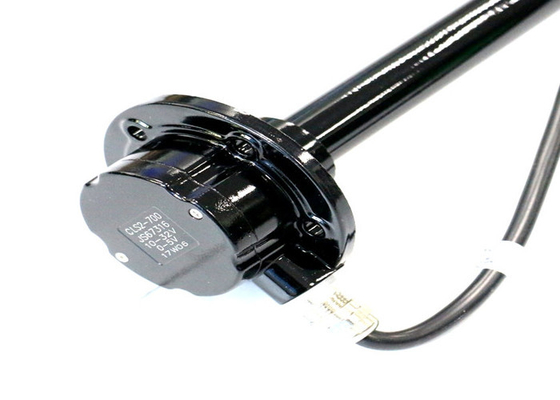

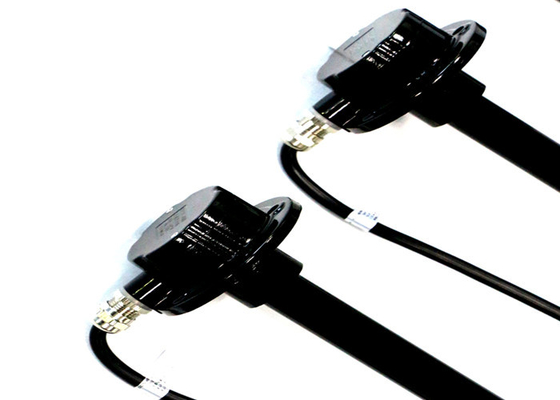

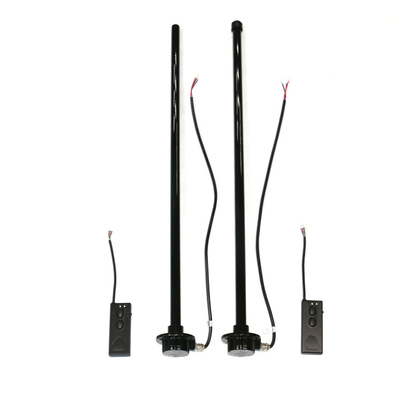

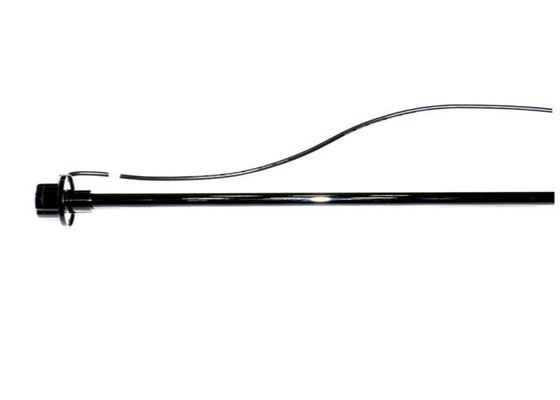

Sus304 Cuttable IP67 500mA CLS2 Resistance Fuel Sensor

Anti Hot Truck Gps Fuel Sensor Sus304 Cuttable Support 0-5V With Accuracy 99%

CLS2 Resistance Fuel Sensor With Accuracy 98% From 30cm To 80cm Used In Truck

HMS and HVS fuel level sensor is widely used in fuel, water, kerosene, chemical tanks and suitable for truck, generators/gen set,

bus and marine field. It has the function of level measurement and alarming. With the electromagnetic induction principle,

it can measure precisely, output signal stably and continuously. The sensor also has the characteristics of long using life,

anti-vibration and anti-corrosion.

Applied Area: Vehicle, ship, motorcycle oil tank’s oil height measurement ;oilcan, train, plane oil height measurement; petroleum, chemical, pharmacy, beverage etc. liquid height measurement etc. it is the most advanced replacer for common oil (liquid)height sensors

Applied Mode: used in vehicle/ship oil tank or water tank’s oil mass (liquid height)measurement, may order measurement accuracy according to demands, may equipped with the original needle dashboard, also may equipped with digital display dashboard. The output signals may be resistance signals (resistance value can be set by you) or voltage signals.

Detailed Product Description:

Main material: Stainless steel 304 <SUS316 can be customized>

Specification: 150~3000mm <the length can be customized>

Assembly way: --HMS Series: BSP 1-1/4 or BSP1-1/2 threads;

HMS series can be mounted in flanges FL-2’’, FL-3’’, HFL or inspection flange FLB-1.

-- HMS Series: SAE standard 5 holes flanges installation.

No matter where you purchase pressure sensor, we are glad to supply our technical support for you at your convenient time.

The equipment can be used cooperatively with GPS vehicle positioning terminal and other terminal to make vehicle positioning and fuel consumption management system.It can evaluate the usage of the vehicle and the driver's driving level,monitor gas up situation of vehicle,precise calculate hundred kilometers fuel consumption,completely eradicate the phenomenon of oil stolen,oil spilling,detouring,make extra money,private use of government vehicles,falsely making receive..

1.performance index

Examination area: 100~1000mm

resolution ratio: 0.1%

Measuring accuracy:0.1%

Maximal error of measure :1mm

heat-resistant :-40~150

Diameter Φ18mm

Output signal :4~20mA,0~5V, RS485, RS232, CAN bus

Voltage supply :DC7~42V

Rated supply :0.1W

Fixed type :Screw installation M20X1.5 OR Flange mounting

Pressure range :-0.1MPa ~ 0.1 MPa

ambient temperature -40~85℃

2.Instructions

2.1 definition of the output line

Interface output line use 6 core cable, connecting definition:

0~5V output [CA-201A]:

Black line connect ground wire

Red line connect positive power

White line 0~5V voltage signal output,connect voltage signal wire

Yellow line empty fuel tank use only

Green line full fuel tank use only

4~20 mA output [CA-201B]:

Black line connect ground wire

Red line connect positive power

White line 4~20mA ampere signal out put,connect ampere signal line

Yellow line empty fuel tank use only

Green line full fuel tank use only

RS232 output [CA-201C]:

Black line connect ground wire

Red line connect positive power

White line RXD input, connect car RS232 TXD

Blue line TXD output, connect car RS232 RXD

Yellow line empty fuel tank use only

Green line full fuel tank use only

RS485output mode(CA-201D)

Black line connect to CND

red line connect to VDD

white line connect to RS485 A

blue line connect to RS485 B

yellow line marking for empty fuel tank

green line marking for full fuel tank

2.2 Calibration

This sensor adopt high-speed MCU of CNC technology, adopting self-calibration

Calculation , and leaves out the complicated Manual calibration while using. in normal

circumstance, the sensor can directly be used in the measurement of the diesel, if need to calibration, you can use the three following ways to complete. (each can work)

1.self-calibration: put the sensor slowly into the The tested medium while power on, let the liquid get into the feed inlet slowly ,stoping when the liquid is overflew the vent hole of the sensor. and this operation accomplish the calibration of the sensor . In order to prevent the failure of the calibration process , please do this process for at least 2 times .( notice:This way is under the condition of powering on , outage restart will restore the factory Settings.In the condition of empty fuel tank,refueling to full, the sensor itself are also able to complete the self-calibration )

Manual calibration : at the time of empty fuel tank, put the yellow line short circuit with the ground wire( black line) , and then power on the sensor, operating for 60s or longer, after that , disconnect the back ground wire and the yellow line , and this operation could accomplish the calibration ( notice: Sensor already setted to 0 # diesel prior to shipment ,without Special Circumstances)

remote automatic calibration :if adopting RS232 or RS485 for data transmission, it can be accomplished the calibration by vehicle GPS location system sending orders. Sensor has two orders of calibration ,D1,D2. When the fuel tank empty , it will send D1, and when the fuel tank is full, it will send D2, and this operation could accomplish the remote calibration.

2.3 Installation Notes

Before installation, please check the attachment: Flange, rubber blanket,O-rings, and Whether the screw is consistent and complete

Trape the o-rings to the root of the sensor ( packed prior to shipment )

Daub the Oil-resistant sealant on the two side of the rubber pad, and aim flange plate to the tank flange hole,then fixed by screw,symmetrical tighten the strength in turn to make sure uniform stress and avoid oil spilling.

To finish the installation ,insert the sensor and use a wrench to tight.

connect the power cord, communication line, cable, ground wire according to the definition, and yellow line and green line need to trape one by one , preventing from the short circuit

Link the power of the sensor after checking the circuit

Installation position should be placed as near as possible to the center of the fuel tank, in order to reduce the influence of the oil level of tilt and the oil level of volatility while on the hill.

3.Notice

1.Only one signal can exist among RS232/ RS485/ 0-5V/ 4~20mA, and you can use either one of them. The trunk of RS485 can meet multiple sensors at the same time, but you should set the address of each sensor in advance. Address of each sensor must be unique, in case the trunk is locked. RS485 trunk is made of half-duplex chips, so when it reading data, you should set aside the corresponding time for the module. The reading speed cannot be too fast: when it reads continuously, the time interval between the two instructions cannot be less than five seconds.

2.For the signal transmission line, especially the one of RS232,communications circuits should not be too long, and should use the shielded wire.

3. For the sensors of the signal RS232/ RS485, when debugging the failure of communication, you can exchange the white line and the blue one and test again. If it works then, it is the connection error before. The operation is only for digital communications.

4. The power supply voltage of sensor cannot be more than the normal working voltage, and the power consumption of the sensor’s power supply cannot be less than the normal working power consumption.

5. The actual environment should conform to the requirements of the basic parameters of sensors, and shall not exceed the normal range, or it would damage the sensor, even cause other accidents.

6. On account of oil products, there are differences between the mediums of the calibration and use, users had better operate according to 2.2.2.

7. Do not remove sensors or damage it maliciously, or we do not guarantee it.

8.General factory accessories include Flange, rubber blanket, O-Rings, booklet of instruction, certificate of conformity. If you have special needs, please tell us in advance.

9.Guarantee period of the sensor is one year. All accessories including rubber blanket, O-Rings, are beyond the scope of “ threeguarantees ”.

Symptom of failure

1No-output /communication error

2The output value unchanged

3Measurement error of output value

4Output value floats up or down

remark
1 4~20mA output supply voltage DC20~28V,current is 4~20mA except communication output
2Check the tank oil level is float or not,if become regular after recharge,check the interference and
the power
3 it usually can be functional while executing the 2.2.2 process
4 it usually occur on 0~5V signal

3 service voltage abnormal
