Product Details:
Payment & Shipping Terms:
|
Working Voltage: | 9-75V | Application: | Car / Vehicle Etc |
---|---|---|---|
Network: | WCDMA 3G / 2G | Bands: | Full Frequency Band |
MOQ: | 10 Pcs | OEM OR NOT: | YES |
Function 1: | Low Energy Consumption | Function 2: | Acc Ignition Detection |
Function 3: | Cut Oil Or Circuit (relay Is Optional ) | Function 4: | SOS Alarm And Microphone Monitor The Sound (optional) |
Function 5: | Sleep Model And Shock Model | Model: | MTK6261 GPRS Model , MTK GPS Model |
High Light: | MTK6261 GPRS 3G Vehicle Tracker,WCDMA GPRS 3G Vehicle Tracker,900MHz 3g Gps Tracking Device |

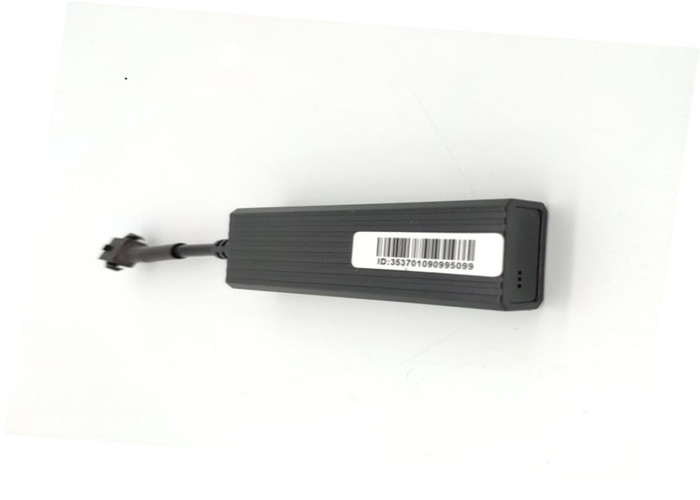

GPS GSM GPRS Tracker Quad Band Support 3G GSM Location Build-in Battery Tracking
Model Name, CA-V6 / TK004
GPS
protocol: GT06
G-sensor : BS250E power/fuel
input power: 9-100V
power IC: SL3036H
GSM module: MT6261
GPS module: Ublox
Feature:
1, Support all basic functions.
2, 4 Wires, support cut oil function.
3, Support SOS and Voice monitoring.
Main parameters:
1)The tracker use MT6276A solution.
2), Frequency band:
GSM:850/900/1800/1900/Quad band
3G: optional 900MHz+2100MHz, or 1900MHz+ 850MHz (choose one from the two)
GPRS: Class12, TCP/IP
3).Working Voltage:9-75V DC
4).Working current:≈22mA (12vDC)
5).Working current:≈12mA (24vDC)
6).GPS locating time:Cold start≈38s(Open sky)
Warm start≈32s
Hot start≈2s(Open sky)
7).GPS Precision:10m(2D RM)
8).Working temperature:-20℃~+70℃
9).Working humidity:20%~80%RH
10).Measurement:87(L)×43(W)×14(H)mm

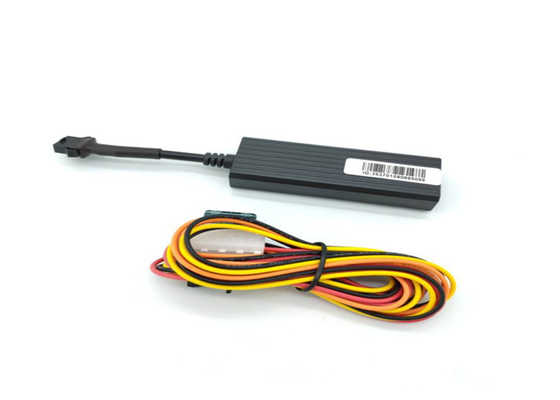

WCDMA 3G GPS Tracker Full Frequency Band Support 3G GPS Tracking Terminal
Main SMS COMMAND LIST
1)CENTER | ||
Text command | Parameter | Sample |
CENTER Add |
710#number# 711#number# |
710#13500135000# 711#13800138000# |
CENTER Del |
D01# D02# |
D01# D02# |
Command Description |
1)Center number can control the oil and power and resume factory settings 2) Center number can receive the call and text of vibration alarm and over speeding alarm. 3) SIM must display the income call number to control oil and power. 4) Only one number can be center number. 5) Change center number must resend the command. 6)Add new center number by CETNER,A, and delete by CENTER,D |
|
Command Feedback | Successful Setting:Add admin account 1 OK! |
2) CUT OFF OIL / RECOVERY OIL | ||
Text command | Parameter | Sample |
RELAYParameter1 | 222# | 222# cut off oil and power |
RELAYParameter2 | 333# | 333# recover oil and power |
Command Description |
1)RELAY control the start and closeness of the relay 2) Only the center number can operate. 3)the device only cut off the oil circuit on the condition of the driving speed below 20KM/H or in static state. 4)When send the command, the device will reply “please waiting “When the vehicle speed is over 20KM/H, the device will cut off the oil or the power when the speed below 20KM/H. |
|
Command Feedback |
Successful Setting:Fuel cut has already been completed OK! |
3) GET POSITION VIA SMS COMMAND | ||
Text command | Parameter | Sample |
WHERE | 666# | 666# |
Command Description | Check the location link of Google map | |
Command Feedback |
<Datetime:12-07-05 13:21:30> |
functions:
1)support ACC ignition checking ,
2)support Relay for cutting off power/fuel
3)built-in GPS antenna: 18*18*4 mm
4)built-in battery, Real time tracking.
5)Geo-fence, over speed alarm,
6) platform /APP supported
WCDMA 3G GPS Tracker Full Frequency Band Support 3G GPS Tracking Terminal
