Buildin-in Magnet Rechargeable Battery Real Time GPS GPRS GMS Tracker for container

Preface

Thank you for purchasing our products. This deliberately edited manual is to introduce the tracker
with the complete technical data and the instructions showing how to operate the device smoothly
and correctly. Make sure to read this manual carefully before using this product. Most problems
could be solved through the explanations and the troubleshooting tips. Once you finish reading it,
keep it handy for necessary reference. Please note that specification and information are subject to
changes without prior notice in this manual. Any change will be integrated in the latest release.
The manufacturer assumes no responsibility for any errors or omissions in this document.

Disclaimer:

• Read this user manual carefully please. When you start use this product, then you are deemed to have read this user’s manual.
• This Product used as assistant tool for Security only, can’t prevent all kinds of deliberately theft or malicious damage vehicles. For the safety of your assets, you still need keep necessary vigilance and security awareness after you installed this product. We do not bear responsibility to any loss except product itself. Thanks!

1. Product Introduction

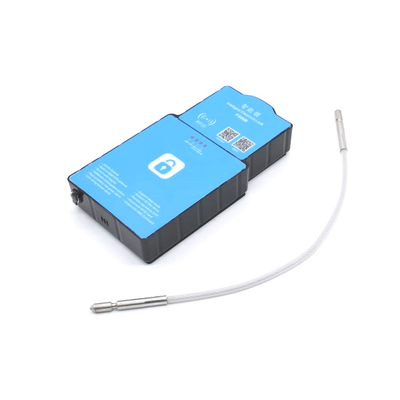

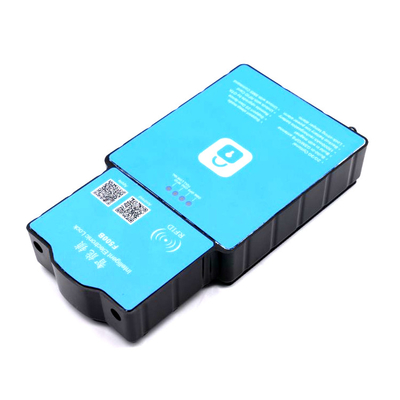

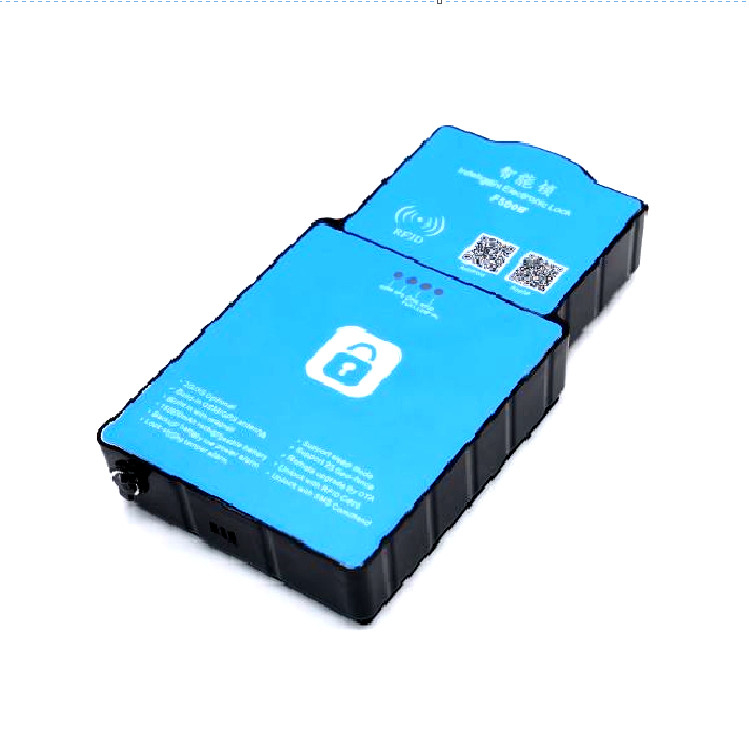

CA-P10 Lock tracker combined with positioning, monitor and observe, the main applies to container, trucks and other transportation object location and tracking services. CA-P10 lock tracker fully supports the GPRS network data transmission function, GPRS platform can be combined with software to make it more widely used in large-scale cluster monitoring, transportation management and many other fields.

Product Features:

• Backup battery low power alarm.
• Build-in GSM/GPS antenna.
• Support GPS real-time tracking(platform support).
• Support GPRS network data transmission.
• Lock ON/OFF alarm.
• Lock-string tamper alarm.
• Rechargeable battery.
• Support sleep mode.
• Remote upgrade by OTA.
• Build in with magnet.
• Unlock with RFID card(max support 10 RFID card).
• Unlock with SMS command(with unlock password).
• Support 25 Geo-fence.

Note:

• This product function based on GPRS network; need a SIM card which have GPRS data transmit and SMS functions.
• SIM card is not include in the packing list, please prepare SIM card before you use this device.
• Please only use the charger from the factory.

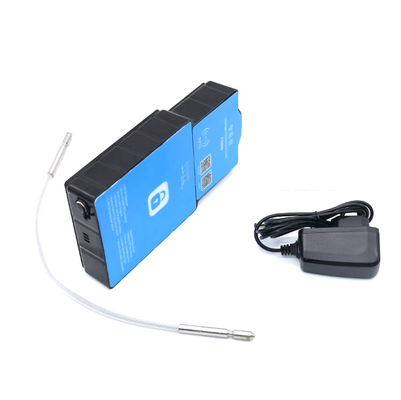

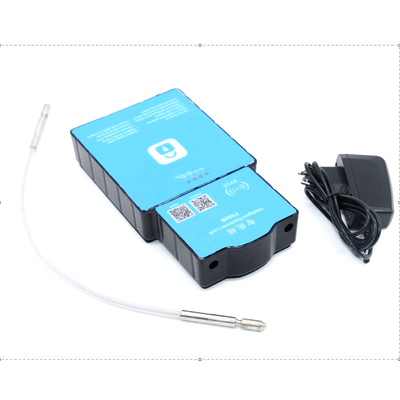

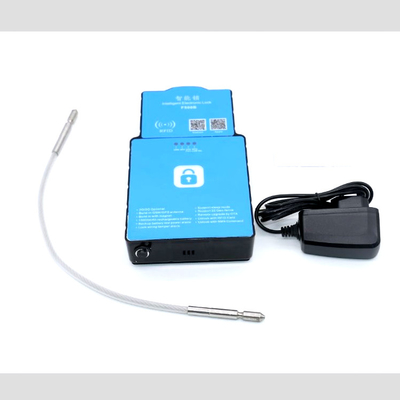

2. Packing List

3. Technical Parameters

4. Define of LED indicator

5. Device Installation

Before you start install the device, Please check the product you get with the packing list, if you have any problem please contact us or distributor in time.

5.1 Prepare works

•  lock tracker
• Local GPRS SIM card
• RFID card

5.2 SIM Card Installation

This device need install a SIM Card, which must have GPRS data transmission and SMS function. In default setting, this device will use around 5MB~20MB data flow, please select suitable package.

Note:

• Do not install SIM Card in opposite way.
• SIM Card must open GPRS data transmission function
• Confirm the SIM Card have enough balance inside.
• Test SIM card by cellphone to check if it can connect network
• Please do not remove or insert SIM Card without power off, to avoid the damage to SIM card and device

5.3 RFID No. White List

• Set by Tool “GPS Tracker Configuration Tool”.

• Set by command(Please check at command list for details).

5.4 Lock ON

Just insert the lock wire into the hole, the lock hole will detect wire by AUTO, after been detect will be lock on, and device will beep once.

5.5 Unlock

• Unlock with RFID card

Swipe the RFID card at RFID reader position for 1-3s, when you hear the beep sound, means unlocking, after the sound end, then you can pull the lock wire out;

• Unlock with SMS command

After you send the command, when you hear the beep sound, means unlocking, after the sound end, then you can pull the lock wire out.

6. Setting Commands (SMS)

To make the device work on GPRS mode together the control center software system, we have to set some parameters to make the device know where and how to connect the server.

The following parameters must be set before you use this device:

• Server IP and Port (No.1 in table)

Device must have a server to upload the data to; in default it is set to our server IP and Port, if you use your own server, tell us before you place an order. The setting command is No.1, for example: AS1234*269#1,59.188.20.77,5577,0#

(In that command,”59.188.20.77” is the IP, “5577” is the port, “0” is UDP and upload self-def2.)

• APN (No.3 in table)

Full name for APN is Access Point Name, which should be given when you buy a GPRS SIM Card. It is offered by GSM network supplier, like China Mobile public APN is CMNET.

It is consists of 3 parts: APN, APN user name, APN password. Some of the GSM operator do not have APN user name and APN password, just leave it blank.

• Device parameters checking (No.6 in table, Optional)

The following is a SMS command list, with it you can set or get information you need.

7. Serial command list
