Fuel Tank Level Sensor Fuel Monitoring System Prevent Diesel Theft Length Flexible

Product description:

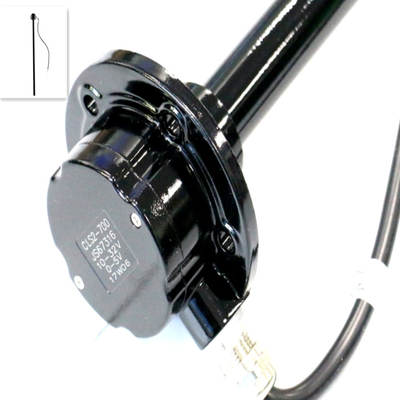

CLS2 Capacitor motor oil level sensor combined capacitor sensor and liquid level sensor.
The product not only contain the features of high precision measurement and maintenance-free, at the same time it doesn't influenced by temperature and medium.It can be automatically measuring error caused by different temperature or medium for precise compensation,achieving the purpose of accurate measurement.

This liquid level sensor is level measuring instrument,contain high resolution ratio and measurement accuracy.It is automatic calibration which does not need manual intervention,no temperature drift, and is not affected by medium change.In other words,regardless of the measured medium is water or gas or diesel, no matter how temperature changes, it can output signal accurate liquid level height at one sensor. Completely solve the problem of measure medium difficulty ,like ethanol and methanol,and the problem of measurement error caused by oil’s label and great temperature difference in different areas.

Technical features:


Interface output line use 6 core cable, connecting definition:

0~5V output [CLS2A]:

Black line connect ground wire Red line connect positive power

White line 0~5V voltage signal output,connect voltage signal wire Yellow line empty fuel tank use only
Green line full fuel tank use only


Fuel Tank Level Sensor Fuel Monitoring System Prevent Diesel Theft Length Flexible
The entire sensor machine doesn't contain any elasticity or moving parts.Impact resistance, maintenance-free, long service life, easy installation,can be installed in various occasions.Accurate measure for gasoline, diesel oil, hydraulic oil level and other various weak corrosive liquid level .

Interface output line use 6 core cable, connecting definition:
0~5V output [CLS2A]:
Black line connect ground wire Red line connect positive power
White line 0~5V voltage signal output,connect voltage signal wire Yellow line empty fuel tank use only
Green line full fuel tank use only

RS232 output [CLS2C]:

Black line connect ground wire Red line connect positive power

White line RXD input, connect car RS232 TXD Blue line TXD output, connect car RS232 RXD Yellow line empty fuel tank use only

Green line full fuel tank use only

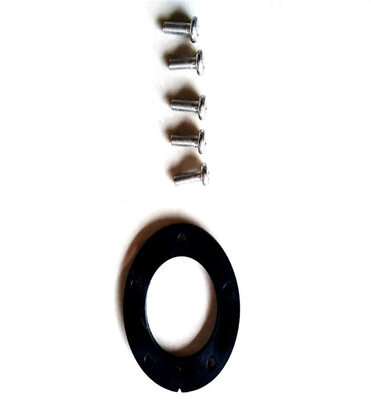

 Guarantee period of the sensor is one year. All accessories including rubber blanket, O-Rings, are beyond the scope of “ threeguarantees ”.

1.1Calibration

This sensor adopt high-speed MCU of CNC technology, adopting self-calibration Calculation , and leaves out the complicated Manual calibration while using. in normal

circumstance, the sensor can directly be used in the measurement of the diesel, if need to calibration, you can use the three following ways to complete. (each can work)

apply to adjust the length solution

Fuel Tank Level Sensor Fuel Monitoring System Prevent Diesel Theft Length Flexible
GPS Tracker Applications:

Other model

FAQ:

Do you have one GPS Tracker device that supports the fuel sensor?

Yes, all professional types of GPS trackers including V2E have the support of this type of fuel sensors.
