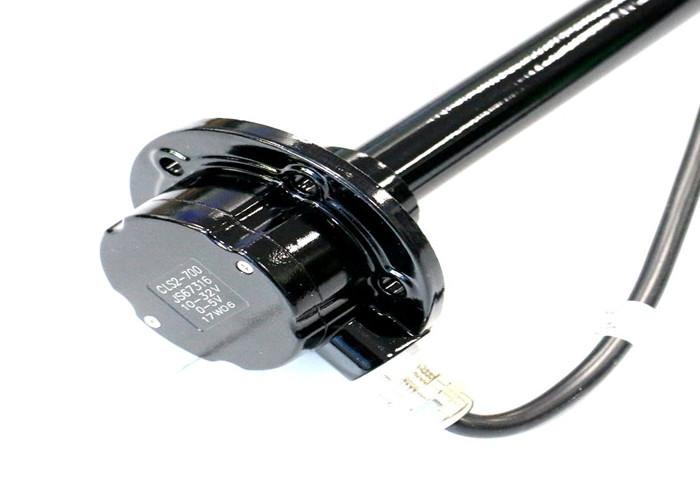

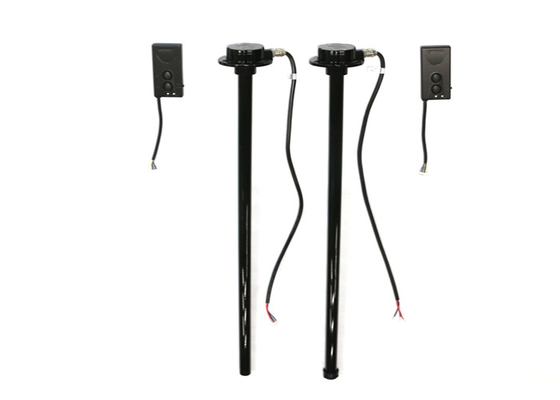

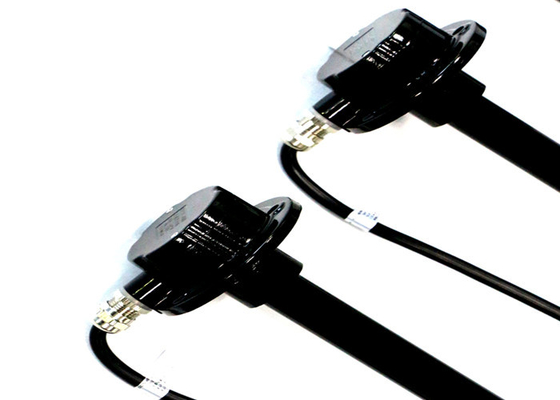

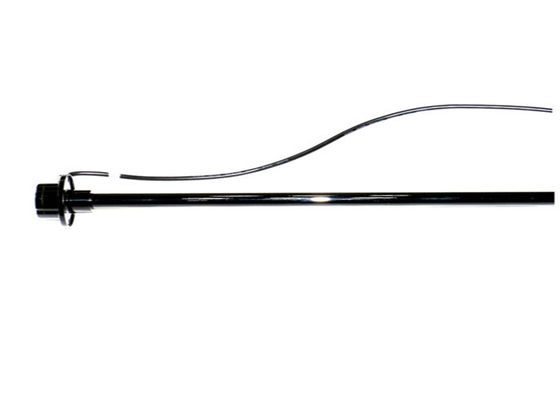

IP65 100-1000mm RS485 CLS2 Fuel Sensor For GPS Tracker
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | Capacitor Fuel Sensor CLS2 | Rated VOLTAGE: | 9-36V |
|---|---|---|---|
| Range: | 200 To 1500mm | Waterproof: | IP68 |
| Maximum Operating Current: | Less Than 15mA | Power Supply: | DC10 To 32V 5V |
| Ourtput: | 0.5-4.5 | Output Signal: | RS232 RS485 0 TO 5V |
| Color: | Black | GPS Tracker: | Support |
| Length: | 100-1000mm | Accuracy: | 99% |
| High Light: | 1000mm CLS2 Fuel Sensor,RS485 CLS2 Fuel Sensor,IP65 Capacitor Fuel Sensor CLS2 |
||
100-1000mm CLS2 Fuel Sensor For GPS Tracker Support 0 - 5V IP65 Waterproof IP68 Accuracy
| Item | Picture | Features | Price/quantity /USD | |
| CA-FR1 |  |
1. Resistance fuel sensor 2.accuracy= 97% 3.need to drill the hole on the tank 4. can't cut length 5. support 0-190Ω ,240-33Ω , 0-5V output 6.used in Diesel tank vehicles such as truck, bus,Mixer vehicles..etc | sample | 45 usd |
| bulk order | 35 usd | |||
| CLS2 | |
1.capacitive fuel sensor 2.accuracy= 99% 3. need to drill the hole on the tank 4. CLS2=Cut Length Sensor Vsersion2.0 5.support 0-5V output, RS232, RS485 port 6.used in Diesel tank vehicles such as truck, bus,Mixer vehicles..etc | sample | 60 usd |
| bulk order | 50 usd | |||
| TUB_10 | |
1.Ultrosonic fuel sensor 2.accuracy= 98% 3.No need to drill the hole on the tank 4. support 0-5V output,RS232 5. used in Petrol vehicles, gasonline cars/petrol cars | sample | 80 usd |
| bulk order | 70 usd | |||
Capacity Fuel Sensor
Parameters:
|
1. Working temperature: -40degrees to +80 degrees
2. Retardation time: 0.1second
3. Service life: 5000000times
4. Overall structure: Column type
5. Main body material: SUS304
6. Float material : Polyurethane 35*32mm ( suitable for diesel oil, petrol, water)
7. Flange size: Maximum outer circle 69mm
8. Installation type: Top loading type
9. Type of connection: Blue --ground wire, black ---signal output
10. Detection range: 15mm to 900mm
11. Pressure range: -0.1Mpa to 0.1MPa.
|
remark
1 4~20mA output supply voltage DC20~28V,current is 4~20mA except communication output
2Check the tank oil level is float or not,if become regular after recharge,check the interference and
the power
Fuel Sensor Application:
CLS2 fuel sensor can work with following GPS tracker
