Automatic Mixer Bus 0.1W RS232 20mA Tracker Fuel Sensor

High Precision Bus GPS Tracker Fuel Sensor truck Capacitive Automatic Calibration

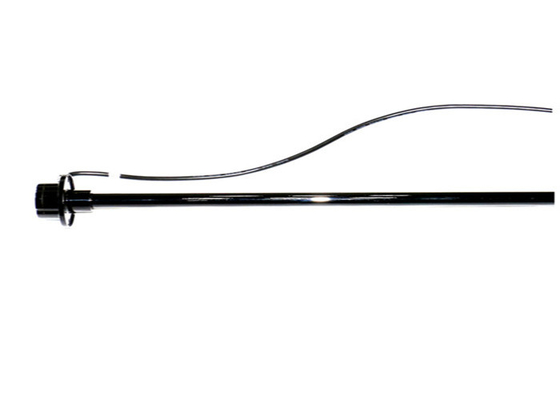

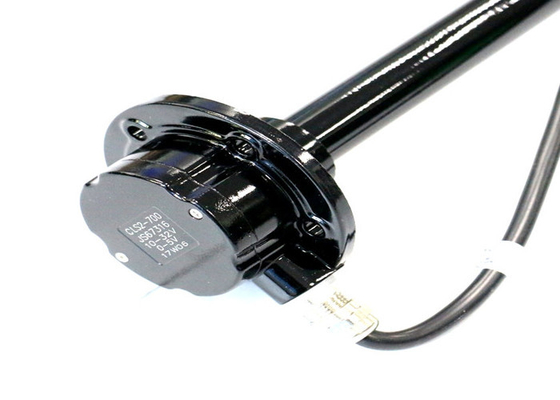

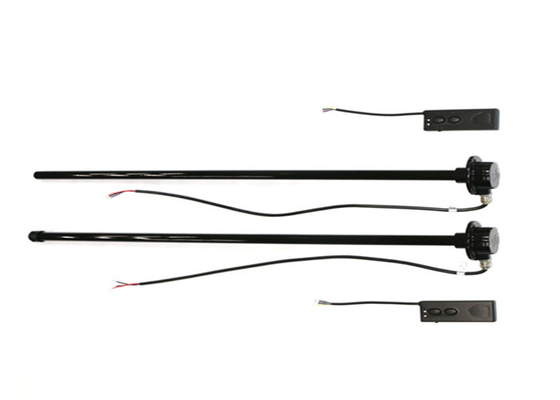

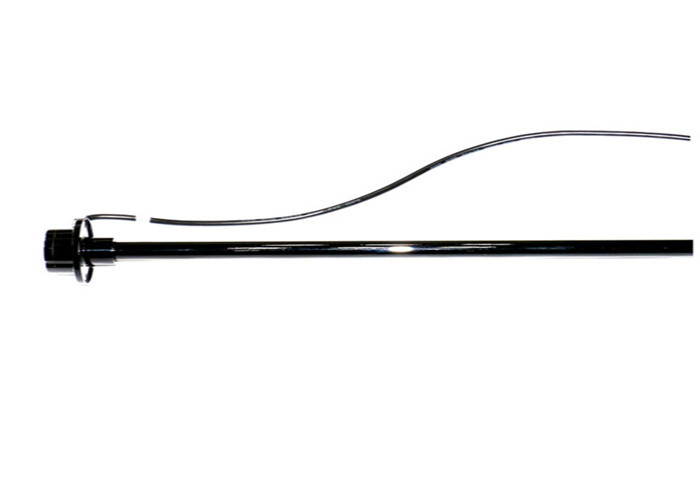

CLS2-700 Capacitive Fuel Sensor combined capacitor sensor and liquid level sensor. This Product

is not only contain the features of high precision measurement and maintenance-free.

At the same time it does not influence by temperature and medium. It can be automatically measuring

error caused by different temperature or medium for precise compensation, achieving the purpose of

accurate measurement.

This liquid level sensor is level measuring instrument, contain high resolution ratio and measurement

accuracy. It is automatic calibration which does not need manual intervention, no medium is water or gas or

diesel, no matter how temperature changes, it can output signal accurate liquid level height at one sensor.

Completely solve the problem of measure medium difficulty, like ethanol and methanol, and the problem

of measurement error caused by oil's label and great temperature difference in different areas.

Installation Notes:

Before installation,please check the attachment: Flange,rubber blanket,O-rings, and whether the screw

is consistent and complete.

Trape the o-rings to the root of the sensor (packed prior to shipment)

Daub the Oil-resistant sealant on the two side of the rubber pad, and aim flange plate to the tank flange

hole, then fixed by screw,symmetrical tighten the strength in turn to make sure uniform stress and avoid

oil spilling.

To finish the installation,insert the sensor and use a wrench to tight.

Connect the power cord, communication line, cable, ground wire according to the definition, and

yellow line and green line need to trape one by one, preventing from the short circuit.

Link the power of the sensor after checking the circuit.

Installation position should be placed as near as possible to the center of the fuel tank,in order to

reduce the influence of the oil level of tilt and the oil level of volatility while on the hill.

performance index

Installation Picture:
