Cuttable IP66 RS232 0.1W GPS Fuel Sensor For Tank Oil

I'm Online Chat Now
Certification
China SHENZHEN YITUOWULIAN SYSTEM CO.,LTD certification
China SHENZHEN YITUOWULIAN SYSTEM CO.,LTD certification
We are very satisfied with your CA-V1 and CA-V1, CA-V6W for professional customers, CA-V6W is a very good product on the motorcycle,thanks!

—— Touya_ra

now we already used your company CA-V6 more than 2000Pcs, thanks for your company best support, we will expend this business in all of the Kenya

—— Nancy Saruni

your device CA-V1 is very good for our customer project, it is so proffesional , we can use in refrigerator car which can test the temperature ,thanks

—— Rajesmay

Cuttable IP66 RS232 0.1W GPS Fuel Sensor For Tank Oil

Cuttable IP66 RS232 0.1W GPS Fuel Sensor For Tank Oil
Cuttable IP66 RS232 0.1W GPS Fuel Sensor For Tank Oil Cuttable IP66 RS232 0.1W GPS Fuel Sensor For Tank Oil Cuttable IP66 RS232 0.1W GPS Fuel Sensor For Tank Oil

Large Image :  Cuttable IP66 RS232 0.1W GPS Fuel Sensor For Tank Oil Get Best Price

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Caxtrack
Certification: CE/ROHS/FCC/SGS
Model Number: CA-F5
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Neutral or customized
Delivery Time: 1-10 business days after payment cleared
Payment Terms: Western Union, T/T, L/C, PayPal
Supply Ability: 100,000pcs per month
Detailed Product Description
15CM Cable Tie: Used To Fix The Extention Wire Abrasive Paper: Used To Clean The Bottom Of The Tank
Maximum Power Consumption: 0.4W/12VDC Inbreaking Protection: IP66
Working Humidity: 5%~90%. Ction Range:: 15~900mml
Explore A Heat Resistance:: -100~ 150 °C Output Signal: : 0 ~ 5 V Or 4 ~ 20 MA Or RS232
Length: Cuttable To Fit Wire: GPS Connetor
High Light:

0.1W GPS Fuel Sensor

,

RS232 GPS Fuel Sensor

,

IP66 Fuel Tank Level Sensor

Fuel Level Sensor For Tank Oil Level Measurement IP66 Automatic Calibration



Product description:

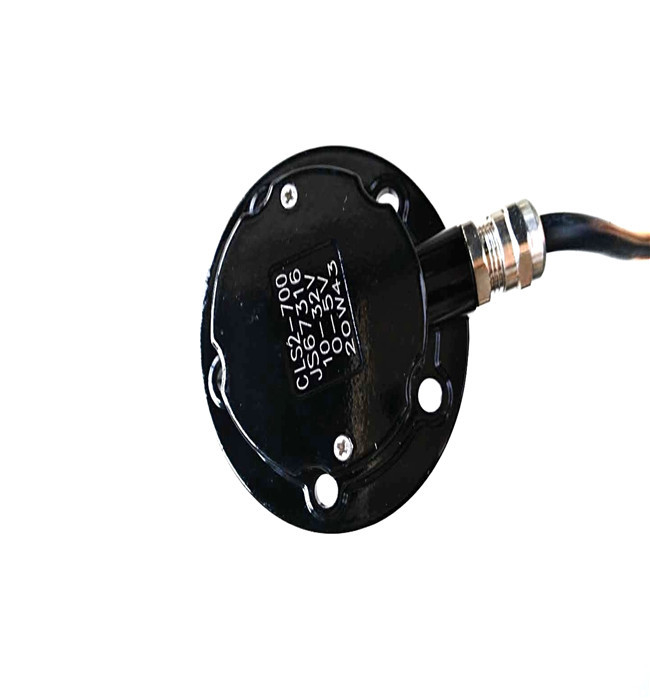

CLS2 Capacitor motor oil level sensor combined capacitor sensor and liquid level sensor.

The product not only contain the features of high precision measurement and maintenance-free, at the same time it doesn't influenced by temperature and medium.It can be automatically measuring error caused by different temperature or medium for precise compensation,achieving the purpose of accurate measurement.

The entire sensor machine doesn't contain any elasticity or moving parts.Impact resistance, maintenance-free, long service life, easy installation,can be installed in various occasions.Accurate measure for gasoline, diesel oil, hydraulic oil level and other various weak corrosive liquid level .



This liquid level sensor is level measuring instrument,contain high resolution ratio and measurement accuracy.It is automatic calibration which does not need manual intervention,no temperature drift, and is not affected by medium change.In other words,regardless of the measured medium is water or gas or diesel, no matter how temperature changes, it can output signal accurate liquid level height at one sensor. Completely solve the problem of measure medium difficulty ,like ethanol and methanol,and the problem of measurement error caused by oil’s label and great temperature difference in different areas.

Cuttable IP66 RS232 0.1W GPS Fuel Sensor For Tank Oil 0



Technical features:



Examination area: 100~1000mm
Resolution ratio: 0.10%
Measuring accuracy: 0.10%
The maximal error of measure: 1mm
Heat-resistant: -40~150
Diameter: Φ18mm
Output signal: 4~20mA, 0~5V, RS485, RS232, CAN bus
Voltage supply: DC7~42V
Rated supply: 0.1W

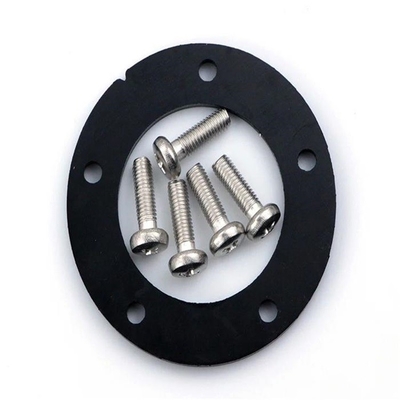

Fixed type: Screw installation M20X1.5 OR Flange mounting
Pressure range: -0.1MPa ~ 0.1 Mpa
Ambient temperature: -40~85℃





Fuel Level Sensor For Tank Oil Level Measurement IP66 Automatic Calibration

The entire sensor machine doesn't contain any elasticity or moving parts.Impact resistance, maintenance-free, long service life, easy installation,can be installed in various occasions.Accurate measure for gasoline, diesel oil, hydraulic oil level and other various weak corrosive liquid level .



cause analysis

1 Open circuit of the power or voltage too low Sensor fault

Wrong connection of the lines and wires 2 service voltage abnormal

external interference Sensor jammed Sensor fault

  1. service voltage abnormal external interference Sensor jammed autoadaptation uncomplete Sensor fault
  2. oil level flow

service voltage abnormal external interference Sensor fault

 Cuttable IP66 RS232 0.1W GPS Fuel Sensor For Tank Oil 1Cuttable IP66 RS232 0.1W GPS Fuel Sensor For Tank Oil 2

Instruction



definition of the output line

Interface output line use 6 core cable, connecting definition:

0~5V output [CLS2A]:

Black line connect ground wire Red line connect positive power

White line 0~5V voltage signal output,connect voltage signal wire Yellow line empty fuel tank use only

Green line full fuel tank use only

RS232 output [CLS2C]
Black line connect ground wire
Red line connect positive power
White line RXD input, connect car RS232 TXD
Blue line TXD output, connect car RS232 RXD
Yellow line empty fuel tank use only
Green line full fuel tank use only





1.1Calibration

This sensor adopt high-speed MCU of CNC technology, adopting self-calibration Calculation , and leaves out the complicated Manual calibration while using in normal.

circumstance, the sensor can directly be used in the measurement of the diesel, if need to calibration, you can use the three following ways to complete. (each can work)


Cuttable IP66 RS232 0.1W GPS Fuel Sensor For Tank Oil 3
Cuttable IP66 RS232 0.1W GPS Fuel Sensor For Tank Oil 4

Fuel Level Sensor For Tank Oil Level Measurement IP66 Automatic Calibration

GPS Tracker Applications:

Cuttable IP66 RS232 0.1W GPS Fuel Sensor For Tank Oil 5


Cuttable IP66 RS232 0.1W GPS Fuel Sensor For Tank Oil 6



Other model of fuel sensor(ultrosonic fuel sensor)



Ultrasonic oil level sensor is the oil quantity monitoring equipment designed for management personnel of enterprise motorcade. It can prevent gasoline theft by drivers, optimize transportation cost, the driver’s driving action and assist statistical decision, etc. The sensor uses ultrasonic probe to detect the oil level height and carries out smart processing for height signal of oil quantity through built-in program of the main body. Then it sends the oil quantity information to the system platform through GPS to generate the oil quantity report after analysis. The sensor supports serial port and analog output and can connect with GPS of most brands/Beidou all-in-one machine. Therefore, the sensor can be connected with the backstage monitoring system easily.

The products adopt non-contact measurement ultrasonic wave sensor technology developed independently by our company and first created domestically and are widely used in fuel consumption monitoring projects for vehicles and sold overseas.

Cuttable IP66 RS232 0.1W GPS Fuel Sensor For Tank Oil 7

Cuttable IP66 RS232 0.1W GPS Fuel Sensor For Tank Oil 8




Cuttable IP66 RS232 0.1W GPS Fuel Sensor For Tank Oil 9


FAQ:

Do you have one GPS Tracker device that supports the fuel sensor?

Yes, all professional types of GPS trackers including V2E have the support of this type of fuel sensors.

How can I buy it?

We accept T/T, Western Union, and Paypal after payment cleared. then we will send goods to you.

What is your WhatsApp?

My WhatsApp is +8618673367060
