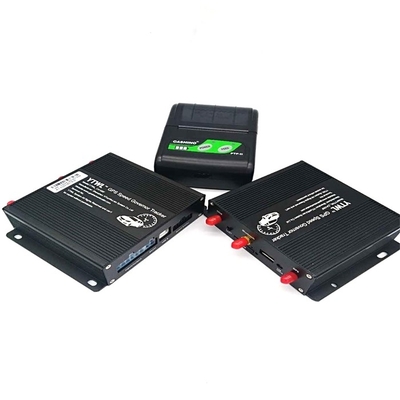

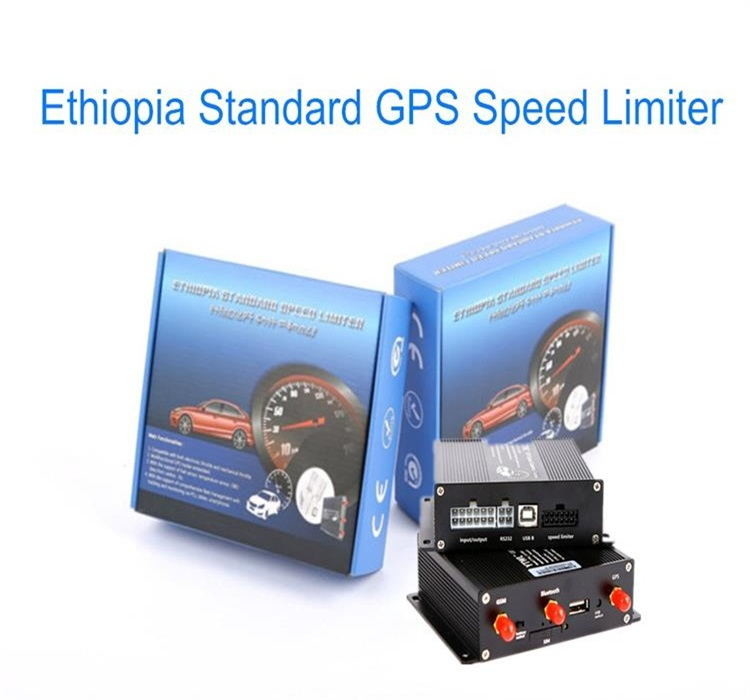

YTWL Ethiopia 800Mhz 40KM/H Gps Speed Limiter GSM For Trailer

Ethiopia ISO Speed Limiter For Rent Car/Taxi/Truck/Trailer Speed Control Device

Product Function:

2. Application Field:


Fixed Speed Control
Customized fixed maximum top speed limit that increases the safety and fuel economy of your fleet.

Reverse Speed Control
Limits a vehicle's top speed in reverse. Limiting reverse top speed increases safety during a statistically high-risk category of operation.

Acceleration Control
Controls the rate at which the vehicle is able to accelerate. Inhibiting aggressive driving behaviors, increasing safety, and greatly improving fuel economy.

Upgradeable to ISA
Upgrade your VMS from fixed top speed limiting to variable top speed limiting at any time with our optional SpeedIQ kit. The upgrade offers even goverride Mode
Configurable overrides by a variety of input methods. This capability is especially useful for Emergency Services and other who require access to full speed and acceleration at times.

Ethiopia ISO Speed Limiter For Rent Car/Taxi/Truck/Trailer Speed Control Device

3. Technical Parameter:

Ethiopia ISO Speed Limiter For Rent Car/Taxi/Truck/Trailer Speed Control Device

3. Including

4.5.2 How to connect the relay

Relay have 4 lines:

87A and 30PIN are respectively connected to the two ends of the cut oil pump line

86 connects 12V or 24V power line in series

85PIN connects to the white line of the GPS speed limiter.

Note: Control the speed of the speed limiter with above way, the delay of the speed limit will be relatively large. For example, if the speed limit is set to 40km/h, the car can also run up to 50km/h during acceleration. So, find the car pulse speed line and calibrate the pulse speed, the delay will be much smaller.

For vehicles with mechanical throttle, if want to limit the speed without delay, need connect a solenoid valve and use a relay to control the solenoid valve to achieve the purpose of real-time speed limit.

Solenoid valve picture:

3.5.3 Installation method:

In principle, it is the same as installing a relay, but it is necessary to cut off the oil pipe of the oil pump, and then both ends of the oil pipe are connected to the two ends of the solenoid valve. In this way, when the vehicle with a mechanical throttle exceeds the speed limit value, it will disconnect the oil circuit When it is lower than the speed limit value, the oil circuit will be restored.

3.6 Yellow line 4 of speed limiter:

After the vehicle is stolen, send command to cut off the fuel of the car remotely, command is: cutoil*123456, and refuel command is: supplyoil*123456

Note: For this function, you must connect the relay to yellow line 4 of speed limiter.

Following lines are indispensable in installation:

6: Brown line

8: Orange line, the line of the buzzer

9: Gray line, pick up the pulse line of the original car, connect the pulse line speed limiter, the speed limit function will not have too much delay, use GPS signal speed limit, there will be a delay of about 2 seconds

10: ACC line

11: Power ground

12: Positive power supply

Other product

gps tracker

Fuel lever sensor

Pet gps tracker

5. ADD GPS device to the platform

  About platform

1. Load the GPS platform: www.gps-go.com

User:xxxx password:123456

Note: xxxx is the platform account, need to contact with salesman to get this account name and password

For APP, search gps-go in google store or download from this QR:

2. The platform functions and report

3. Track : you can see the real-time location of the vehicle

4. GEO-Fence : If a vehicle enters or leaves this Geo-fence, an alert message will be received on the platform

Technical specifications for Goods

· Speed Limiter Device with Integrated GPS: As per standard set by Ethiopian Standard Agency Standard Road Vehicle-GPS integrated Speed limiter Devices Requirements

· To provide Warranty for two years for any problem that arise due to the device internal problem but this doesn’t include for damage due to external force , extreme heat, fire or voltage of electricity or when the devise is opened by any other person other than the company’s technician

· Speed Limit Equipment competency Verification Certificate is approved by the Ethiopian Road Authority to supply and install Speed Limiter with integrated GPS system.

· Committed to comply with Human rights and labour issues (e.g. fundamental principles and rights at work, occupational health and safety, fairly traded goods, etc)
