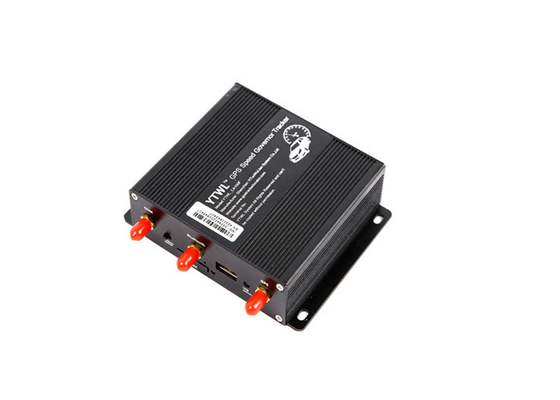

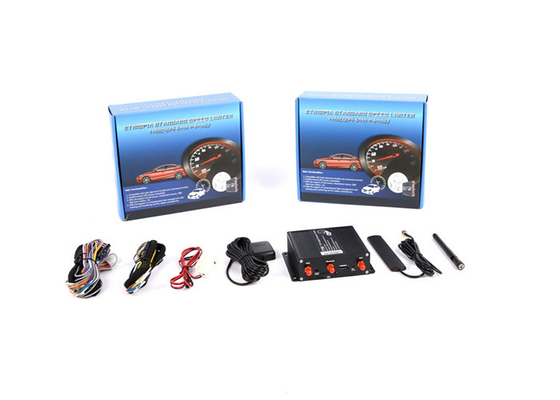

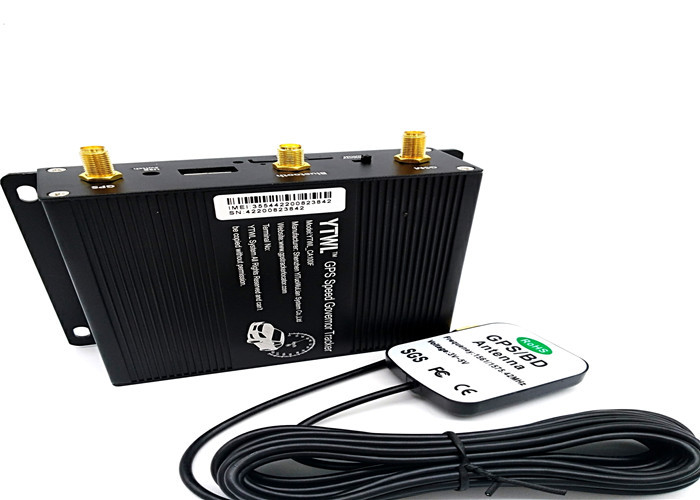

GSM/GPRS System 40mA 1900Mhz 120KM/H Gps Speed Limiter

Ethiopia Standard CE/ISO Gps Speed Limiter/Speed Governor GSM/GPRS System

1.Product Description

Technical Parameter:

Ethiopia has provisionally agreed new rules that state speed limiters will become mandatory for all vehicles sold throughout the country.

ES ISO 7637-1, Road vehicles - Electrical disturbances from conduction and coupling -
Part 1: Definitions and general considerations
ES ISO 7637-2, Road vehicles - Electrical disturbances from conduction and coupling -
Part 2: Electrical transient conduction along supply lines only.

2. Application Field:

1. Please comply with your local laws and regulations to use our GPS tracking devices and protect user’s privacy, our GPS tracker are used for personal/pet/vehicle/belonging/assets security tracking only.
2. To protect your rights and interests, please don’t leak your GPS IMEI # and password to anyone, and remember to modify the password after GPS tracker online.
3. Due to the GPS tracker GSM GPRS communication with your local telecom operators, we are not responsible for the GPS communication delay.

Nowadays, we are rearching and developing the devices as a fleet management tool. With the function real-time tracking, Geo-fence, and data recorded, the speed limiters are widely adapted by some government like Kenya, Nigeria and also some fleet teams. For the safety, the school buses and buses team should be installed the devices properly.

Also about the forklift speed limiter, it's a great tool to reduce the accidents and discipline the forklift team. With the lower prices but good quality control, the devices will save you a lot of costs in the very short time. For OEM/ODM to customize the functions you like, you can also contact us.

Ethiopia Standard CE/ISO Gps Speed Limiter/Speed Governor GSM/GPRS System

Application Field:

1. Vehicle Commanding and Dispatching System;

2. Heavy Construction Vehicles Tracking Device;

3. Dangerous goods transportation;

4. Passenger Car Management;

5. Logistics vehicle management.

6. Oil Tanker Monitoring and Management

features of GPS Speed Limiter

GPS Speed Limiter. User can setup top speed to limit vehicle speed either by SMS or computer based tool.

Geo fence based Speed Limit. The device support 3 fences to setup different speed limit per fences.

USB flash data downloaded. Vehicle travelling data could be retrieved by using a computer or a USB flash or a wireless Bluetooth printer.

Data could be stored for at least 72 working hours for future reference, including date, time, speed, car plate number, owner name, fitting center, installer name, installed date, longitude, latitude, etc.

1. The install steps:

3.1 Find the vehicle accelerator pedal line harness at first, then find the two signal lines from the six lines with multi-meter test.

There are six lines in the accelerator pedal interface, two power lines, two ground lines, and two signal lines. Start the vehicle, step on the accelerator pedal, let the vehicle in idle state, then the signal line voltage value will change, thus you can find the signal lines.

Please see the picture below

3.2 Cut the two signal lines, and then connect <10brown line+9yellow line> and <4blue line+3white line> to the signal lines respectively.

Please note that as shown in the figure following, 10brown and 4 blue line are connected to the part close to the ECU, 9 yellow and 3 white are connected close to the accelerator pedal.

Bluetooth printer:

Printer power light--Blue light if it is steady light indicates Bluetooth connection is normal, if blue light is off, Bluetooth is not connected

5. ADD GPS device to the platform

  About platform

1. Load the GPS platform: www.gps-go.com

User:xxxx password:123456

Note: xxxx is the platform account, need to contact with salesman to get this account name and password

For APP, search gps-go in google store or download from this QR:

2. The platform functions and report
